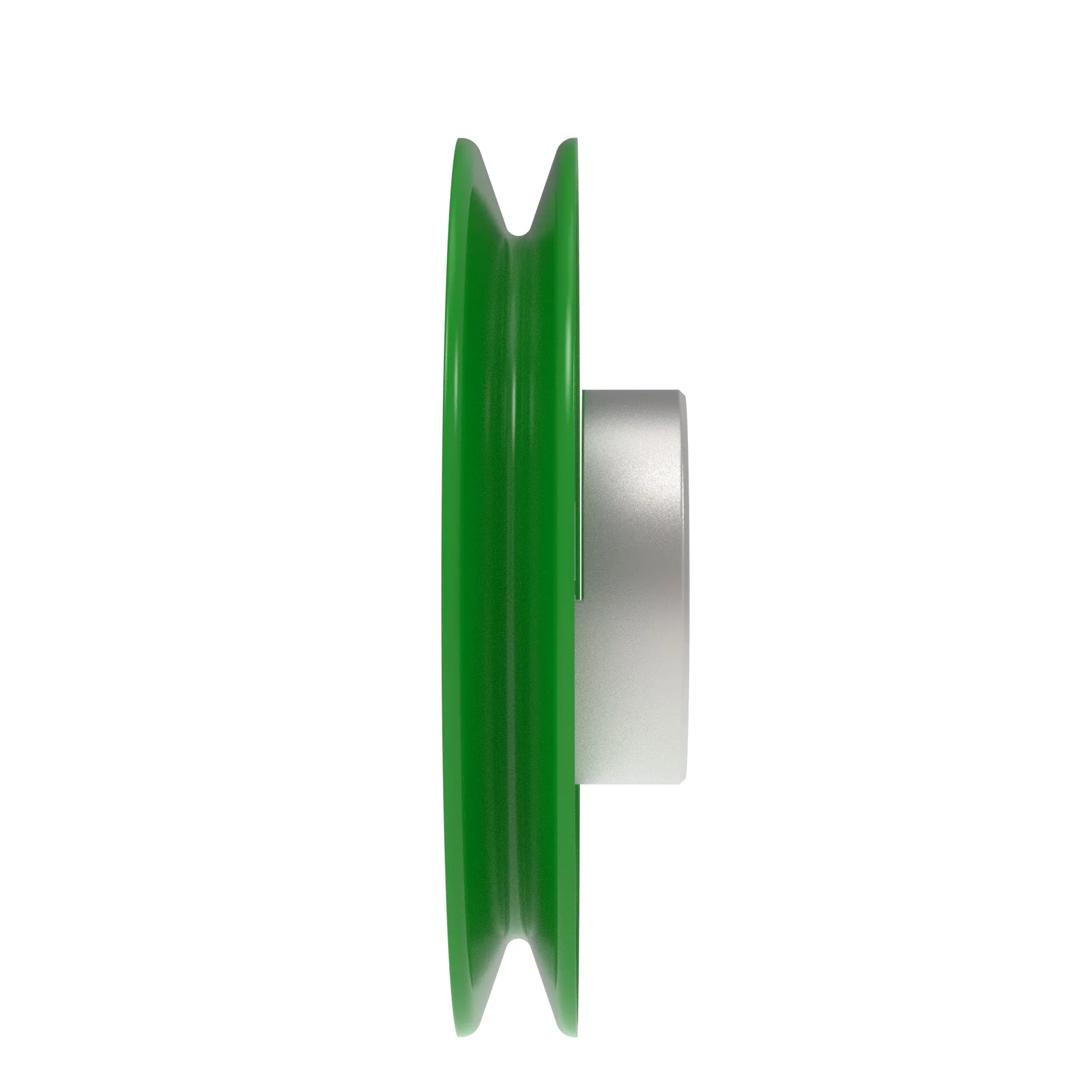

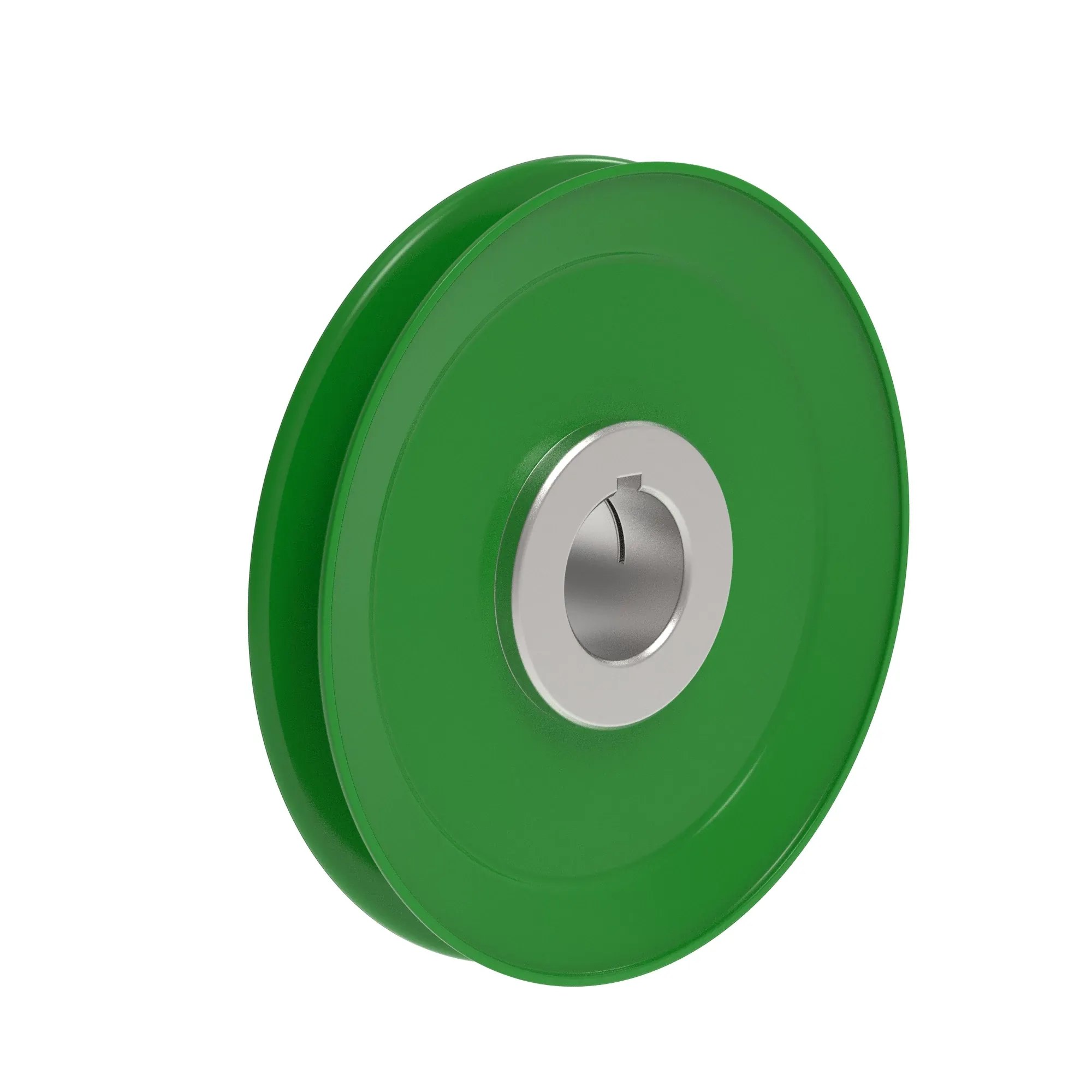

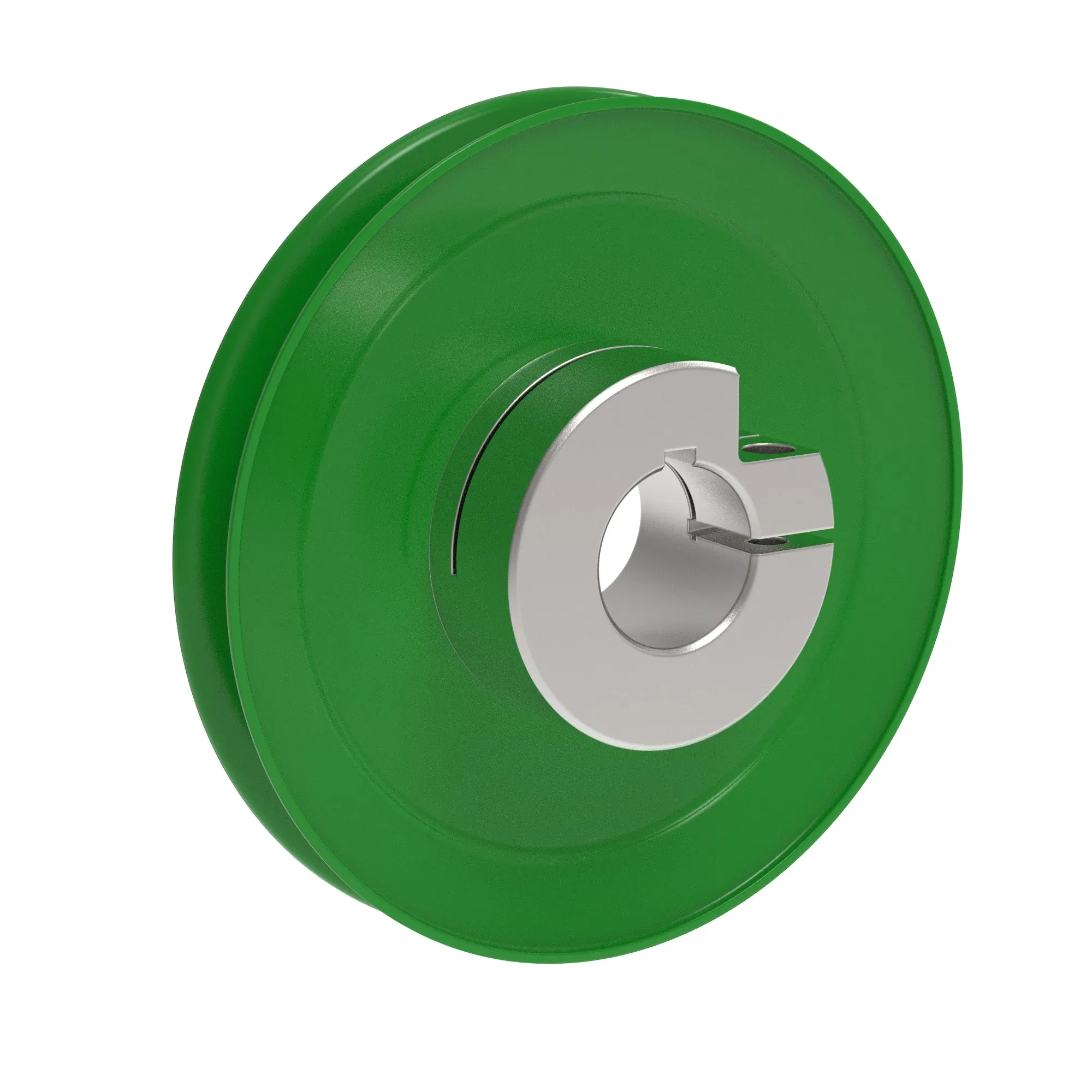

AXE46428: Vacuum Fan Drive Pulley

Part Number: AXE46428

Parts Tier: Original

John Deere vacuum fan drive pulley transmits rotational motion to support reliable power transfer within belt-driven systems
Grooved rim on this pulley helps ensure secure belt seating for consistent engagement during operation
Guidance of the belt path and tension management by this pulley aid integration into compatible drive assemblies
Standard hub design allows this pulley to be installed or replaced efficiently within machinery systems
Steel construction provides resistance to wear, helping this pulley maintain performance through repeated use

Product Dimensions

Weight

2.23 lb

Height

6 in

Length

1.5 in

Specifications

Groove Width

12.446 mm

Effective Diameter

145 mm

Bore Size

29.89 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

S7 600
S7 700
S7 800
S7 850
S7 900
S650
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
T6 500
T6 600
T6 700
T6 800
T6 PRECISION UPGRADES
