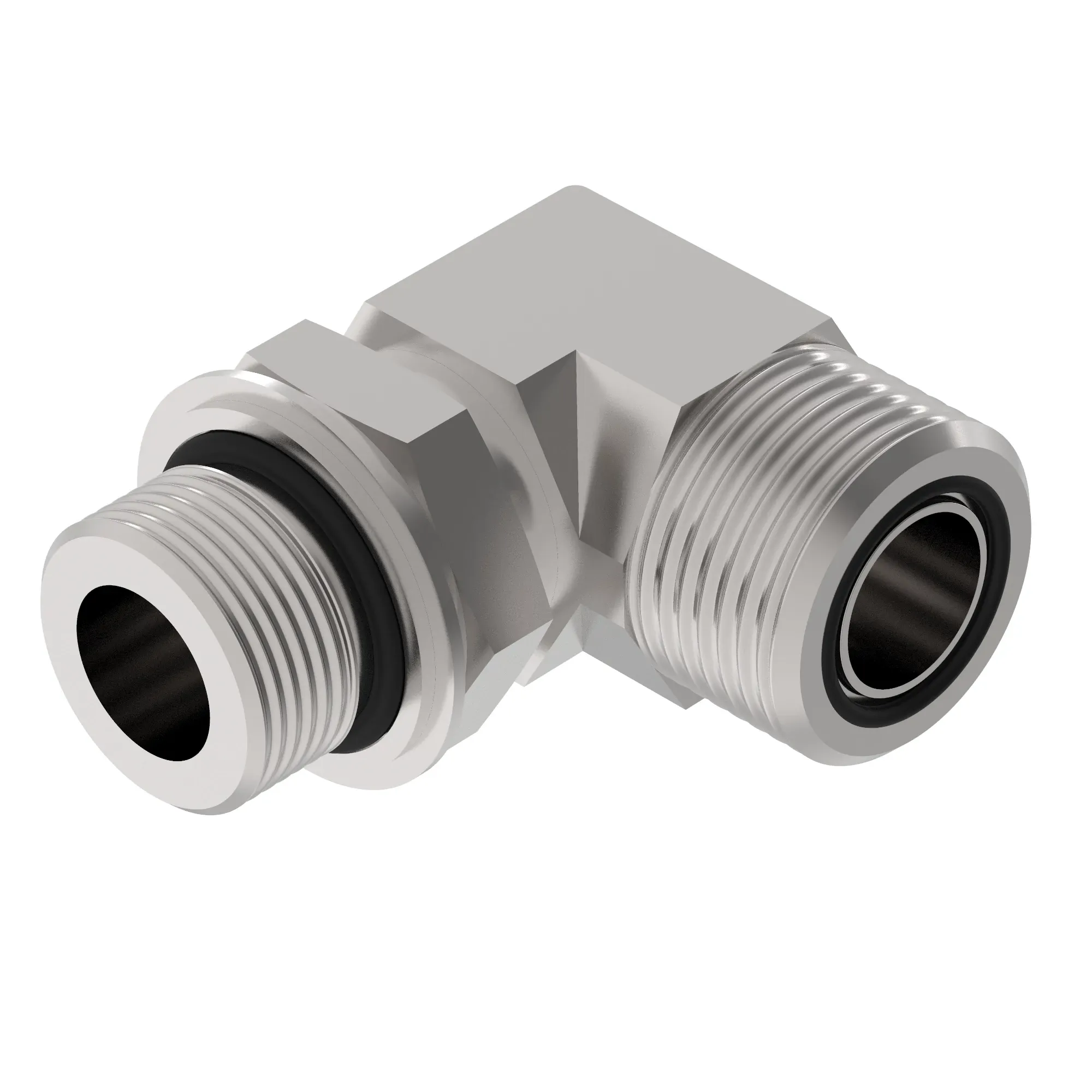

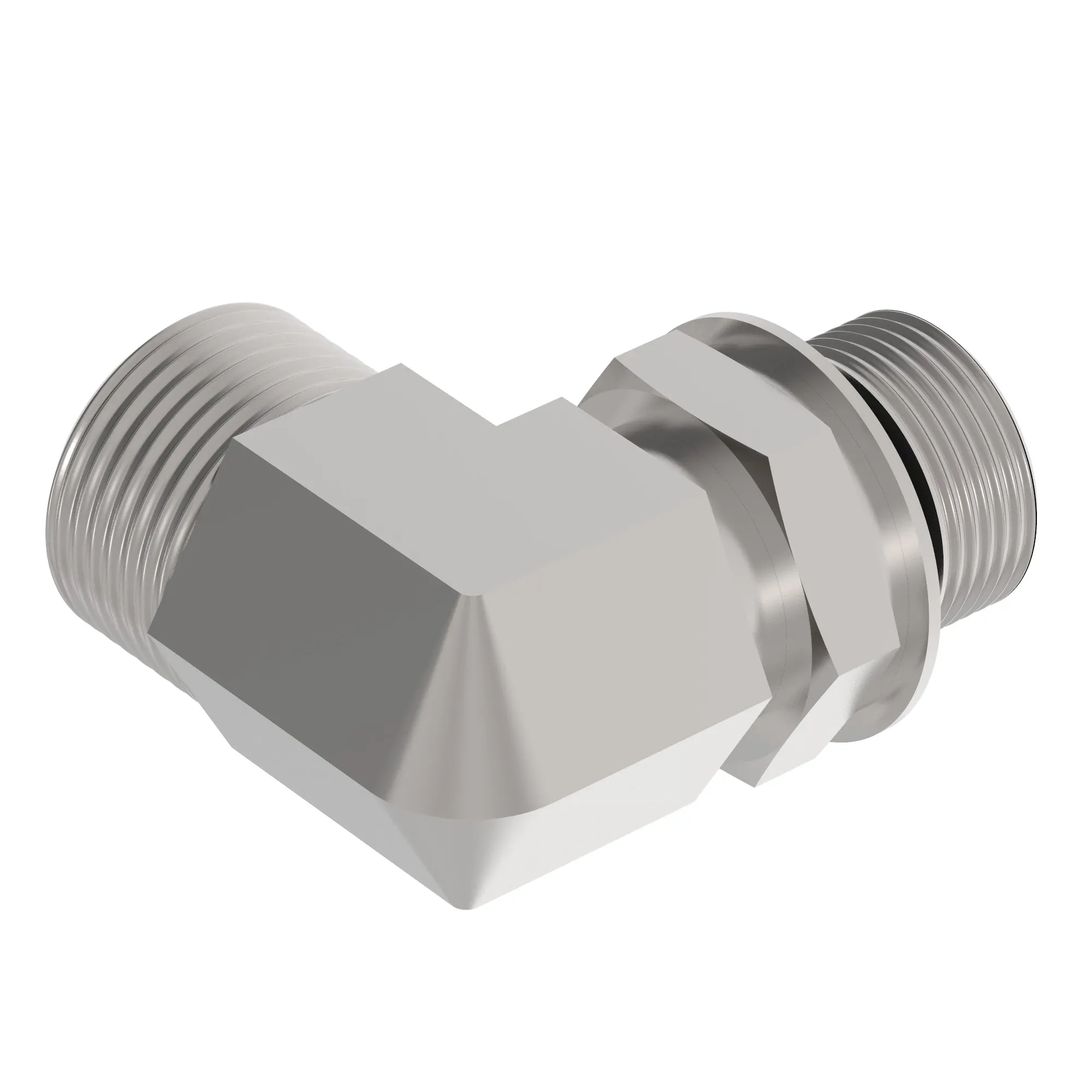

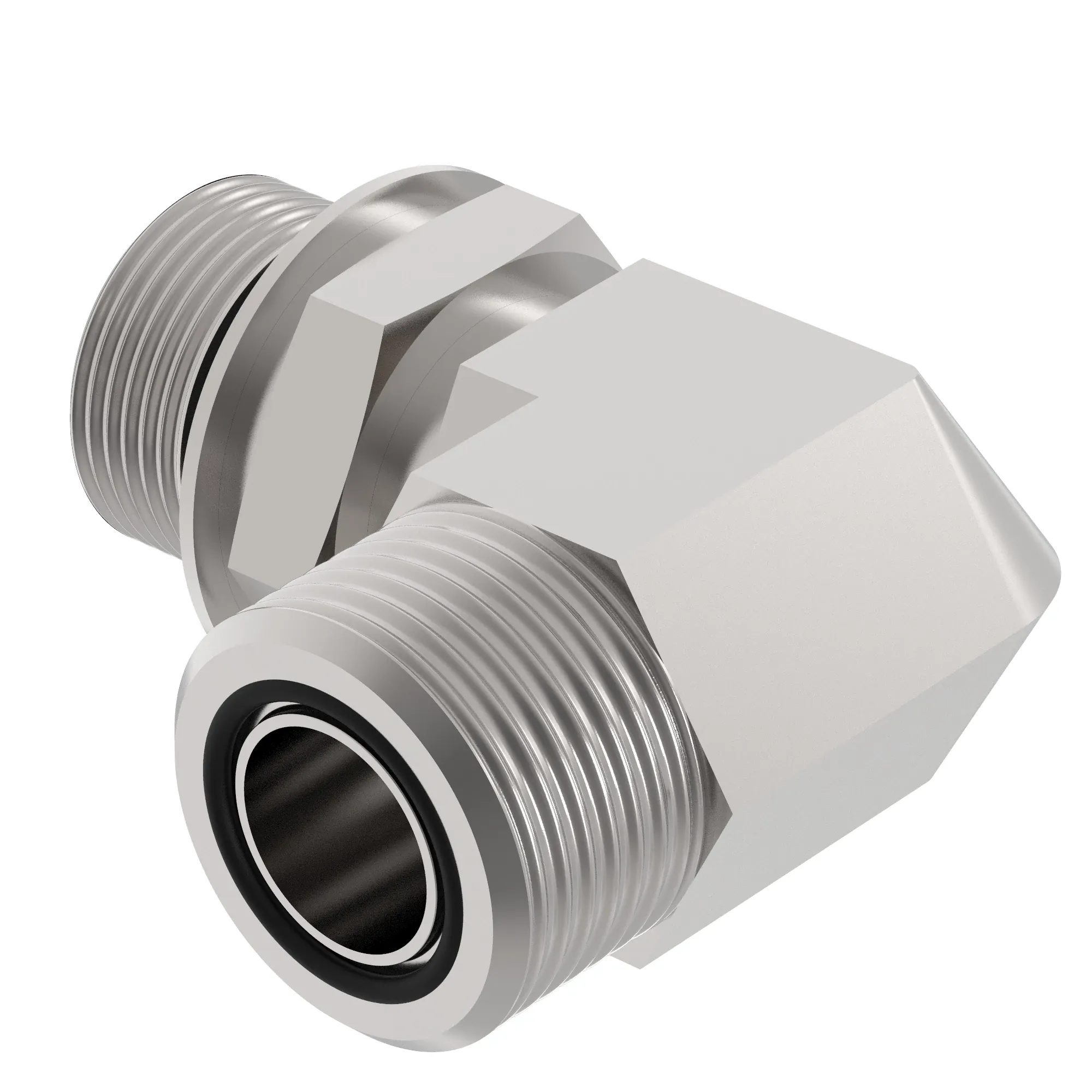

AXE45158: 90 Degree Adjustable Stud Elbow Adapter Fitting

Part Number: AXE45158

Parts Tier: Original

Adapter fitting designed to connect hydraulic components seamlessly
Features a metric port thread of 26 mm and a tube outer diameter of 19.05 mm (3/4 in) for versatile hydraulic applications
Includes a thread size of 30.18 mm (1.19 in) and overall lengths of 49 mm (1.93 in) and 38 mm (1 1/2 in) for precise fit and function
Made from high-quality general material assembly for durability and reliability
Finished with a zinc coating to resist corrosion and extend product life

Product Dimensions

Weight

0.73 lb

Height

1.3 in

Width

2.4 in

Length

2.6 in

Specifications

Tube/Hose Outer Diameter (OD)

19.05 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

CH570 TRACK
CH570 WHEEL
CH750 TRACK
CH750 WHEEL
CH950 TRACK
CH960 TRACK
S4 300
S4 400
S5 500
S7 600
S7 700
S430
S440
S540
S550
S650
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
T5 400
T5 500
T5 600
T5 700
T5 PRECISION UPGRADES
T6 500
T6 600
T6 700
T6 800
T6 PRECISION UPGRADES
T550
T560
T660
T670
W540
W550
W650
W660
