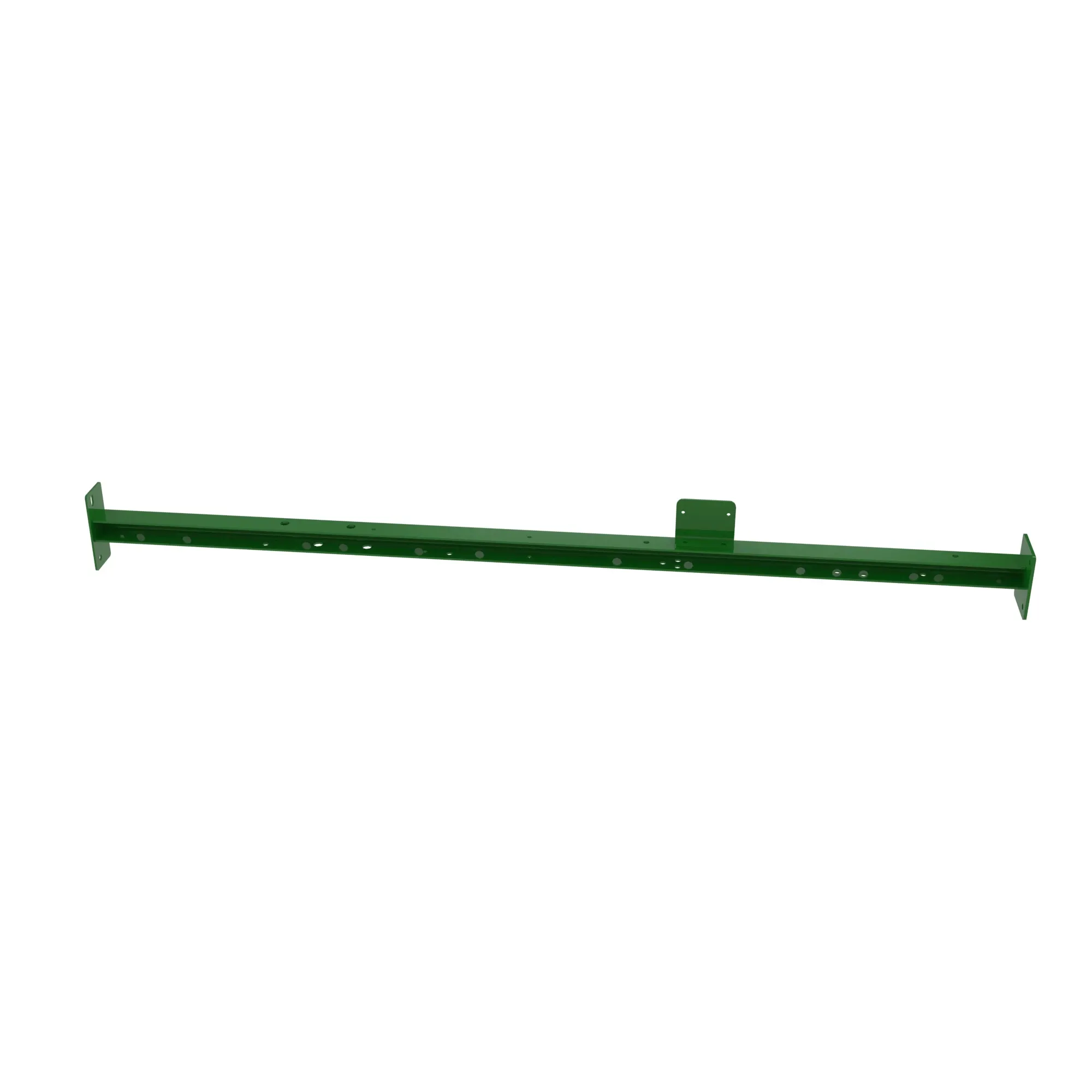

AXE43836: H-Frame

Part Number: AXE43836

Parts Tier: Original

John Deere Frame provides structural support for the H-Frame, helping maintain proper component placement
Secures connected components in place so the H-Frame functions with connected assemblies as intended for the intended equipment configuration
Constructed for demanding use, the H-Frame supports connected components through extended operation
Enhances equipment uptime by maintaining stable placement of connected components in the H-Frame

Product Dimensions

Weight

9.21 lb

Height

3.1 in

Width

5.6 in

Length

53.6 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

S650
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
