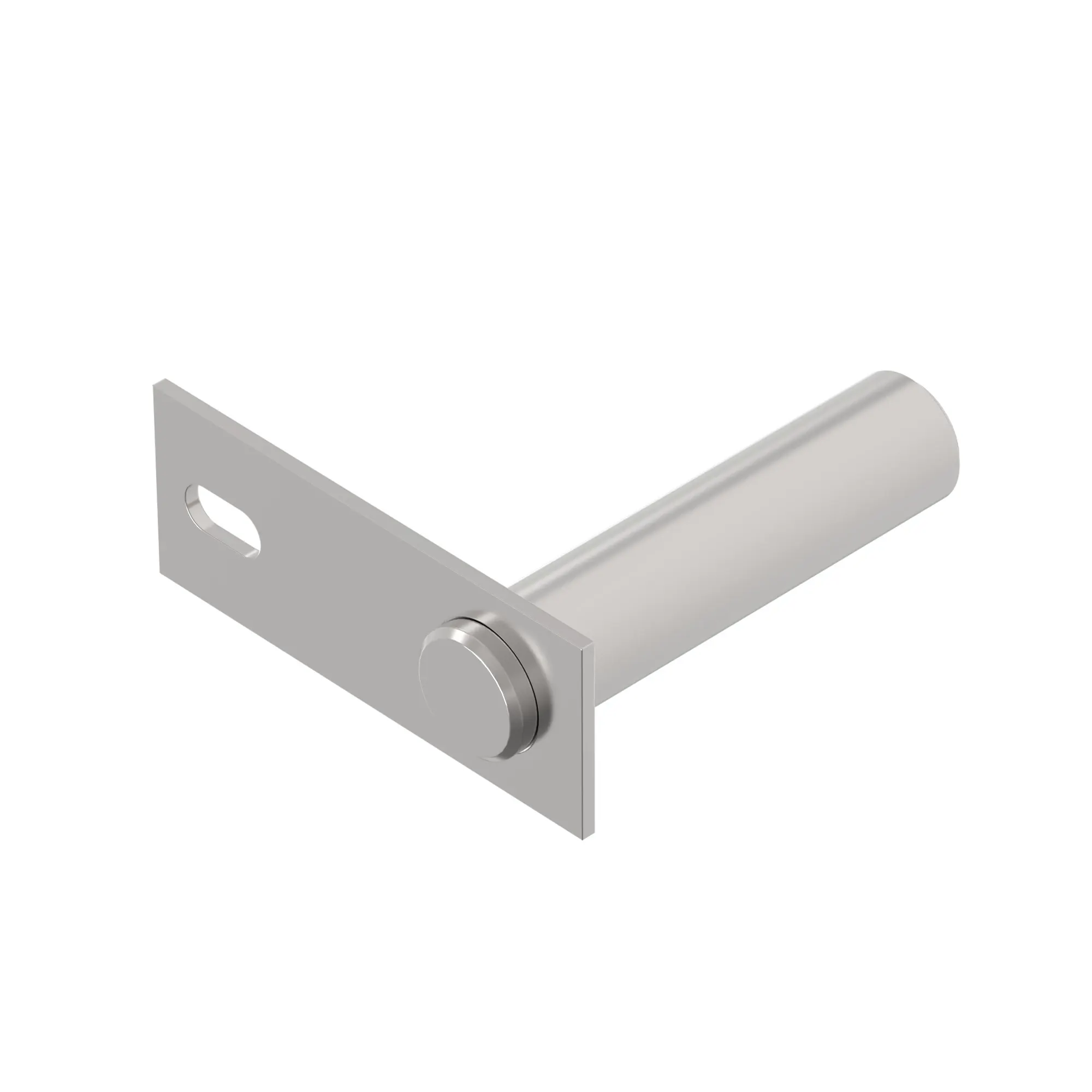

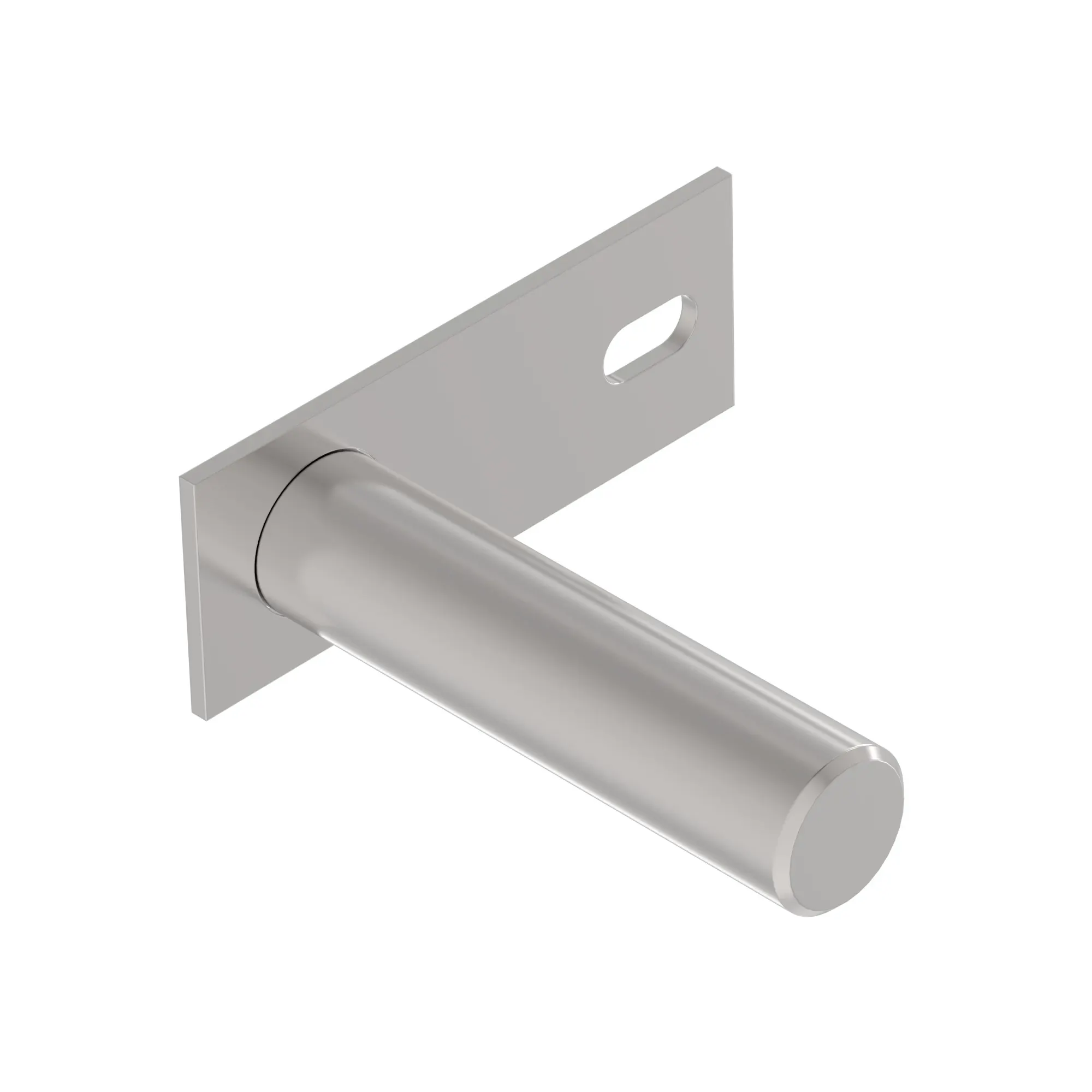

AXE11838: Bolt-On Pivot Pin

Part Number: AXE11838

Parts Tier: Original

Durable pin designed for securing and connecting components in various machinery applications
Key specifications: 100 mm length, 25 mm pin diameter, ideal for precise and robust connections
Additional specs: 65 mm location, 9.50 mm size, 3 mm thickness for enhanced stability
Made from high quality general steel for reliable performance and longevity
Zinc finish provides excellent corrosion resistance and durability

Product Dimensions

Weight

1.102 lb

Height

1.7 in

Width

4.2 in

Length

4.4 in

Specifications

Length

100 mm

Body Diameter

25 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

9670
9880 STS
C670
S7 700
S7 800
S7 850
S7 900
S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S770
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
T5 400
T5 500
T5 600
T5 700
T5 PRECISION UPGRADES
T6 600
T6 700
T6 800
T6 PRECISION UPGRADES
T550
T560
T660
T670
W540
W550
W650
W660
