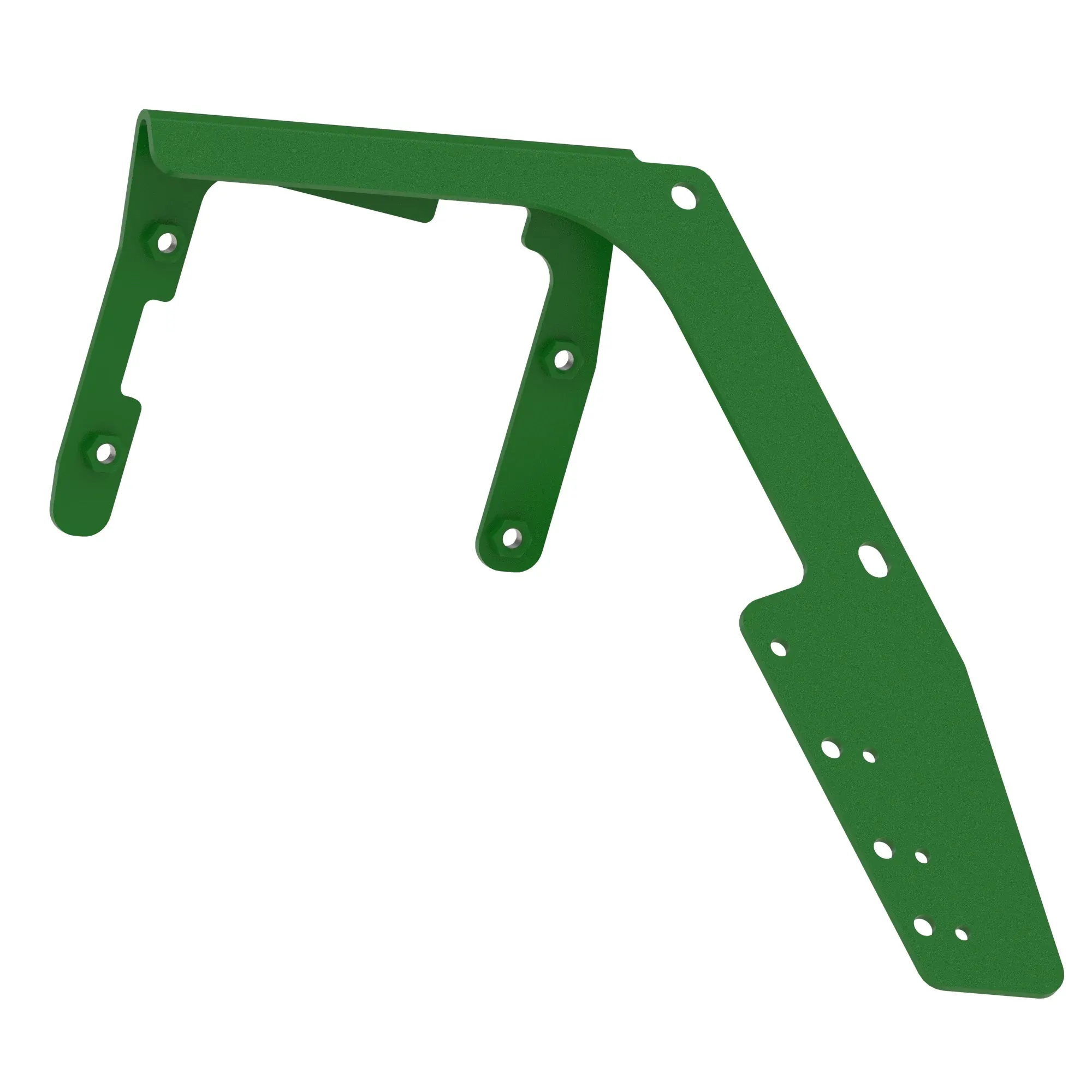

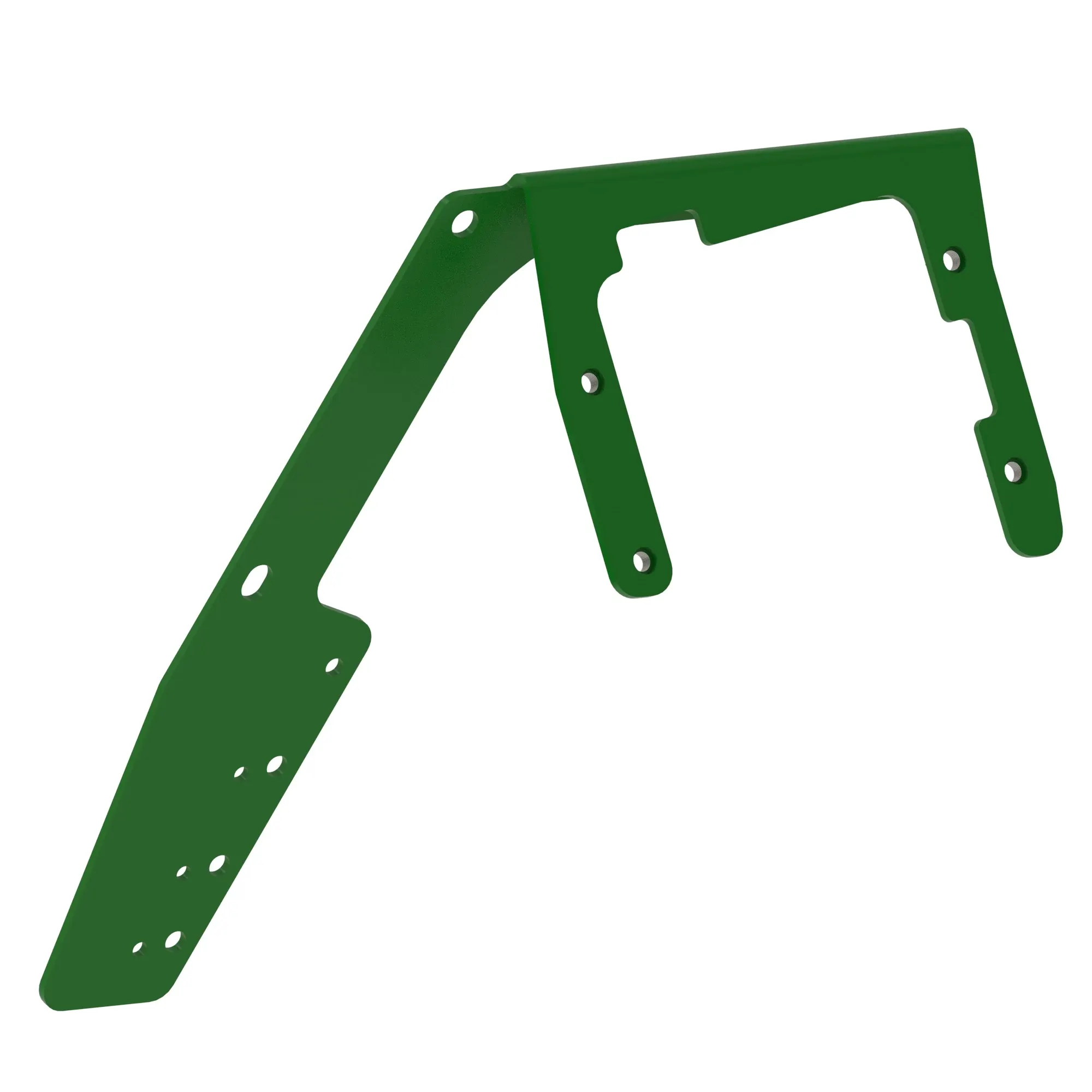

Name: AXE101716: Bracket
Brand: John Deere

Product Dimensions

Weight

1.202 lb

Height

3.3 in

Width

7.4 in

Length

15 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

540R
550R
CH750 TRACK
CH750 WHEEL
CH770 TRACK
CH950 TRACK
CH960 TRACK
CP550
CP570
CP770
CS770
F8 100
F8 200
F8 300
F8 400
F8 500
F8 600
F9 500
F9 600
F9 700
F9 900
F9 1000
S5 500
S7 600
S7 700
S7 800
S7 850
S7 900
S760 PRECISION UPGRADES
S770 PRECISION UPGRADES
S780 PRECISION UPGRADES
S790 PRECISION UPGRADES
T5 400
T5 500
T5 600
T5 700
T6 500
T6 600
T6 700
T6 800
T6 PRECISION UPGRADES
W200M
W235M
W235R
W260M
W260R
X9 1000
X9 1000 PRECISION UPGRADES
X9 1100
X9 1100 PRECISION UPGRADES
