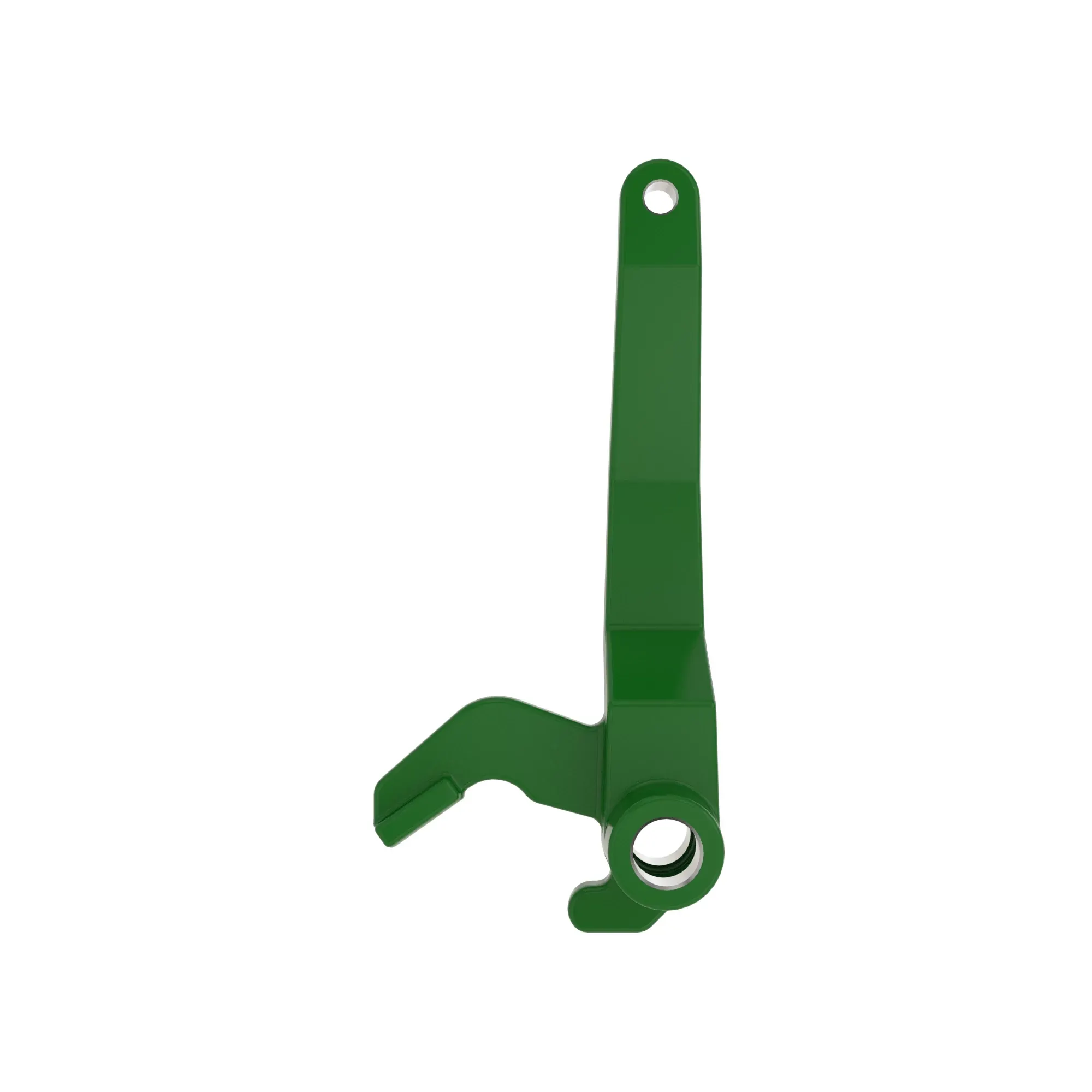

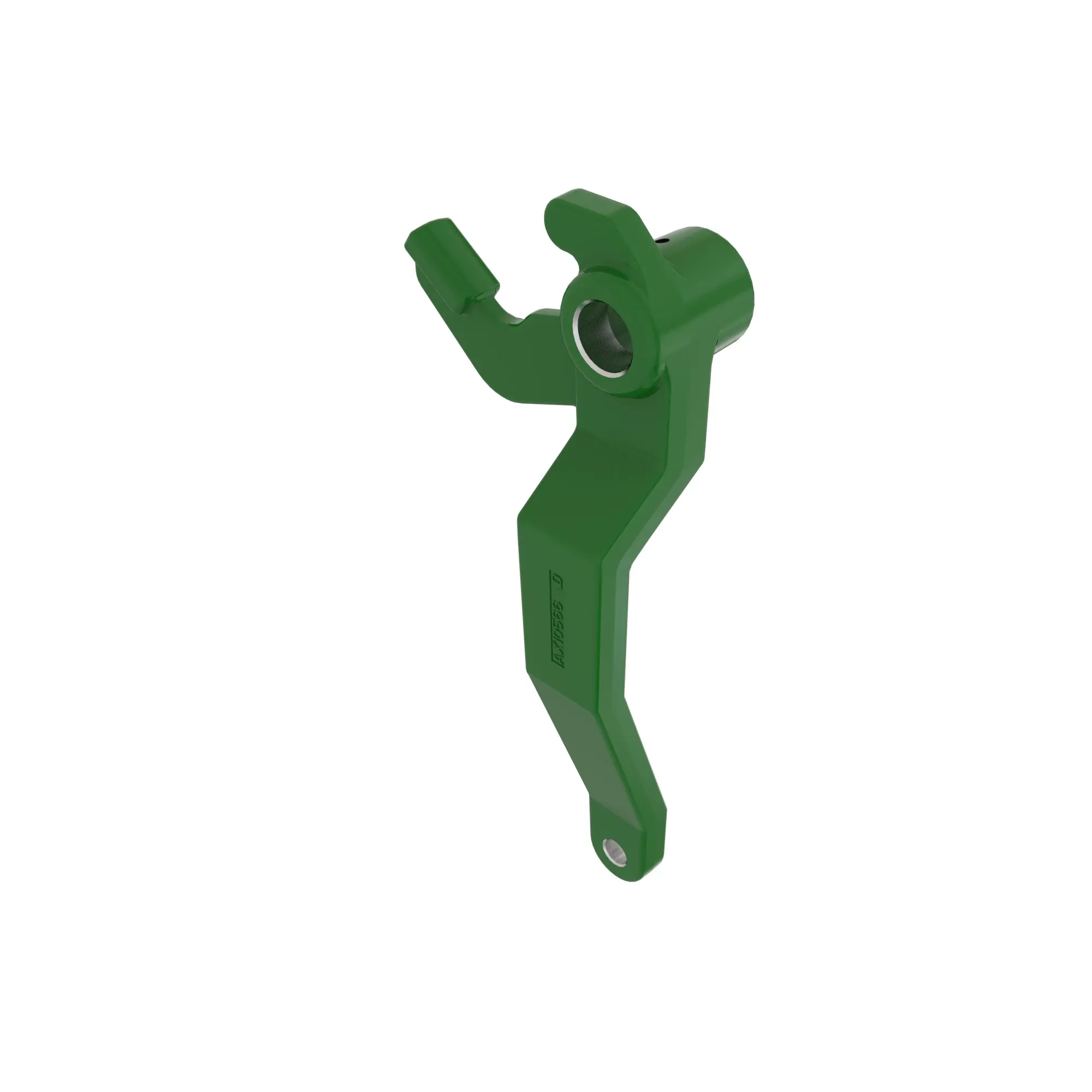

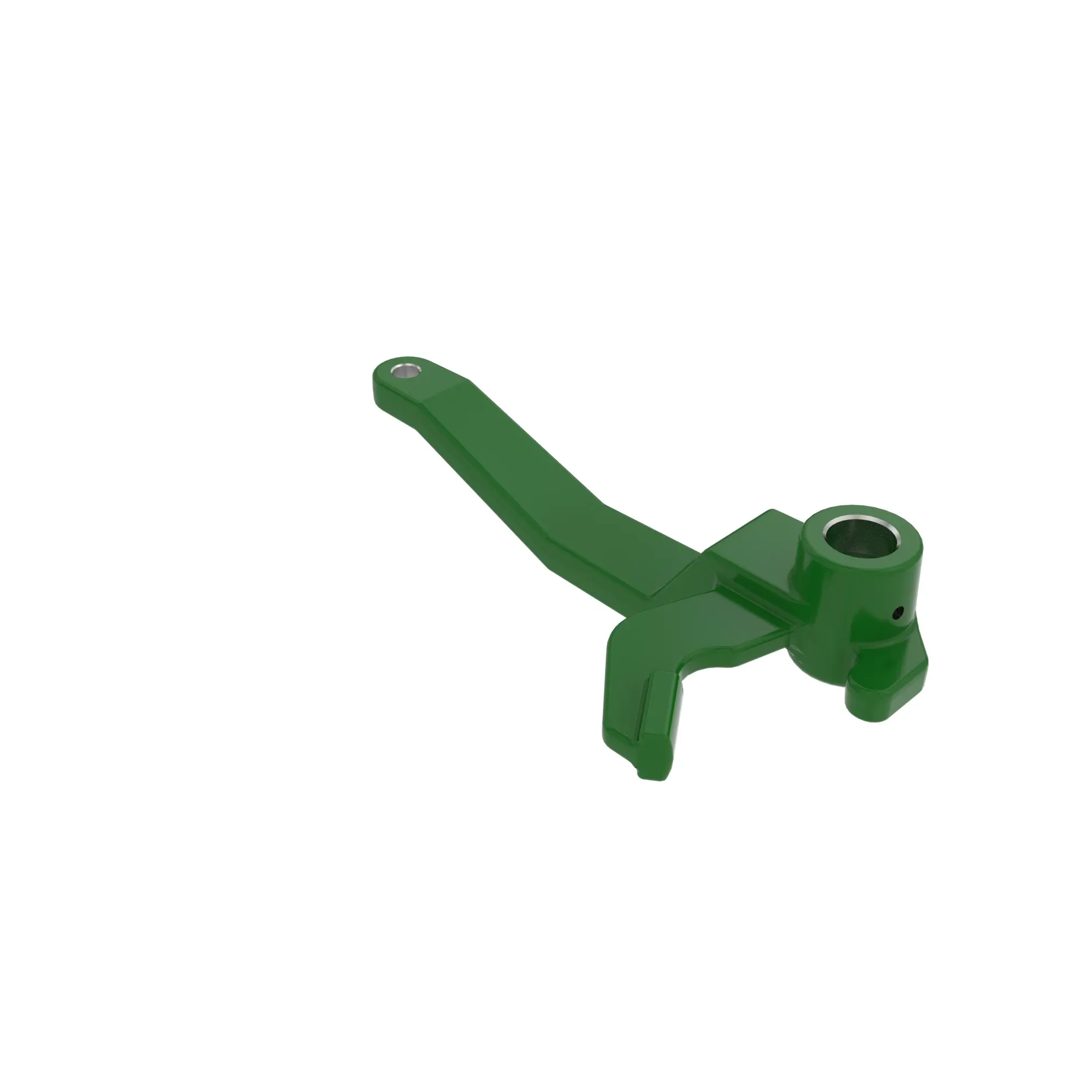

AX10566: Depth Guage Arm, Right Side
Part Number: AX10566
Parts Tier: Original
Product Dimensions
Weight
9.5 lb
Height
5 in
Width
8.4 in
Length
15.5 in
For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.
1107
1109
1111
1113
2113
2115
2117
2122
2126
2130
2134
DB40
DB50
DB50 PRECISION UPGRADES
DB74
DB74 PRECISION UPGRADES
DB90
