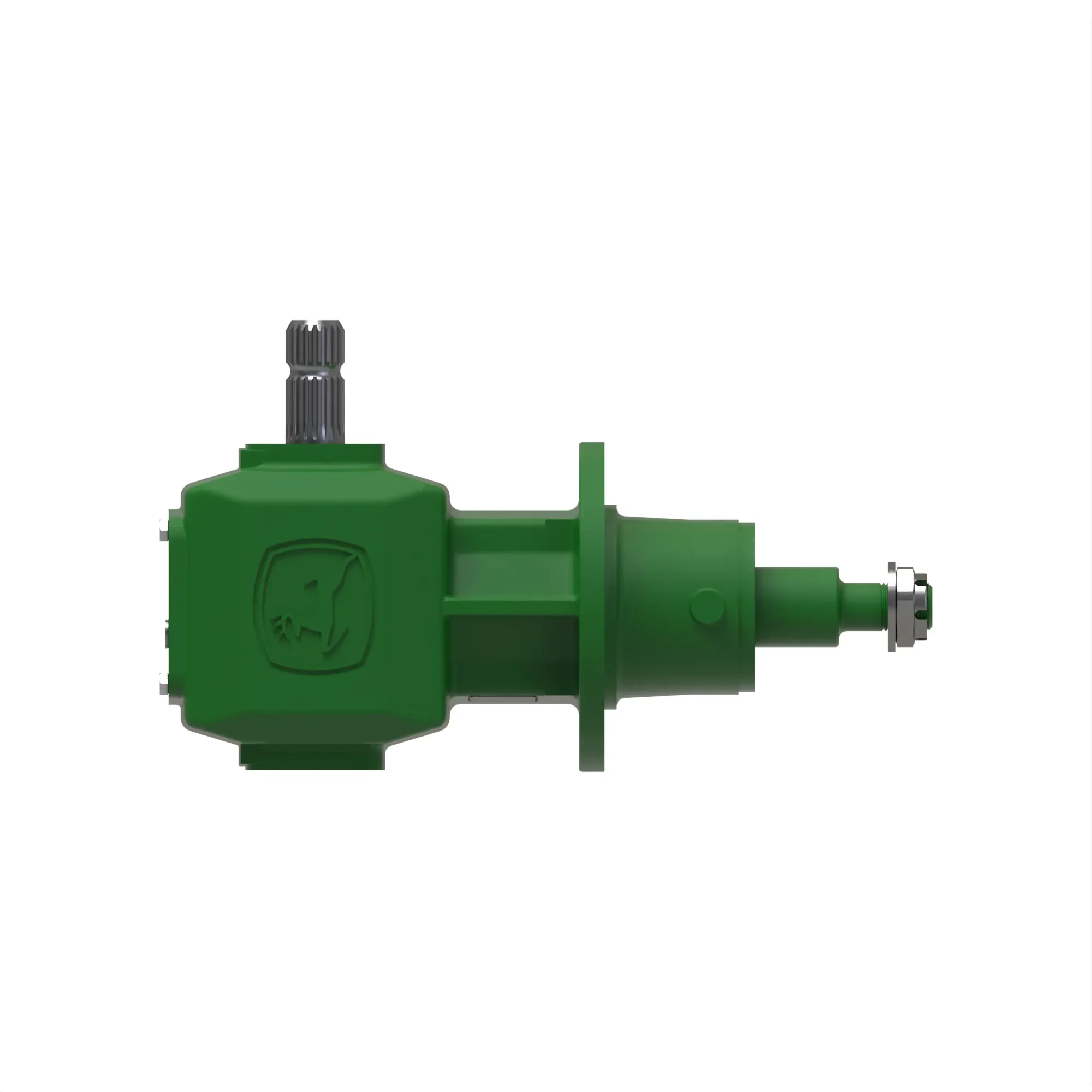

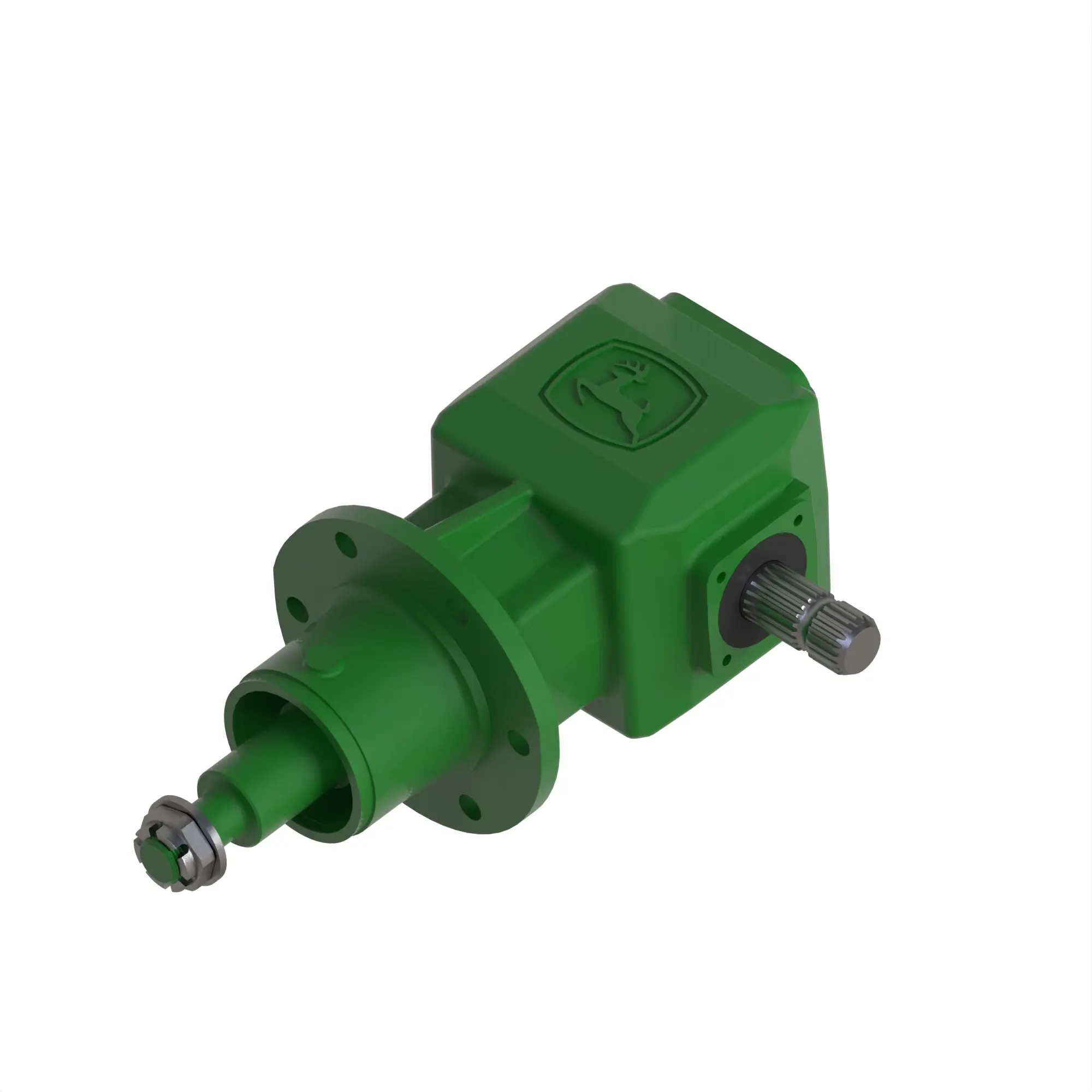

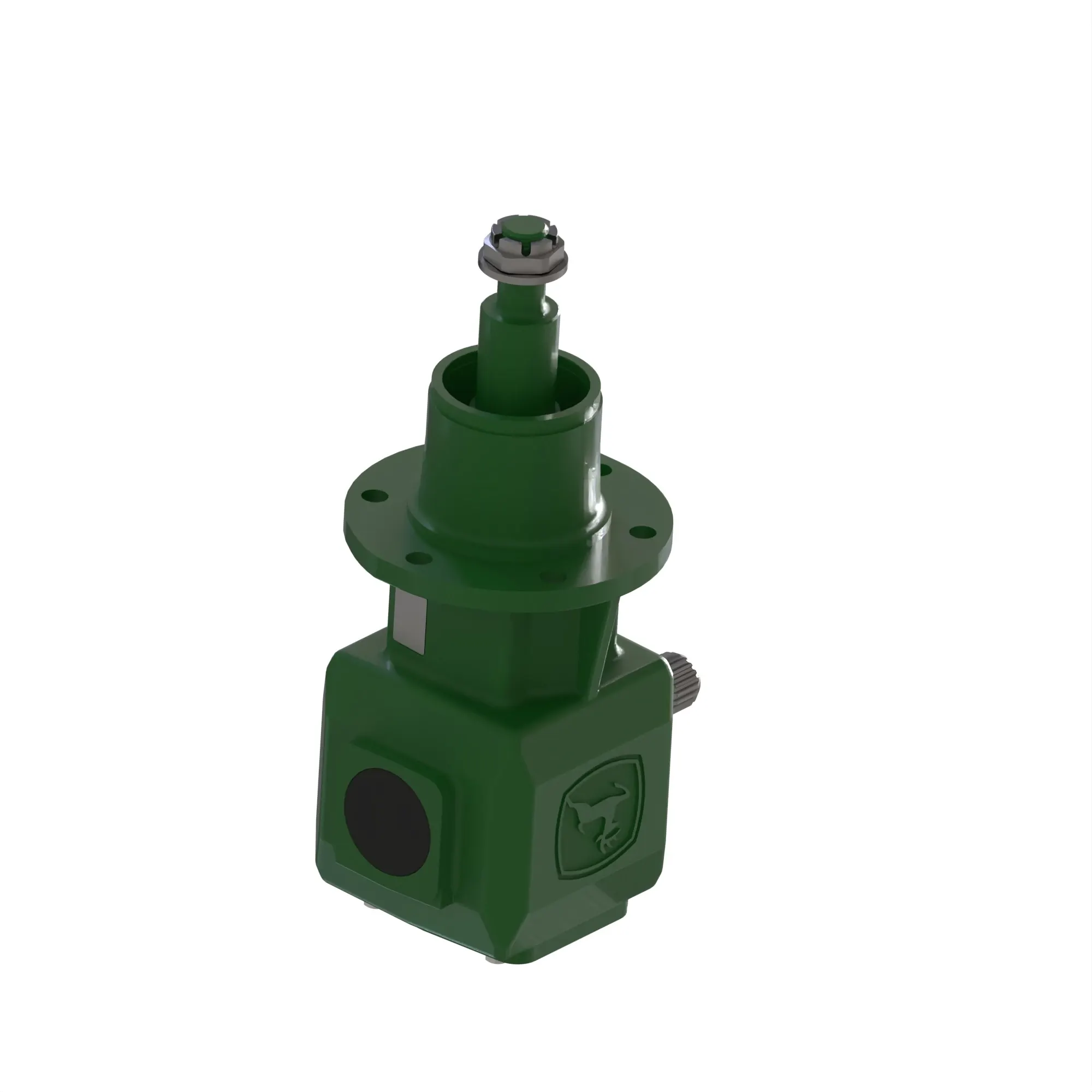

Gear case assembly supports the transfer and protection of drivetrain power components, helping maintain efficient operation in John Deere machinery
Smooth power transfer is supported by the gear case, promoting efficient torque delivery between drivetrain components
Protective gear housing shields internal gears from contaminants and helps retain lubrication for consistent performance
OEM-compatible design allows straightforward replacement to fit factory specifications and maintain proper alignment
Product Dimensions
Weight
91 lb
Height
10.6 in
Width
12.8 in
Length
23.5 in
For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.
509
609
709
HX10
Generally, parts purchased from Shop.Deere.com are covered by the John Deere Parts Warranty, covering defects in material and workmanship, for a minimum period of 6 months from receipt. For complete warranty information, please contact your local authorized John Deere dealer.
