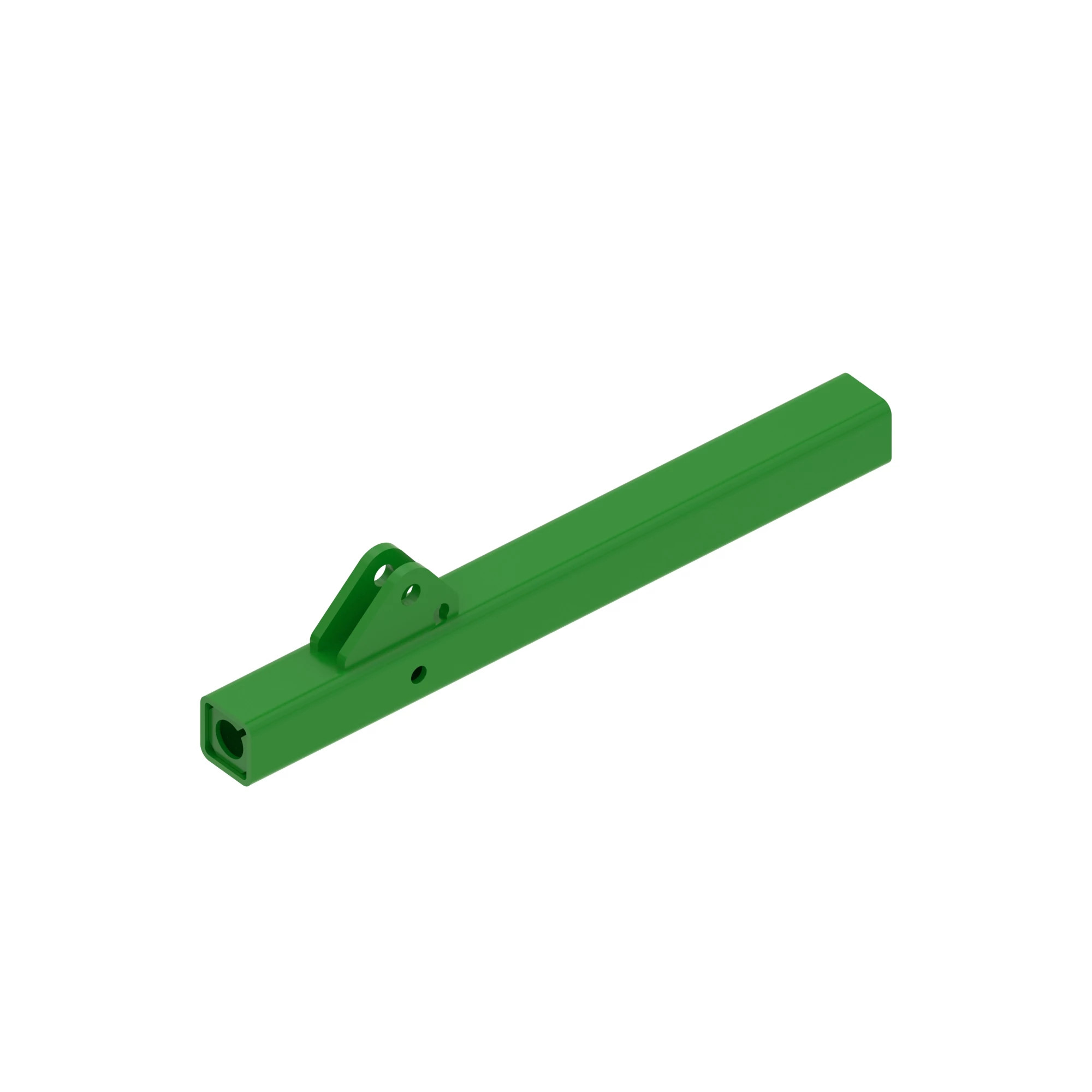

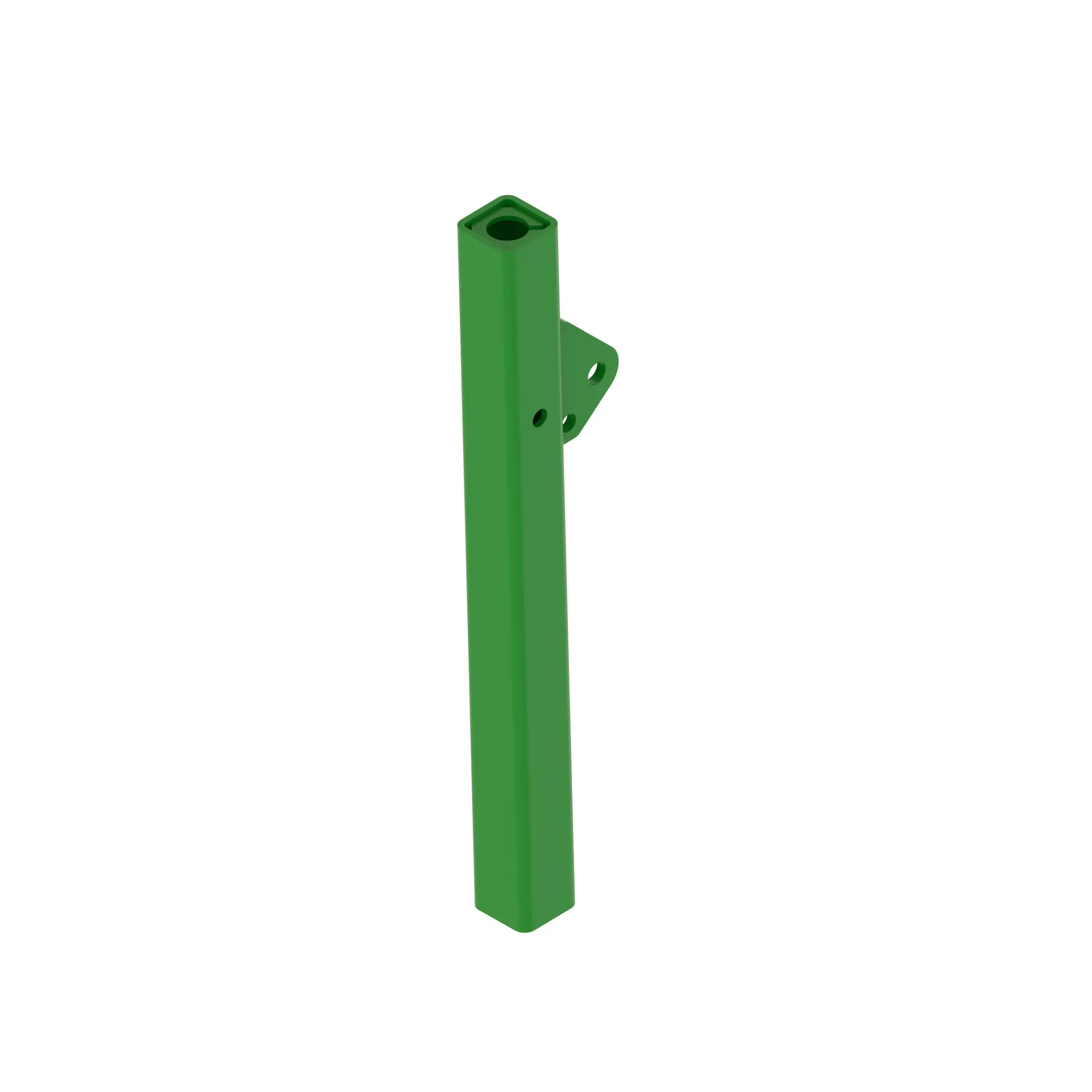

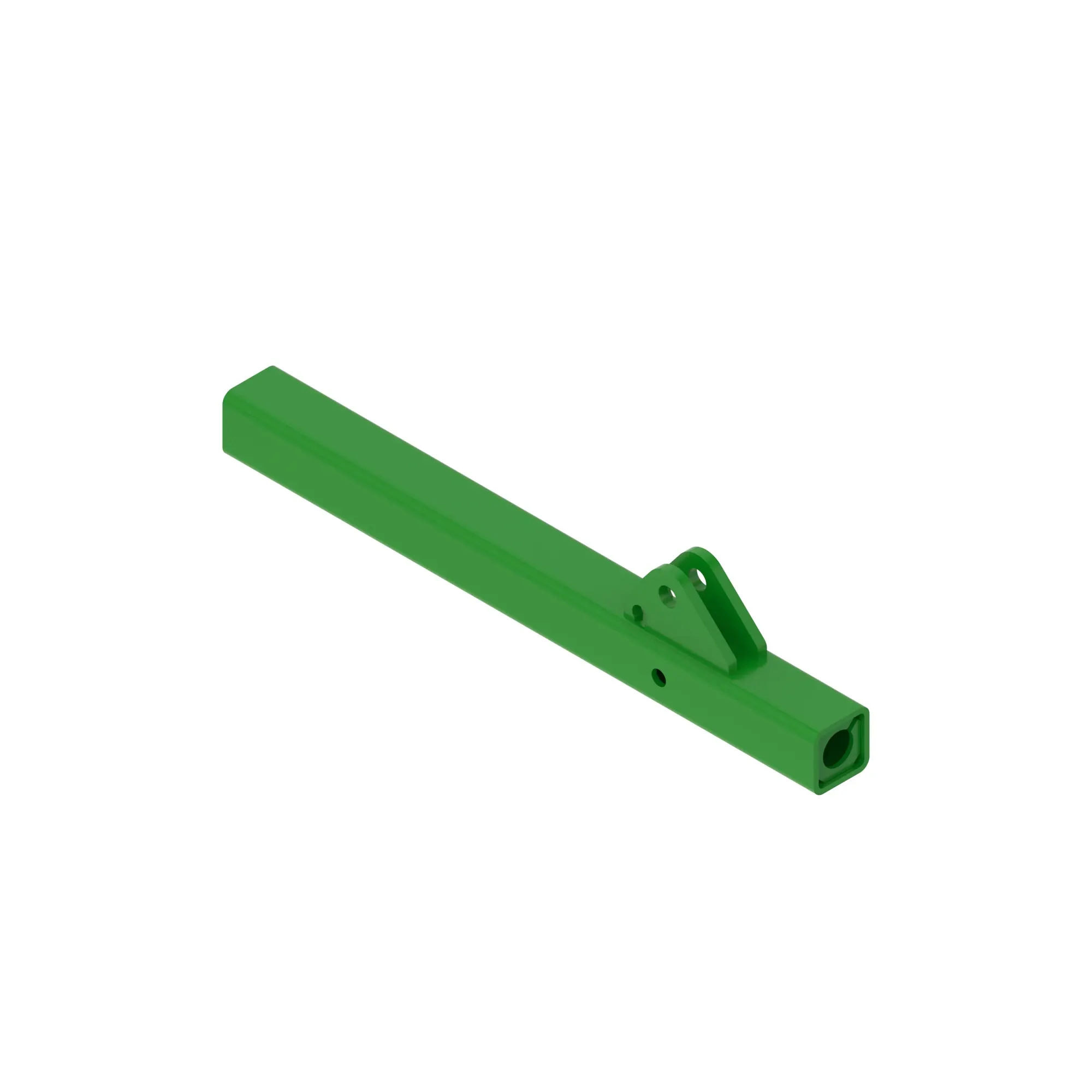

Name: AW30722: Structural Tubing Assembly
Brand: John Deere

Product Dimensions

Weight

16.7 lb

Height

2.5 in

Width

5.1 in

Length

26.7 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

CX15
CX20
FC10R
FC15M
FC15R
FC20M
FC20R
HX15
HX20
M15
M20
R10
R15
R20

Return Information

Return Items identified as ‘Eligible for Return’ are eligible for refund within 30 days of invoicing. Returned Items must be returned in new condition and in its original packaging with all paperwork including manuals, assembly instructions and your packing slip. Parts must be returned to the seller listed on your e-commerce invoice. Return eligibility & processing will be verified by the dealer at time of return. View Return Policy for complete information.

Generally, parts purchased from Shop.Deere.com are covered by the John Deere Parts Warranty, covering defects in material and workmanship, for a minimum period of 6 months from receipt. For complete warranty information, please contact your local authorized John Deere dealer.
