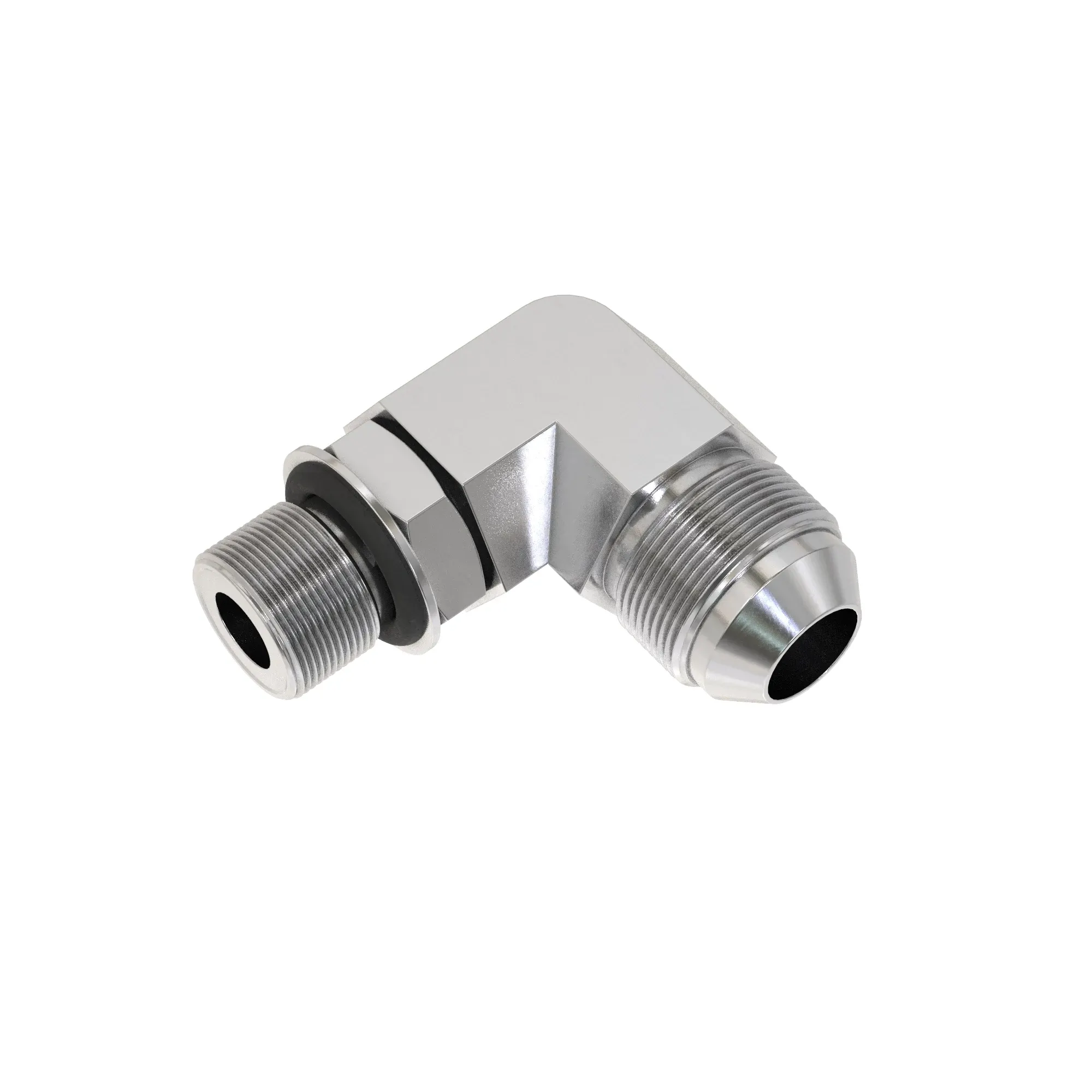

AW22821: Elbow Fitting

Part Number: AW22821

Parts Tier: Original

John Deere Elbow Fitting helps direct fluid for efficient routing within equipment systems
Provides a secure connection between compatible hoses, tubes, or components
Helps simplify routing in confined spaces by allowing directional changes without excessive hose or tube bending
Designed for proper fit and easy installation on compatible John Deere equipment

Product Dimensions

Weight

0.21 lb

Height

1 in

Width

1.8 in

Length

2.1 in

Specifications

Fitting Type

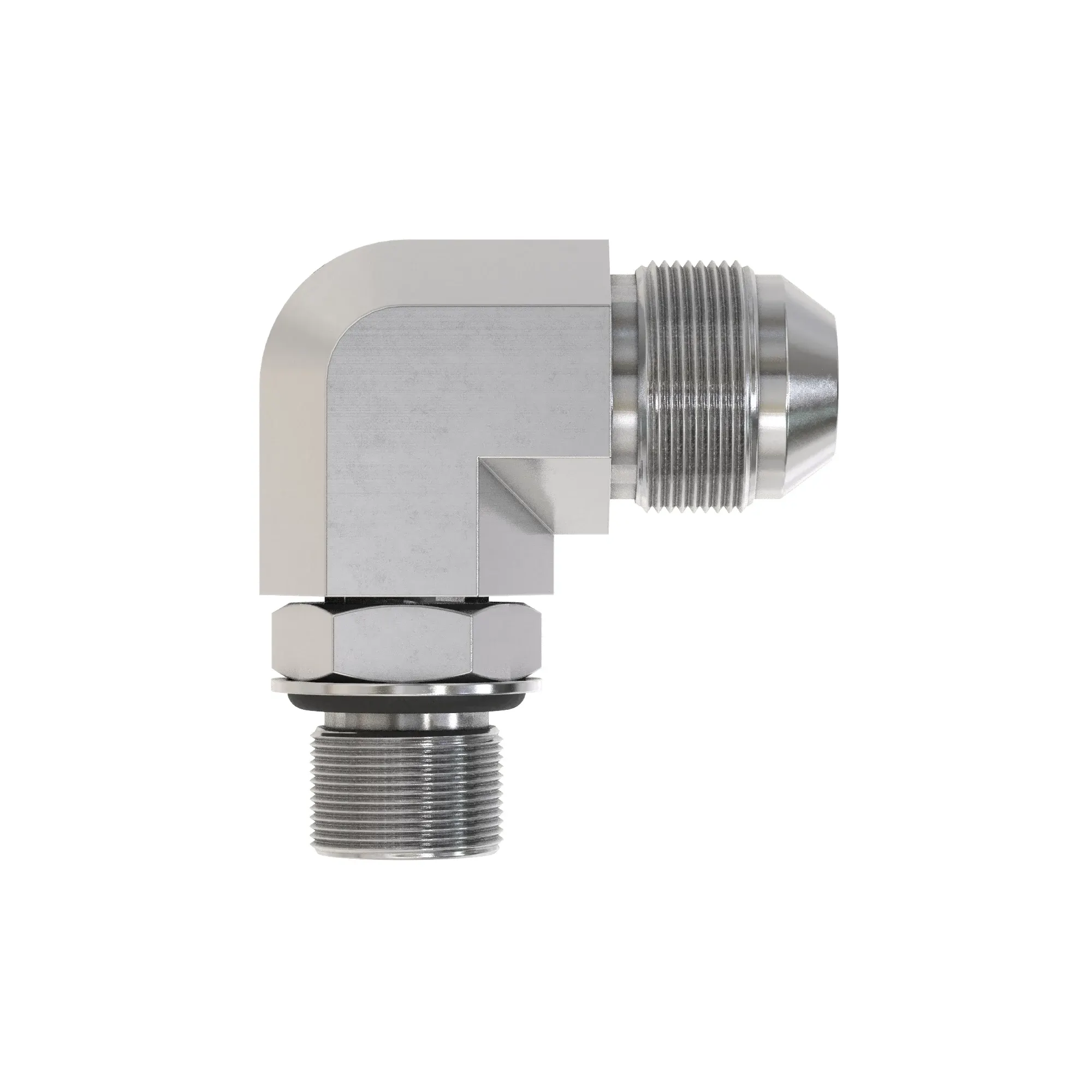

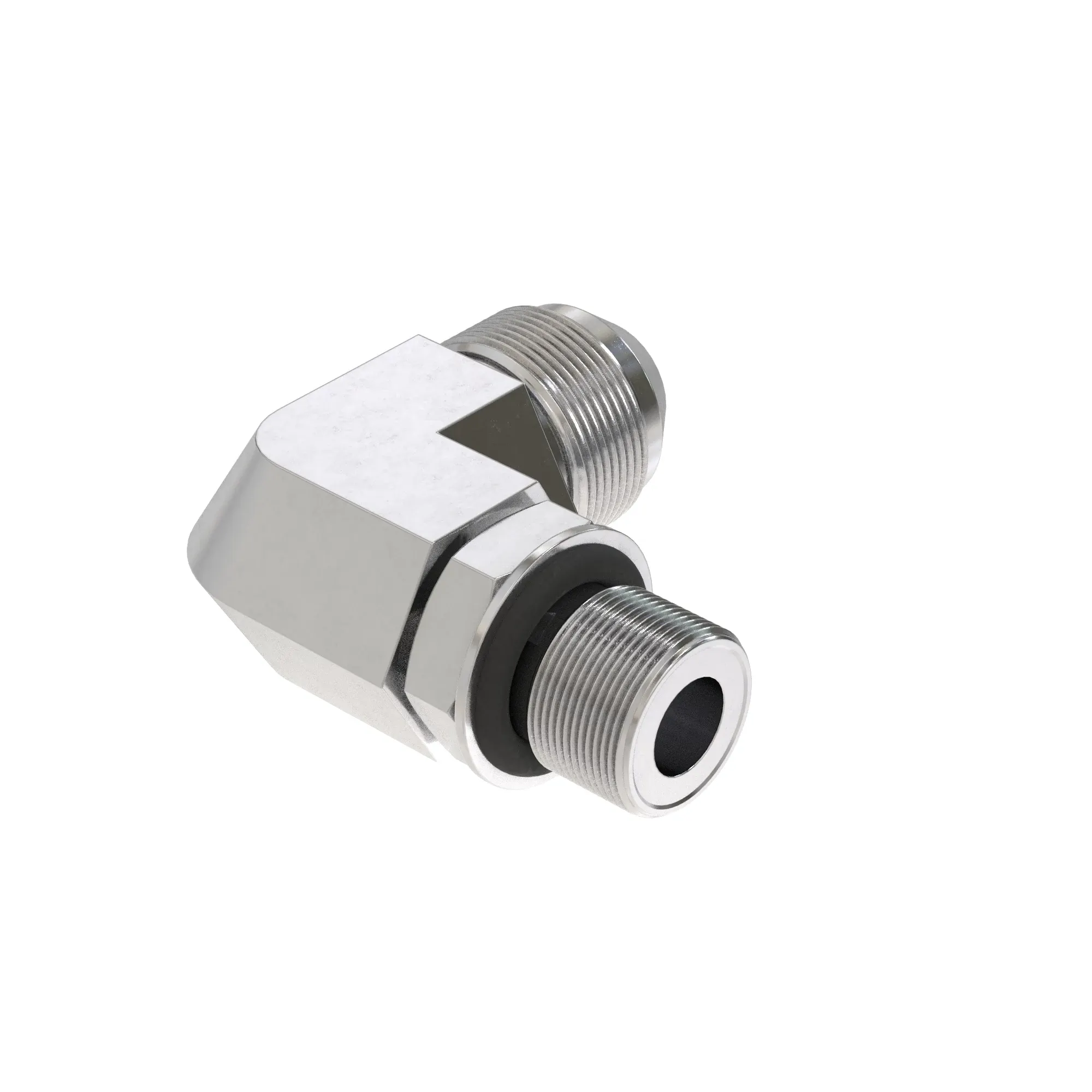

Elbow Fitting, 37° Flare Connector

Tube/Hose Outer Diameter (OD)

12.7 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

455
1720
1725
1750
1755
1760NT
1765
1775NT
1850
1890
1895
2254
2510H
3510
3520
3522
A420R
A520R
CH570 TRACK
CH570 WHEEL
CH670 TRACK
CH750 TRACK
CH750 WHEEL
CH770 TRACK
H550F
H560F
HX10
MX8
MX10
N530
N530F
N536
N540
N540F
N542
N543F
RC8M
RC10M
