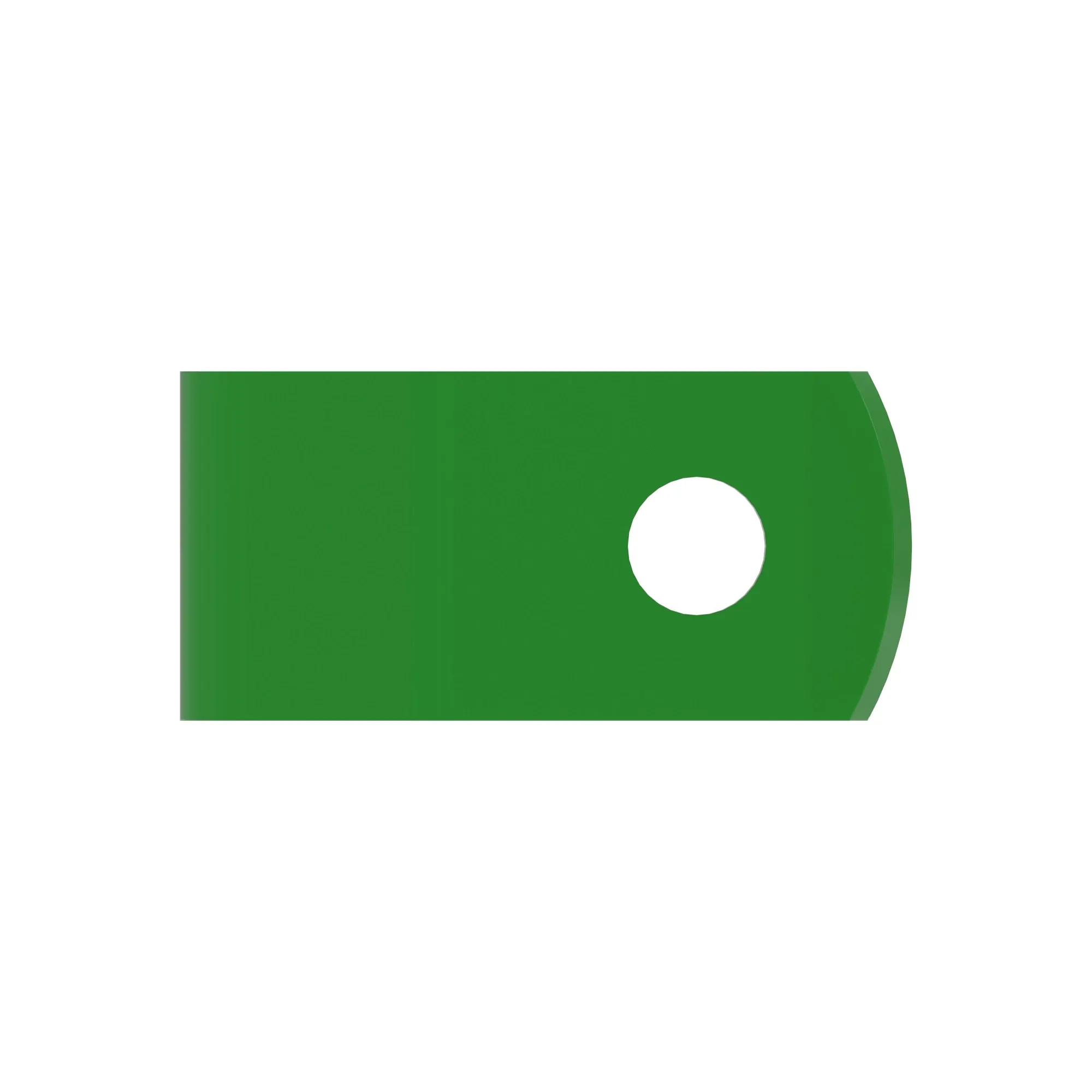

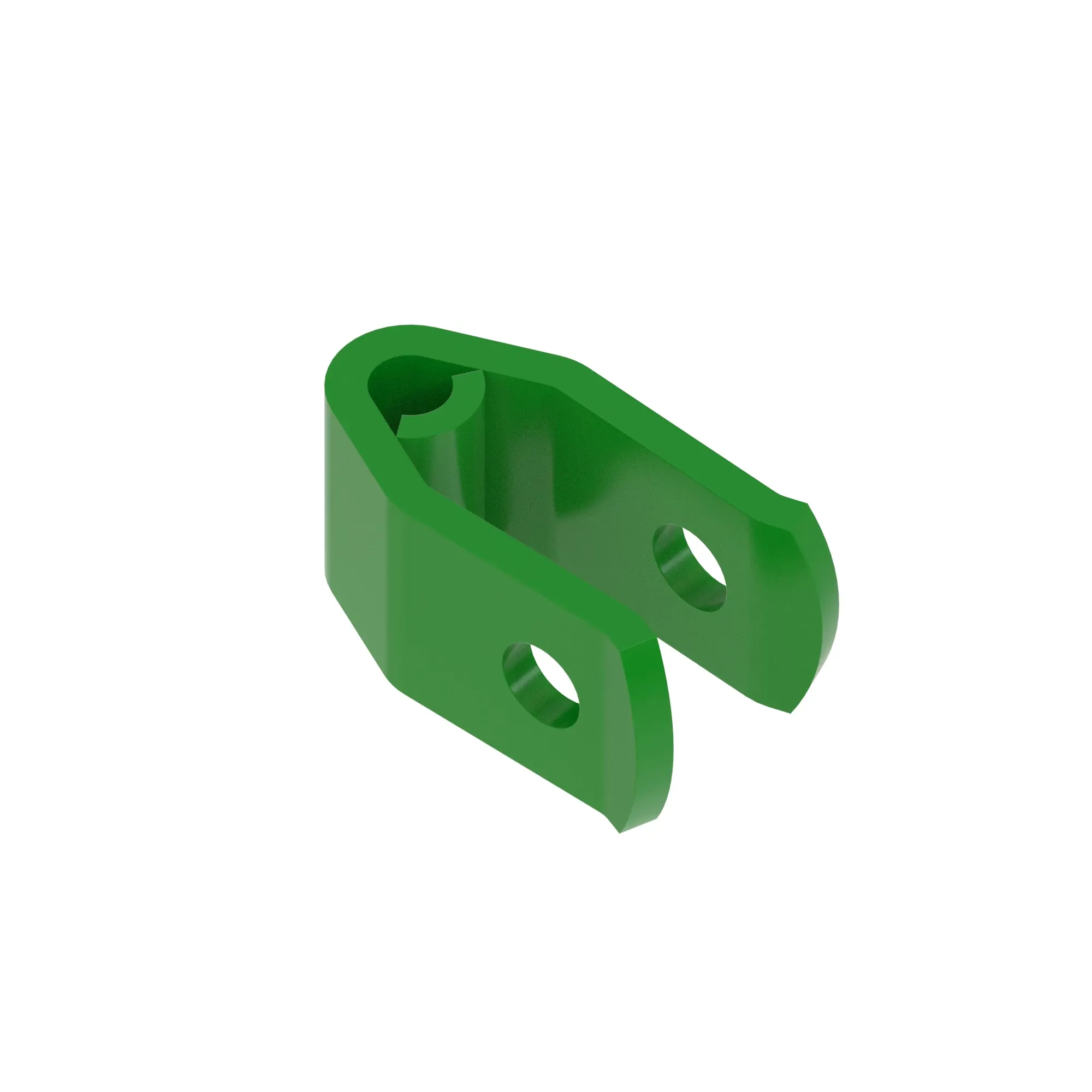

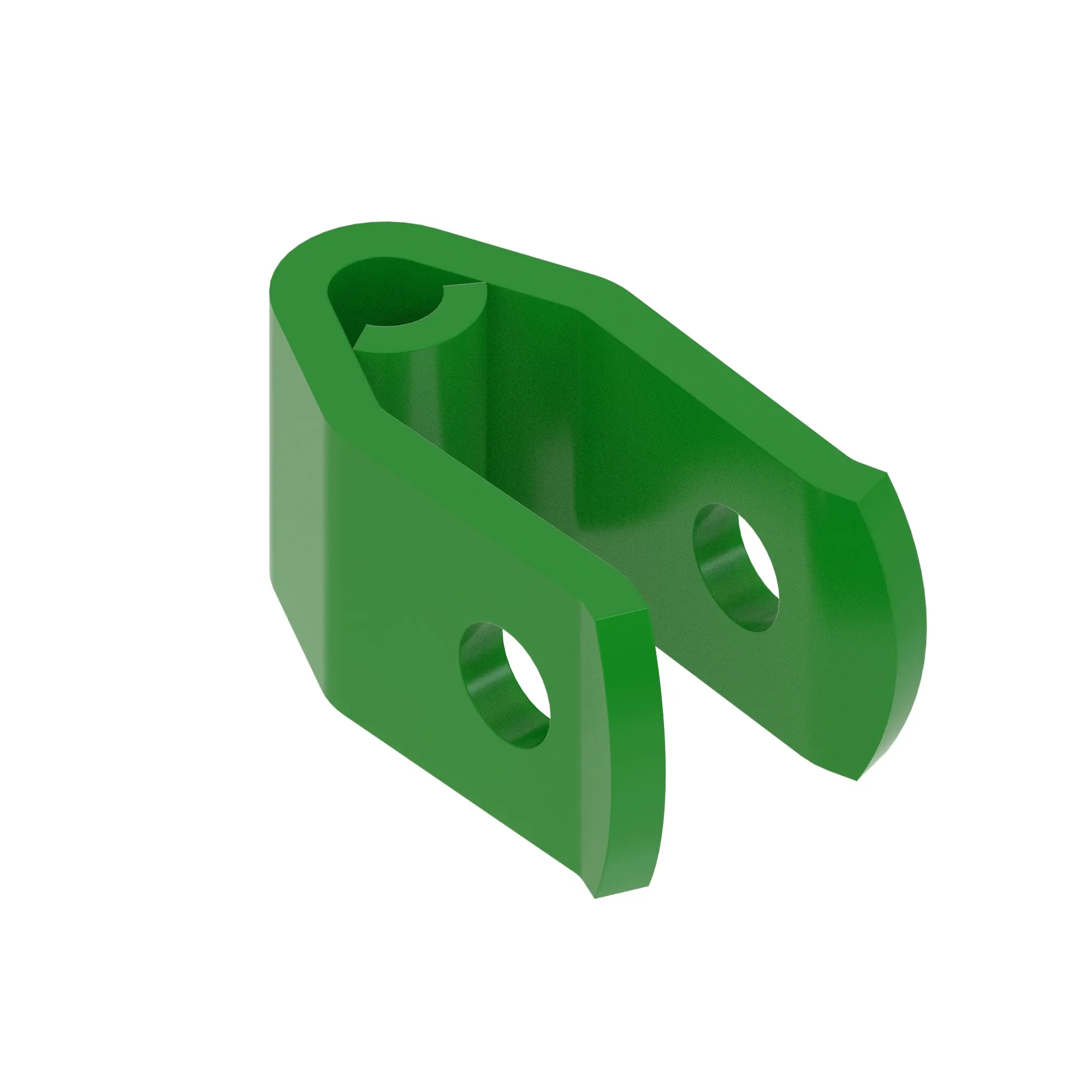

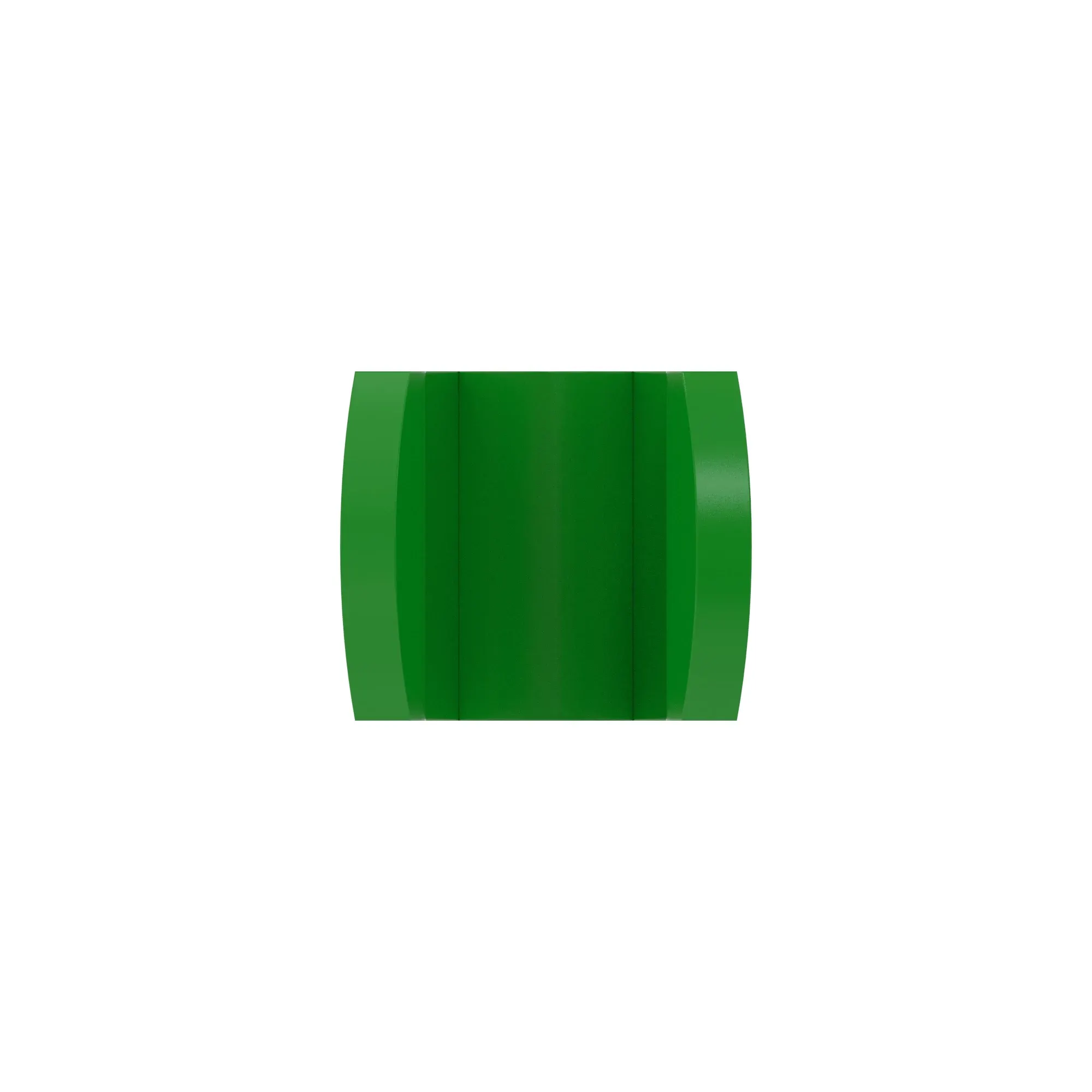

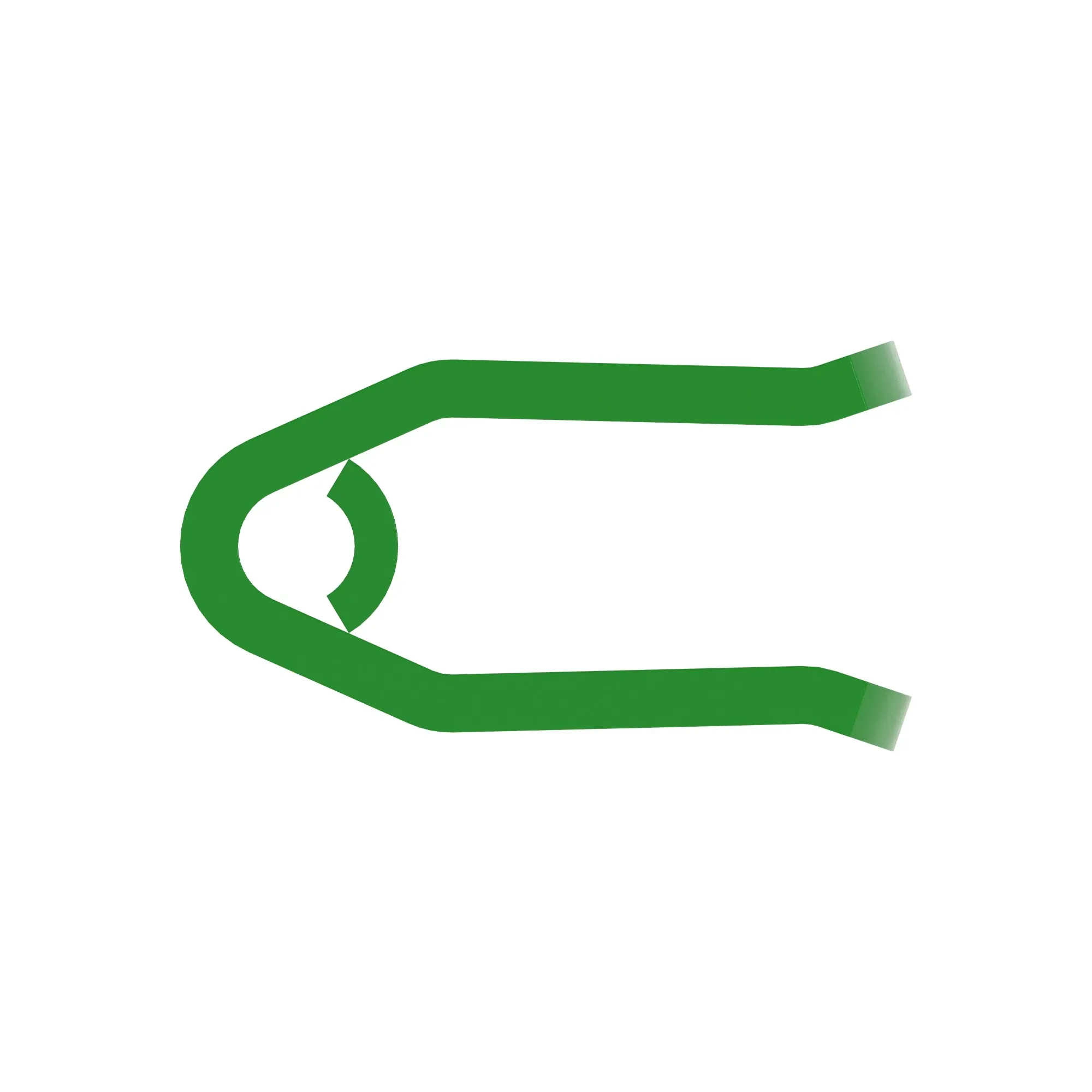

Wide Assembly Clevis designed for secure and reliable connections in various applications
Key specifications: 76.20 mm (3.0 in) stock width, 111.80 mm (4.4 in) depth, 52.30 mm (2.06 in) throat width, 56.90 mm (2.24 in) inside throat length
Additional specifications: 12.70 mm (1/2 in) stock thickness, 30.15 mm (1.19 in) hole size for versatile use
Made from high-quality material for enhanced durability and performance
Product Dimensions
Weight
5.5 lb
Height
3 in
Width
3.6 in
Length
6.3 in
For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.
509
609
709
1008
1018
1408
1418
1508
1518
HX10
MX8
MX10
RC8M
RC10M
RC10R
