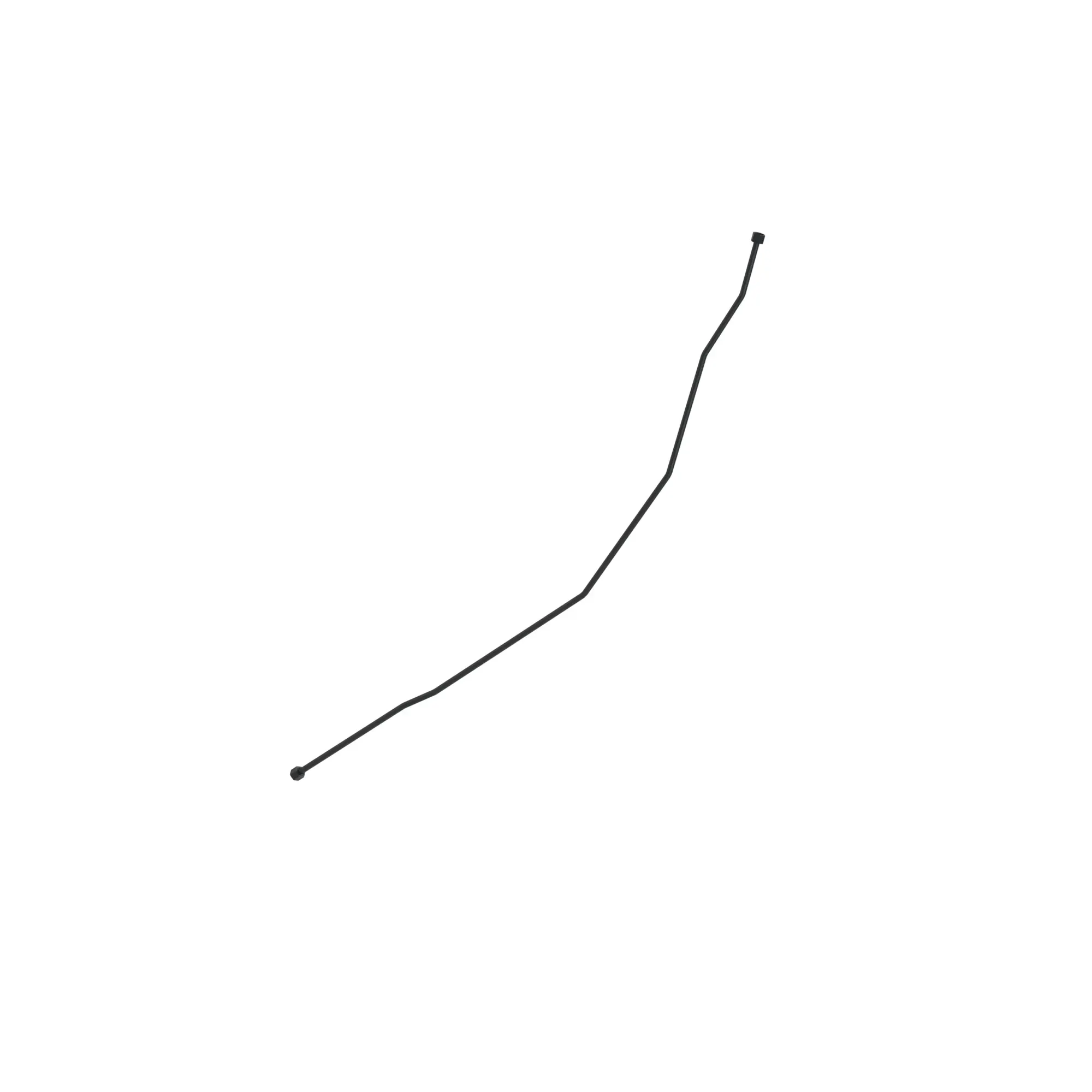

AT515583: Oil Extension Cylinder Rod End Oil Line
Part Number: AT515583
The right parts for your machine, every time
Designed for efficient oil transfer, the Oil Extension Cylinder Rod End Oil Line ensures optimal hydraulic system performance
Features a length of 2291.70 mm (90.22 in) and an outer diameter of 15.88 mm (5/8 in), ideal for high-pressure applications up to 27579.04 kPa
Includes SFZ61 type ends on both sides, with a crowflight length of 2155.10 mm (84.85 in) and a wall thickness of 2.11 mm (0.08 in) for durability
Made from high quality general steel, ensuring long-lasting strength and reliability
Painted finish for enhanced corrosion resistance and extended service life
Product Dimensions
Weight
4.008 lb
Height
1.2 in
Length
91.2 in
Specifications
Outer Diameter
15.875 mm
Application Type
Oil Line
Inner Diameter
13.767 mm
Wall Thickness
2.108 mm
Fittings Included
Yes
Overall Length (Crowflight)
2,155.1 mm
For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.
310SL
320 P
