Original

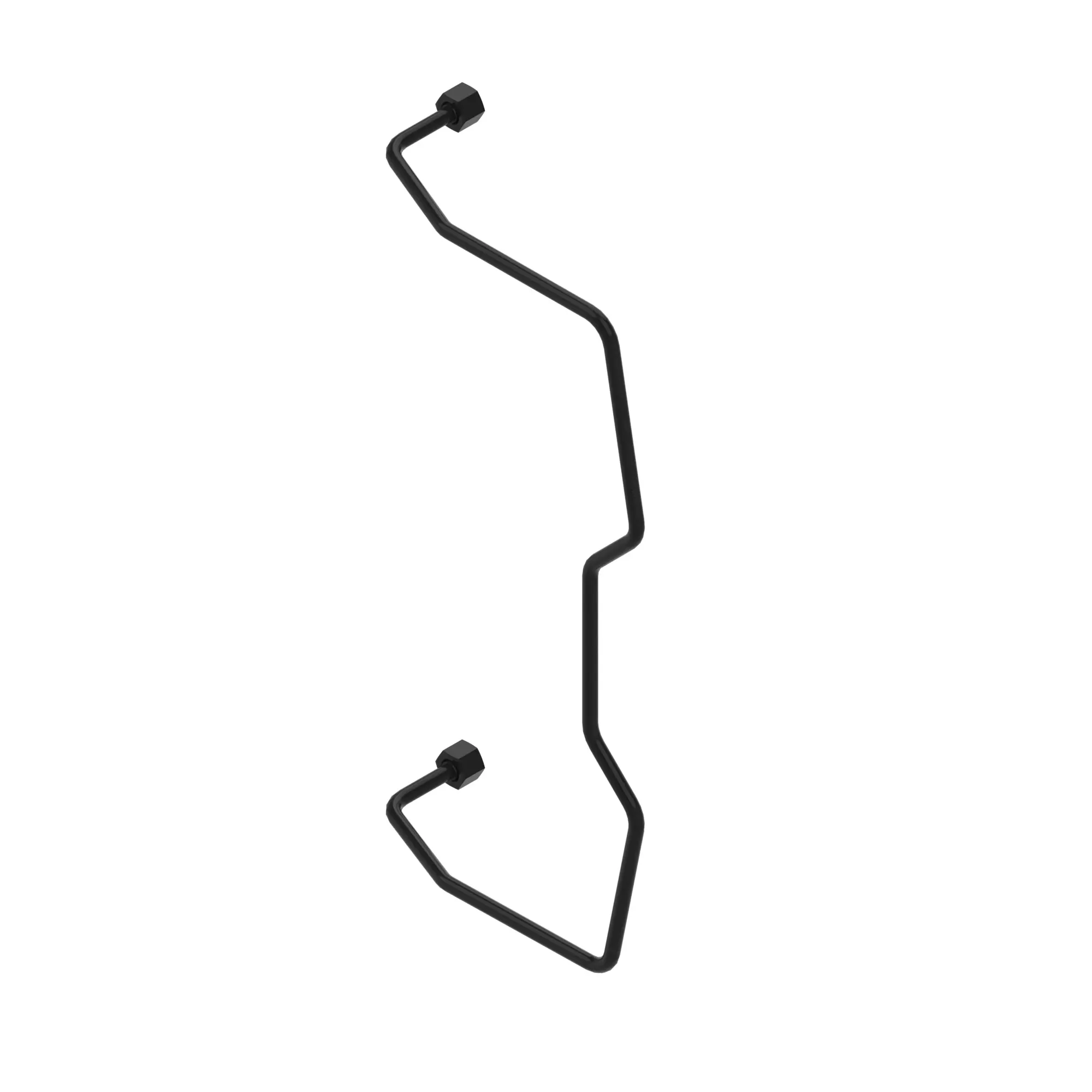

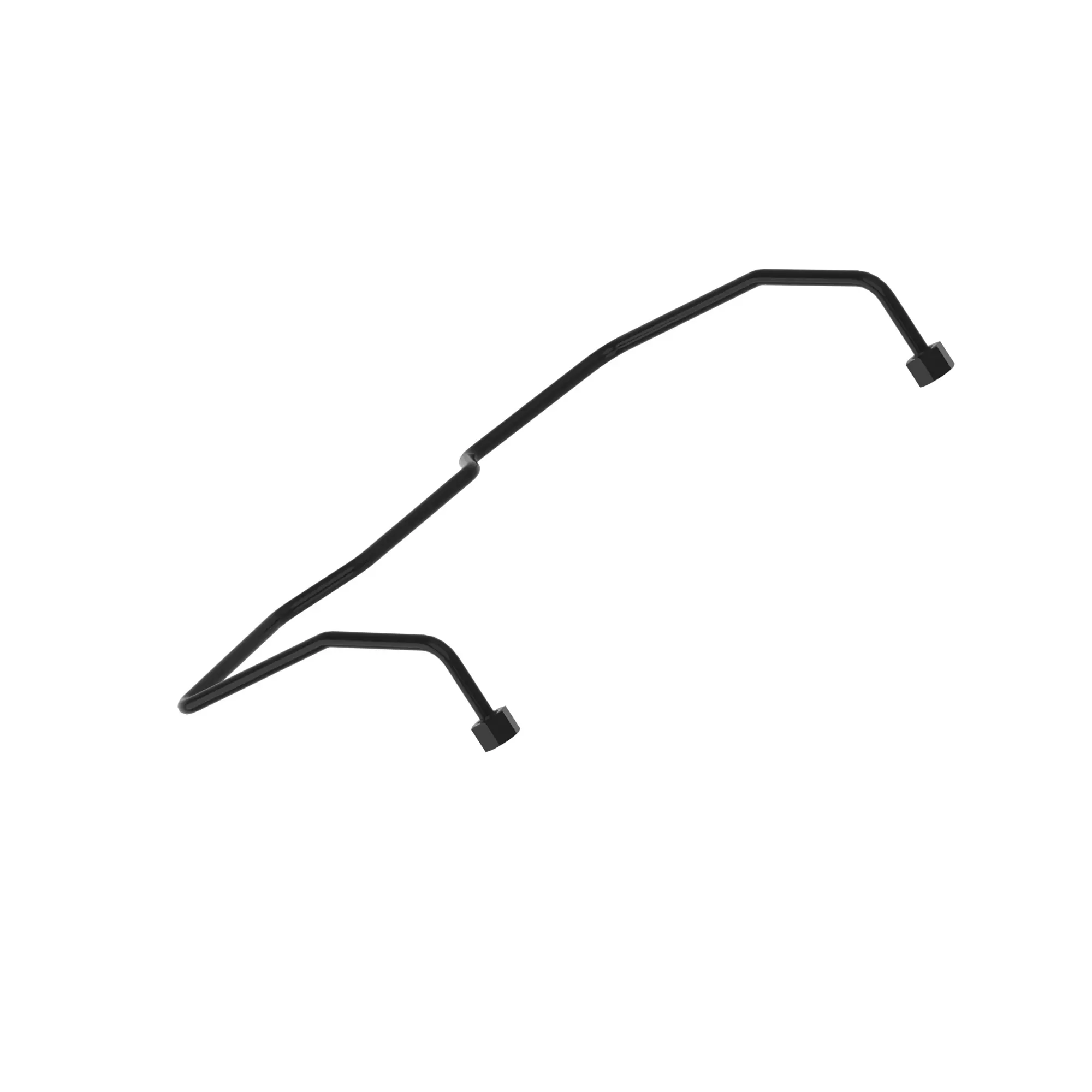

AT503564: 1-Speed Brake Oil Line
Part Number: AT503564
Parts Tier: Original
- Designed for efficient brake system performance, this 1-Speed Brake Oil Line ensures reliable fluid transfer and optimal braking response
- Features a 468.30 mm (18-7/16 in) crowflight length and 9.52 mm (3/8 in) outer diameter tube, ideal for high-pressure applications up to 6894.76 kPa
- Equipped with SFZ61 type ends and a 1.24 mm (0.05 in) wall thickness, providing robust and secure connections for enhanced durability
- Made from high quality general steel
- Finished with a painted coating for added protection and longevity
Product Dimensions
Weight
0.842 lb
Height
1 in
Length
42.4 in
Specifications
Outer Diameter
9.525 mm
Application Type
Brake Line
Inner Diameter
8.28 mm
Wall Thickness
1.245 mm
Fittings Included
Yes
Overall Length (Crowflight)
468.3 mm
