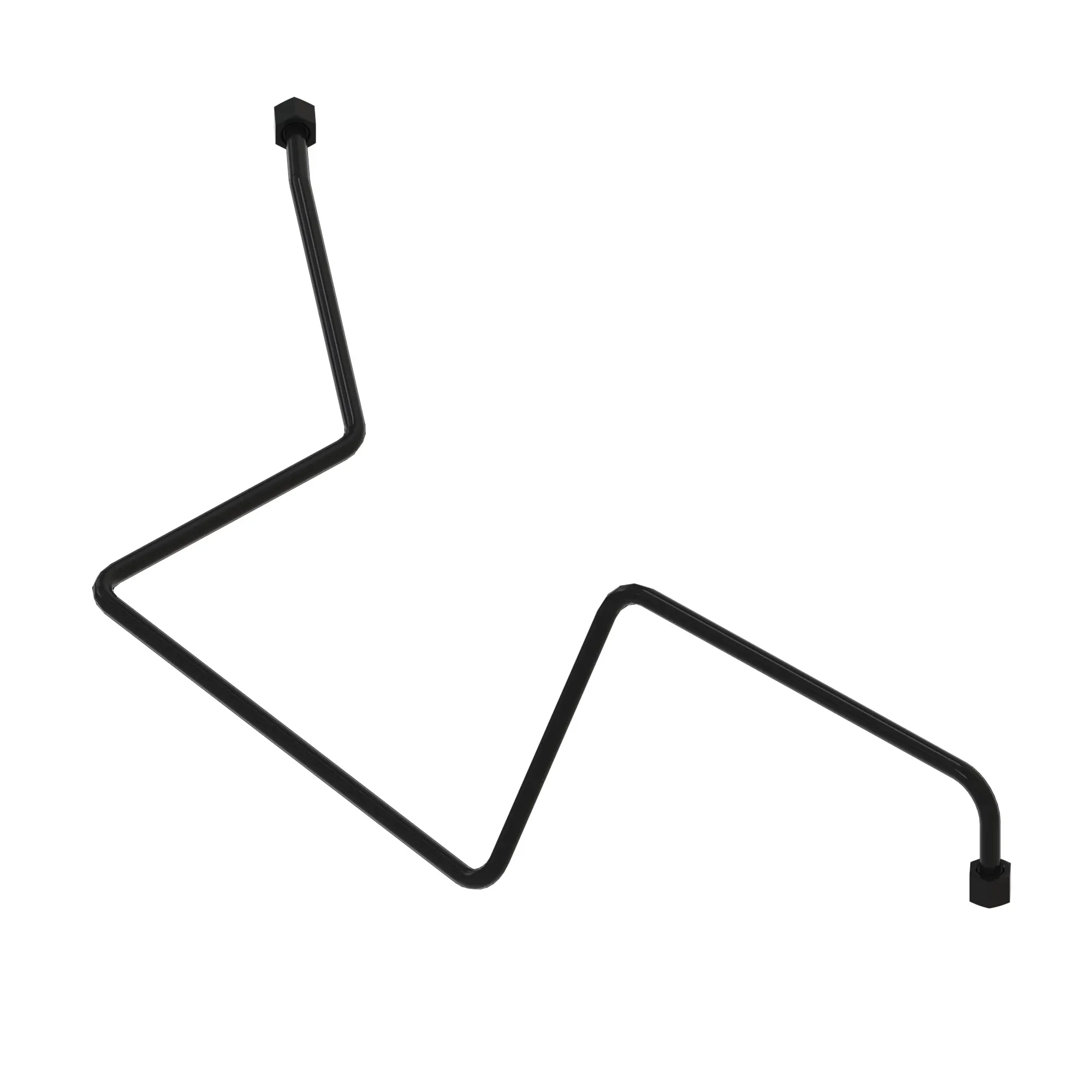

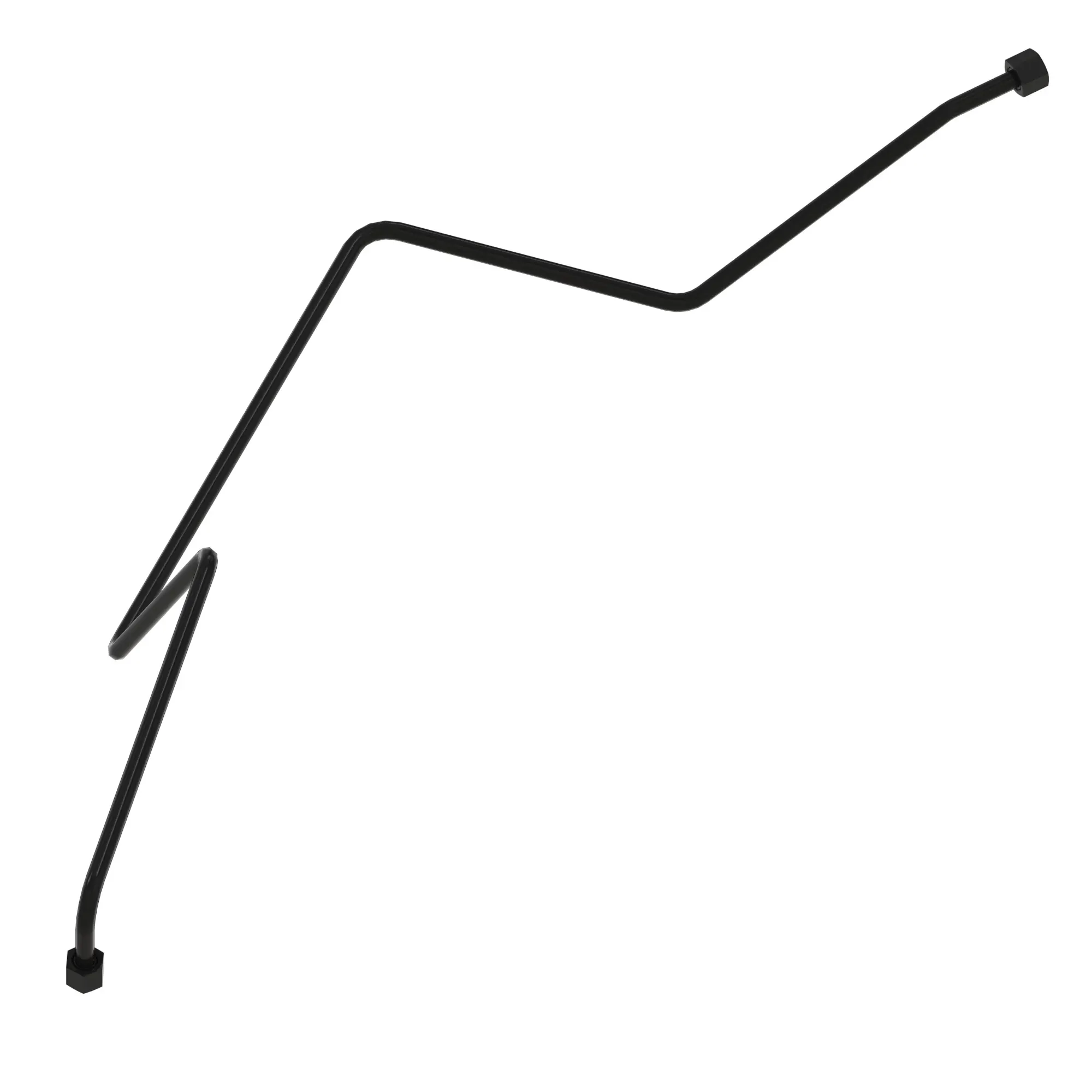

AT496176: Top Hydraulic Rotary Manifold Oil Line
Part Number: AT496176
- Designed for efficient hydraulic fluid transfer, the Top Hydraulic Rotary Manifold Oil Line ensures optimal performance in hydraulic systems
- Features a centerline length of 1449.90 mm (57.08 in) and an outer diameter of 12.70 mm (1/2 in) for robust fluid handling
- Includes a wall thickness of 1.65 mm (0.06 in) and a crowflight length of 1015.40 mm (39.98 in) for enhanced durability and reliability
- Made from high quality material for general use in various hydraulic applications
- Finished with a painted coating for added protection and longevity
Product Dimensions
Weight
1.68 lb
Height
1.3 in
Length
60 in
Specifications
Outer Diameter
12.7 mm
Application Type
Oil Line
Inner Diameter
11.05 mm
Wall Thickness
1.65 mm
Fittings Included
Yes
Overall Length (Crowflight)
1,015.4 mm
