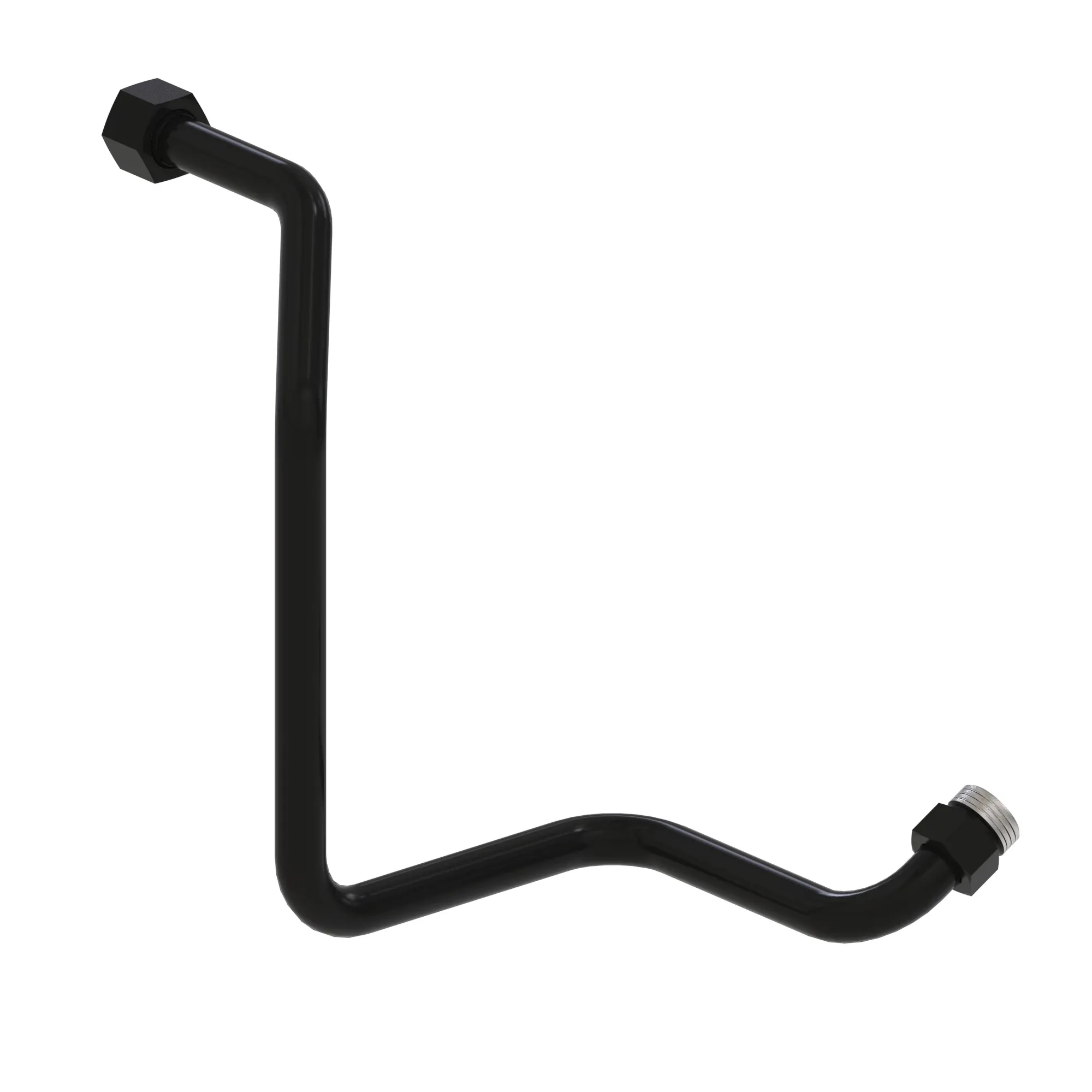

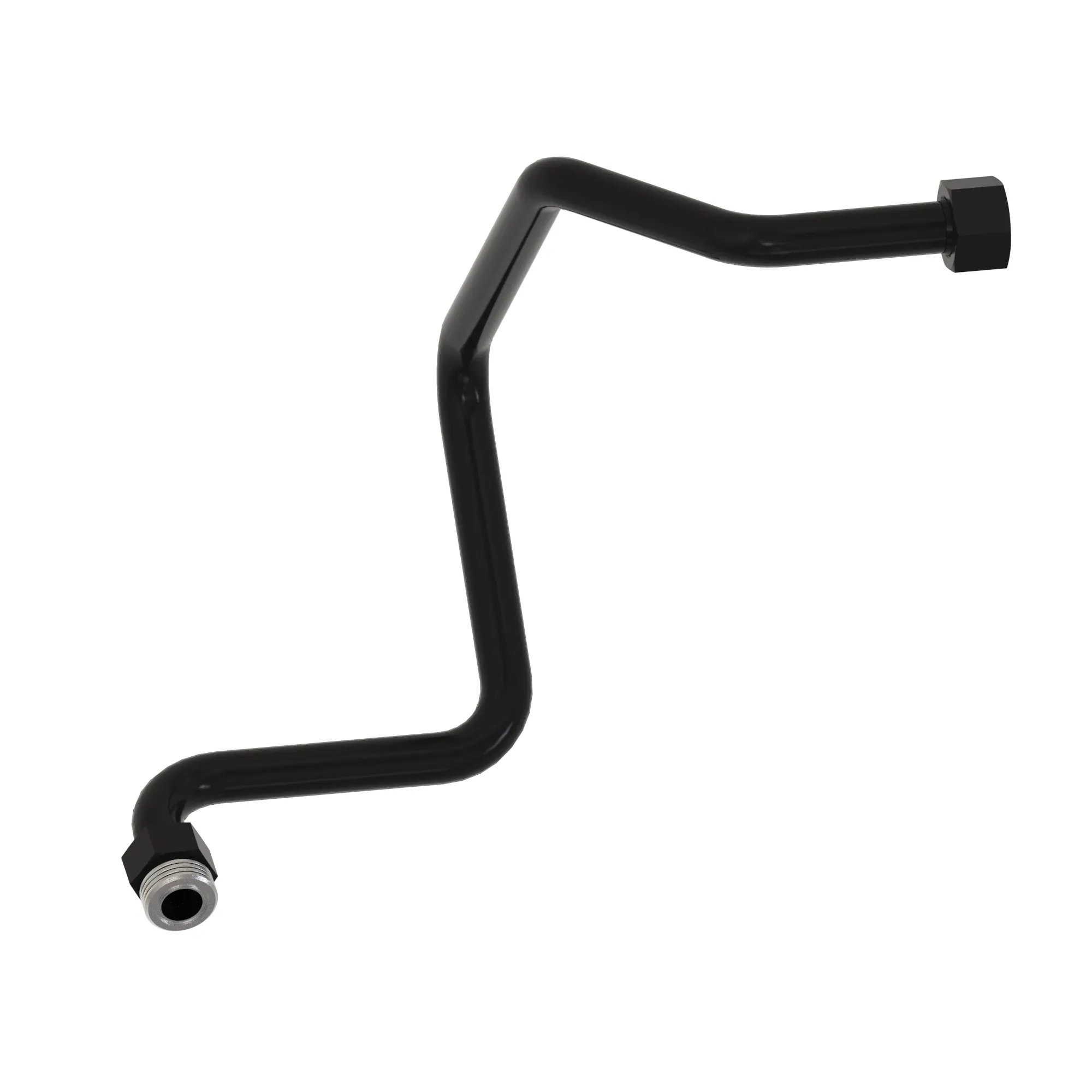

AT406723: Boom and Bucket Cylinder Hydraulic Oil Line
Part Number: AT406723
Parts Tier: Original
- Designed for efficient fluid transfer, this oil line ensures optimal performance in hydraulic systems
- Key specifications include a length of 214.20 mm (8.43 in) on one end and 373.31 mm (14.7 in) on the other, with a tube outer diameter of 25.40 mm (1.0 in)
- Features a wall thickness of 3.05 mm (0.12 in) and is equipped with SFZ61 and RMZ63 type ends for secure connections
- Made from high quality material for durability and reliability in demanding applications
- Coated with a painted finish for enhanced protection against corrosion and wear
Product Dimensions
Weight
4.03 lb
Height
1.7 in
Length
38.5 in
Specifications
Outer Diameter
25.4 mm
Application Type
Oil Line
Inner Diameter
22.352 mm
Wall Thickness
3.048 mm
Fittings Included
Yes
