Original

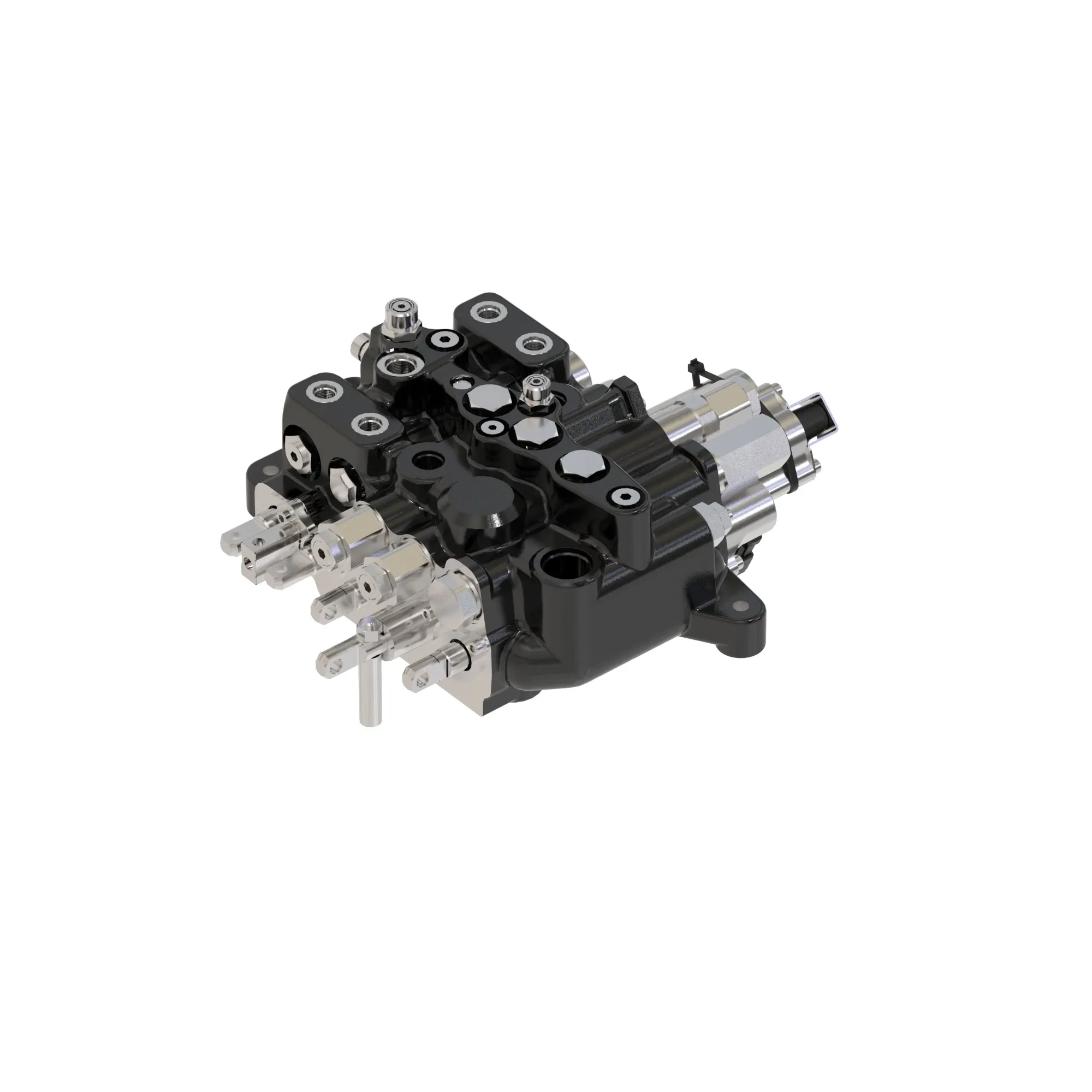

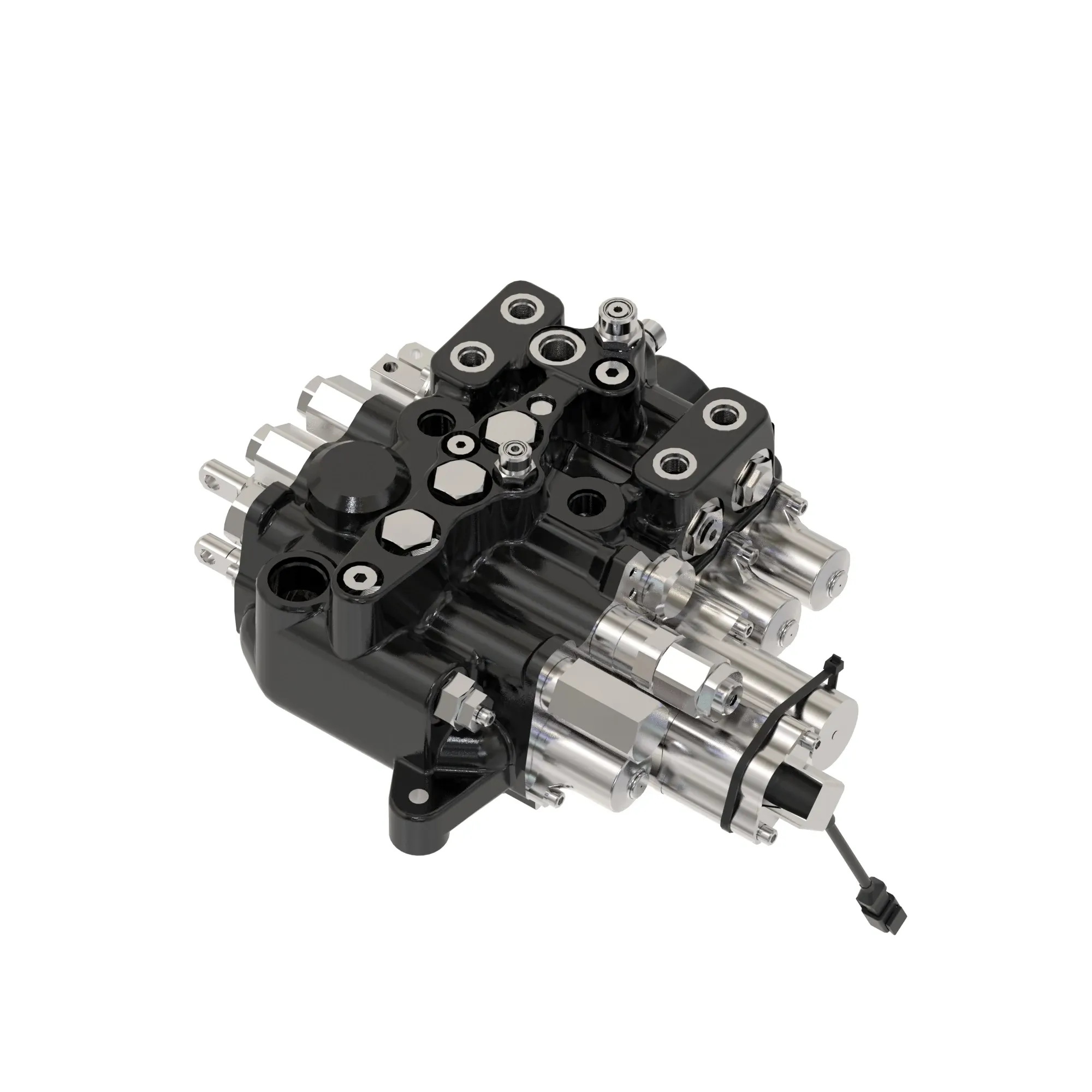

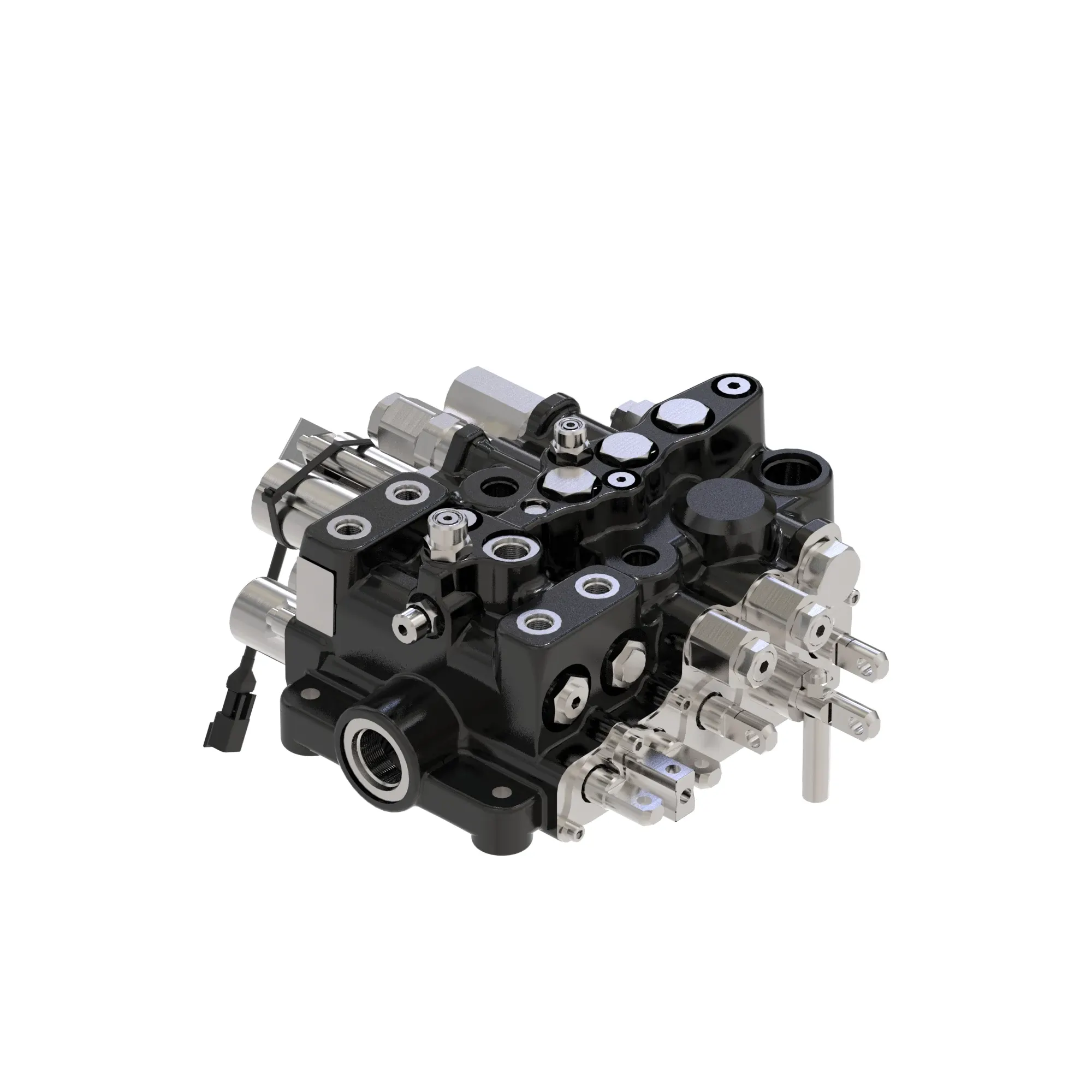

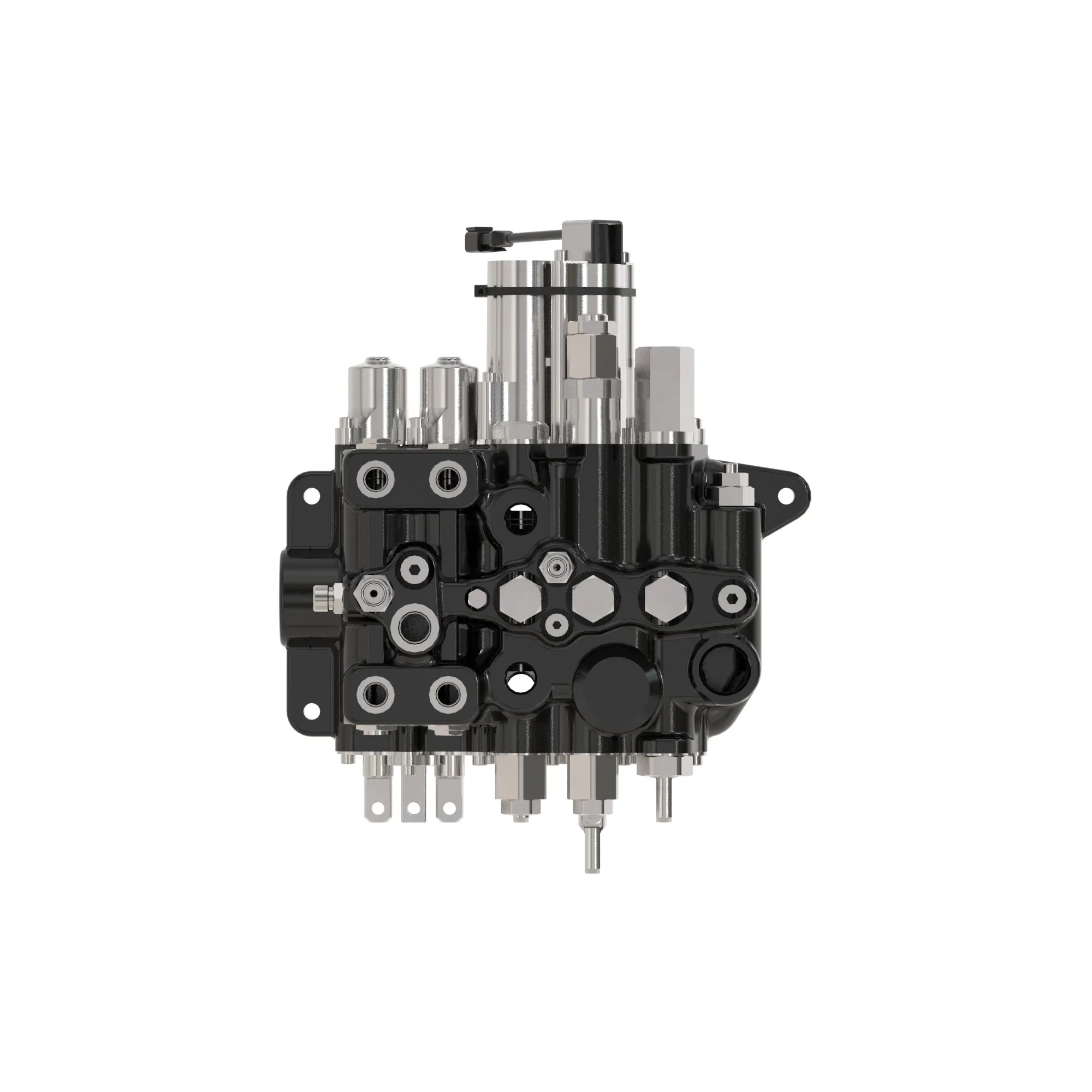

AT377480: Spool Valve
Part Number: AT377480
Parts Tier: Original
- Designed to control fluid routing through linear movement of an internal spool, the John Deere spool valve supports position‑based flow path control during operation
- Intended to open, close, or align internal passages based on the relative position of the spool within the valve body
- Engineered with closely matched spool and bore geometry to support controlled internal fluid movement within the assembly
- Suitable for maintenance or replacement of spool‑type valve components where applicable
- Manufactured in alignment with established John Deere engineering and material design requirements
Product Dimensions
Weight
85 lb
Height
10.5 in
Width
13 in
Length
13.5 in
Specifications
Cartridge Only
No
Rated Flow
208.198 L/min
Valve Type
Directional Control
Control Type
Mechanical
Rated Pressure
25,682.978 kPa
