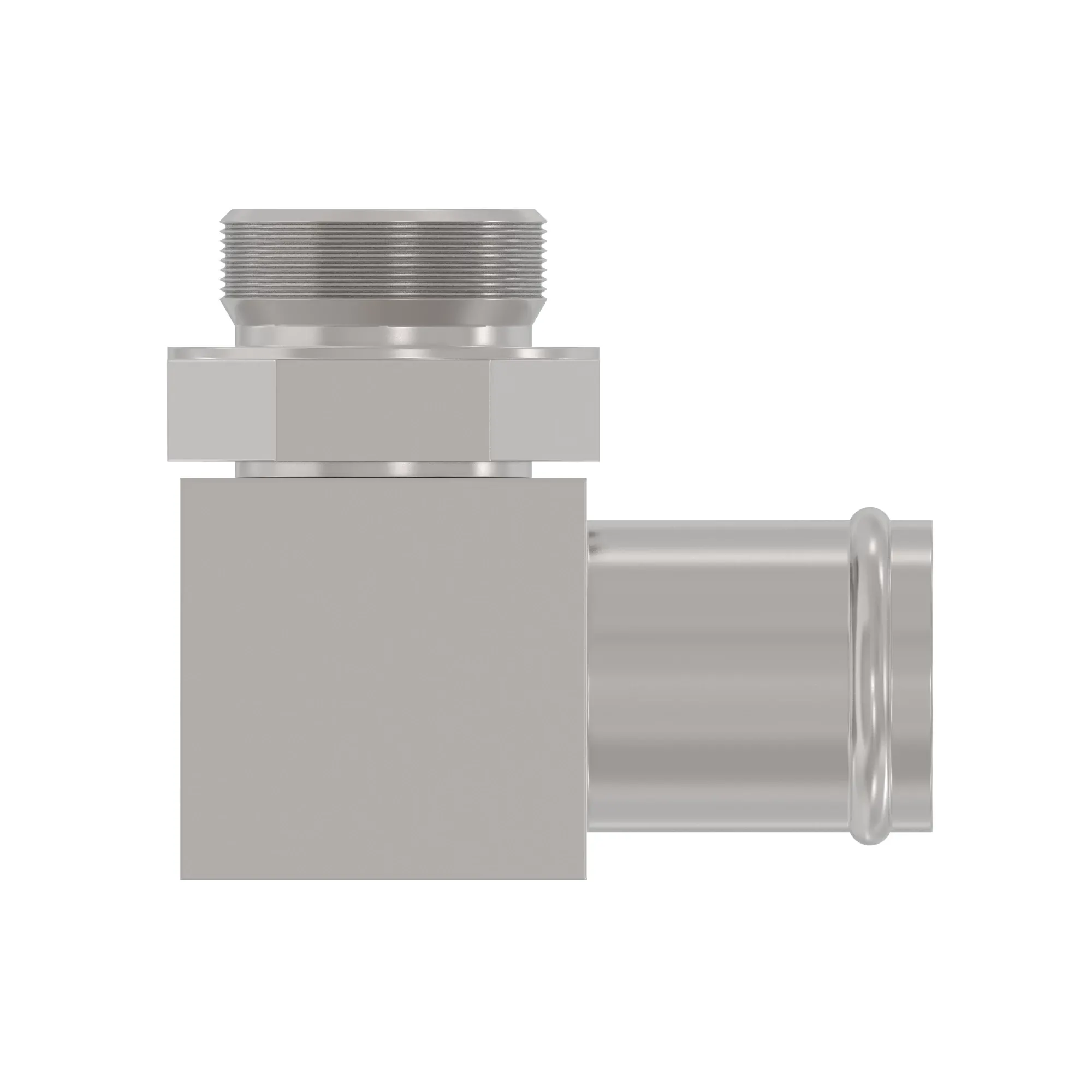

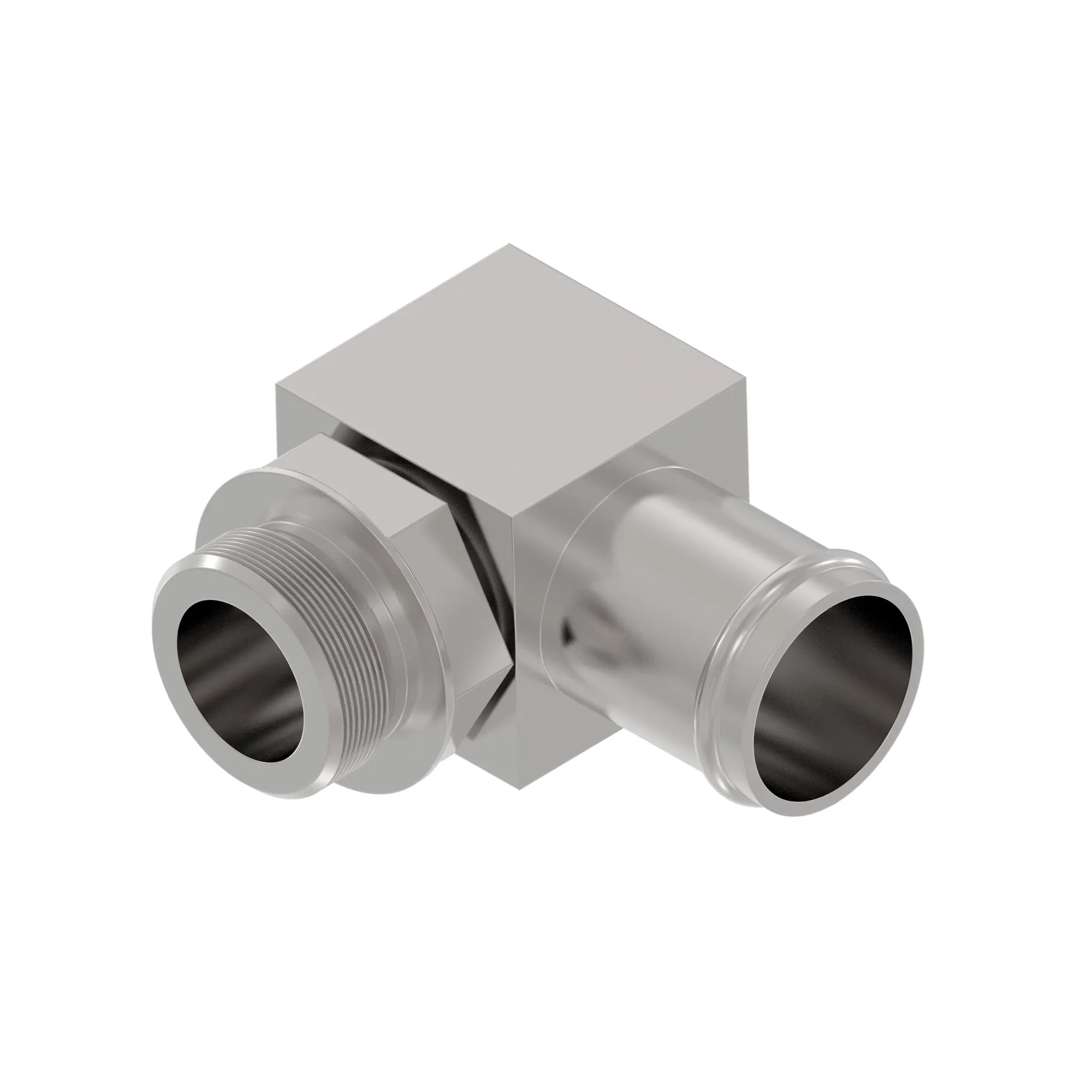

AN193089: Elbow Fitting

Part Number: AN193089

Parts Tier: Original

John Deere Elbow Fitting helps direct fluid for efficient routing within equipment systems
Provides a secure connection between compatible hoses, tubes, or components
Helps simplify routing in confined spaces by allowing directional changes without excessive hose or tube bending
Made of steel to provide strength and durability in demanding operating conditions
Designed for proper fit and easy installation on compatible John Deere equipment

Product Dimensions

Weight

0.87 lb

Height

1.8 in

Width

3.1 in

Length

3.2 in

Specifications

Thread Size

33.325 mm

Tube/Hose Inner Diameter (ID)

31.75 mm

Thread Type Code

Unified National Straight Thread

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

240
250
260
270
313
315
317
320
360DC
540G-II
540G-III
548G-II
548G-III
640G
648G
748G-II
748G-III
853J
853JH
903J
903JH
909JH
953J
9330
9410R
9430
9430T
9460R
9460RT
9510R
9510RT
9530
9530 SCRAPER
9530T
9560R
9560RT
9630
9630 SCRAPER
9630T
9970
CH950 TRACK
CH960 TRACK
CT315
CT322
