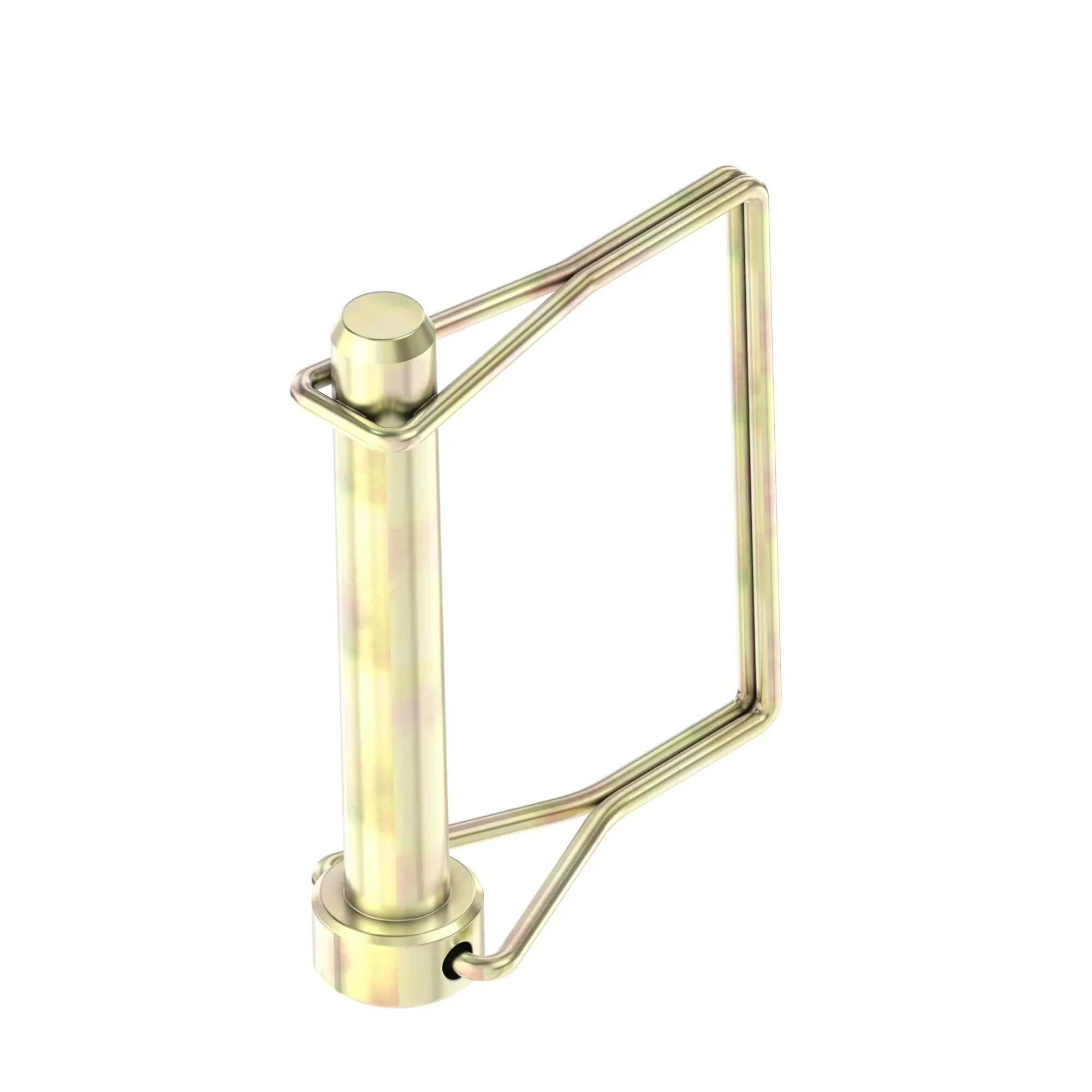

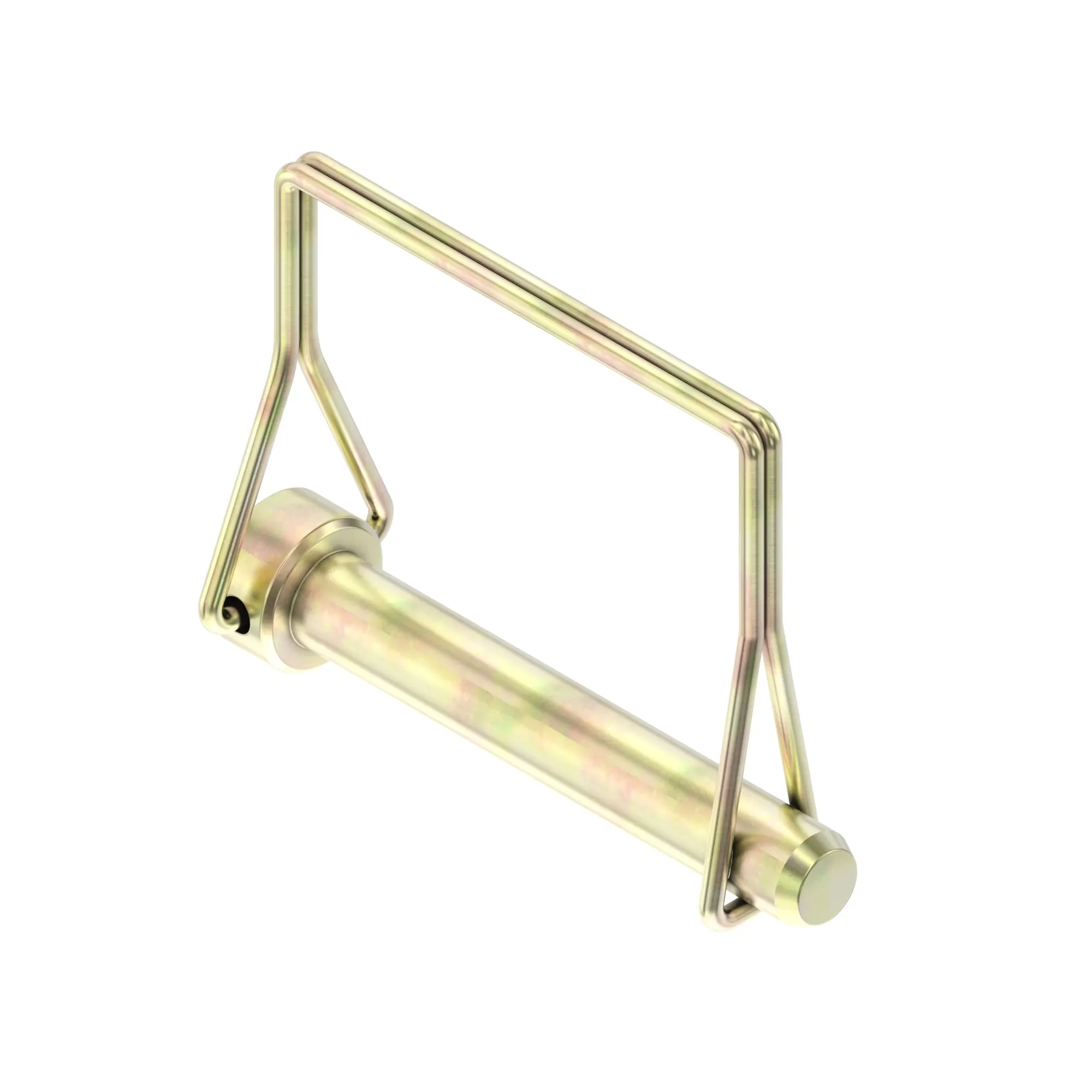

AN131764: Locking Pin Fastener

Part Number: AN131764

Parts Tier: Original

The Locking Pin Fastener is designed to securely hold components in place, ensuring stability and reliability in various applications
Key specifications include a length of 58.67 mm (2.31 in) and a diameter of 9.52 mm (3/8 in), ideal for precise fitting and secure fastening
Additional specification includes an internal diameter of 37.39 mm (1.47 in), enhancing its compatibility with various assemblies
Finished with a durable zinc coating for enhanced corrosion resistance and longevity

Product Dimensions

Weight

0.12 lb

Height

0.9 in

Width

2.2 in

Length

2.8 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

4X2
4X2 TRAIL
6X4
6X4 D
6X4 D TRAIL
6X4 TRAIL
625I
726
737
757
777
797
916
926
936
1570
1575
1580
1585
7260
7660
7760
9935
9970
9976
9986
9996
BUCK
BUCK 500
BUCK 650
BUCK EX
BUCK EXT
CP20
CP550
CP570
CP690
CP770
HPX 4X2
HPX 4X2 D
HPX 4X4
HPX 4X4 D
HPX 4X4 TRAIL
STRAIGHT BLADE
TD100
TH 6X4
TH 6X4 D
TRAIL BUCK 500
TRAIL BUCK 650
TS 4X2
TURF TX 4X2
TX 4X2
XUV825I
XUV850D
XUV855D
