AM136200: Lift Assist Extension Spring | Shop.Deere.com

1 Substitute part(s) available:

Substitute Products Table
Part NumberPart NamePrice (Select Dealer to view price)
AM136645AM136645: Implement Lift Extension Spring
  • Extension Spring
  • Extension Spring
  • Extension Spring
  • Extension Spring
  • Extension Spring
Original

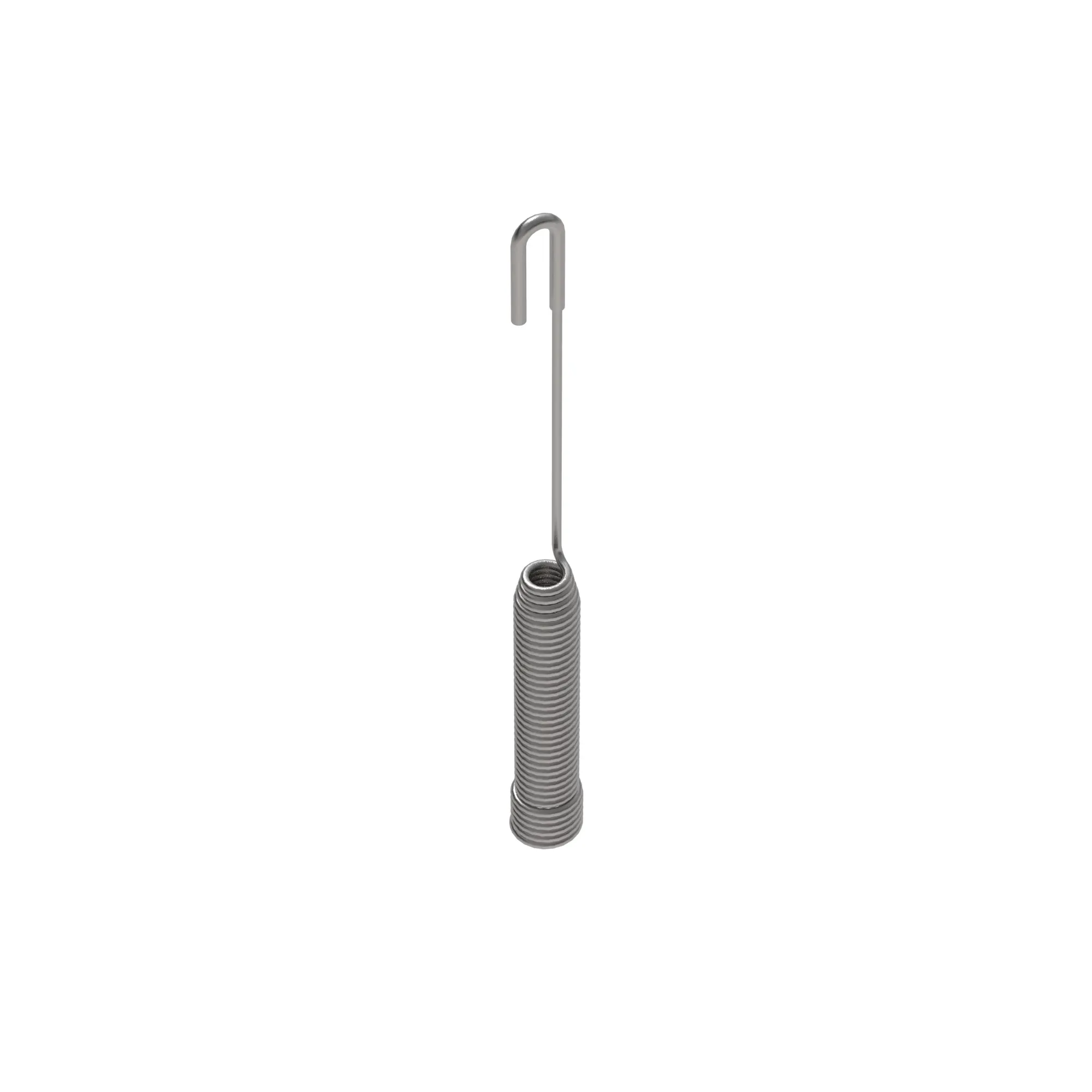

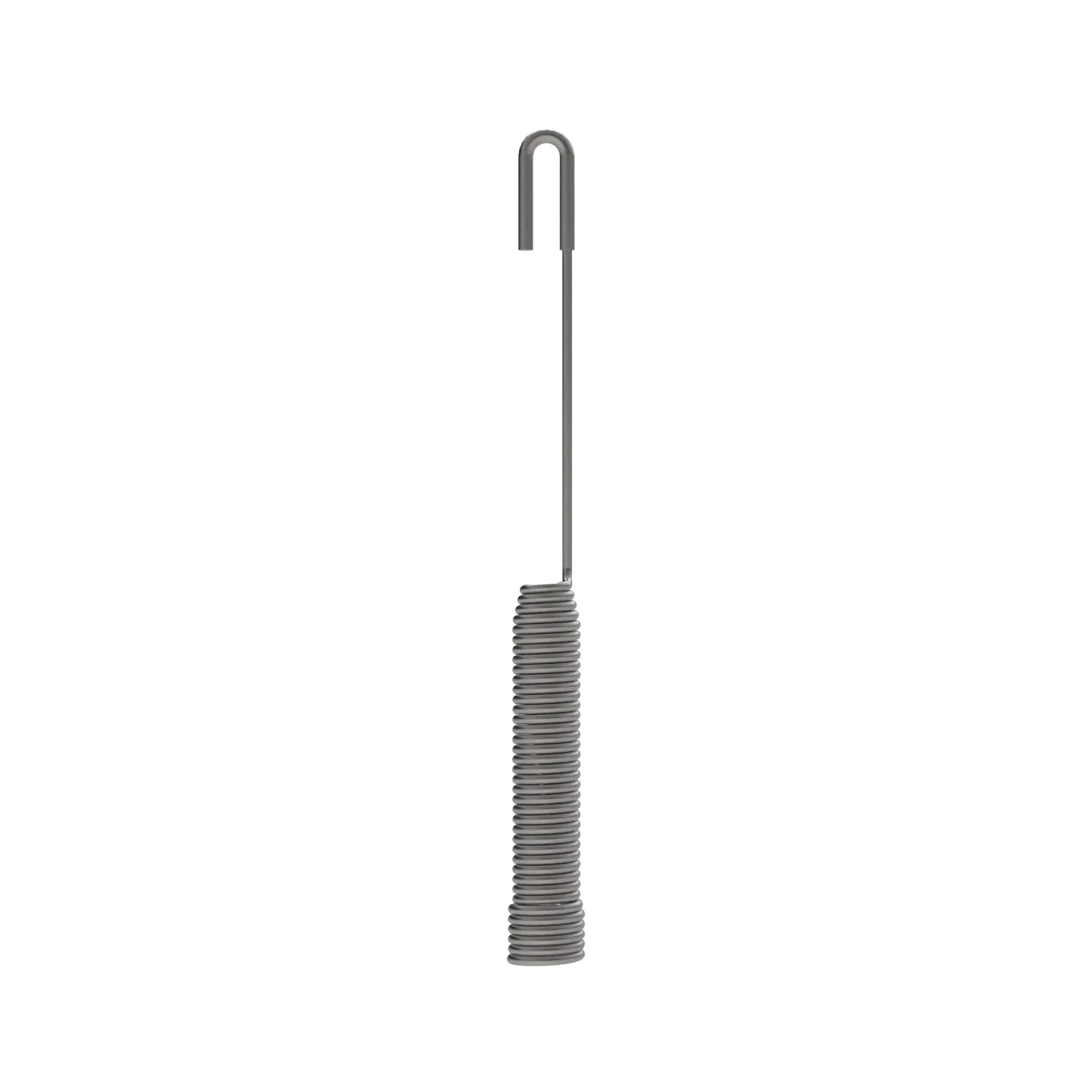

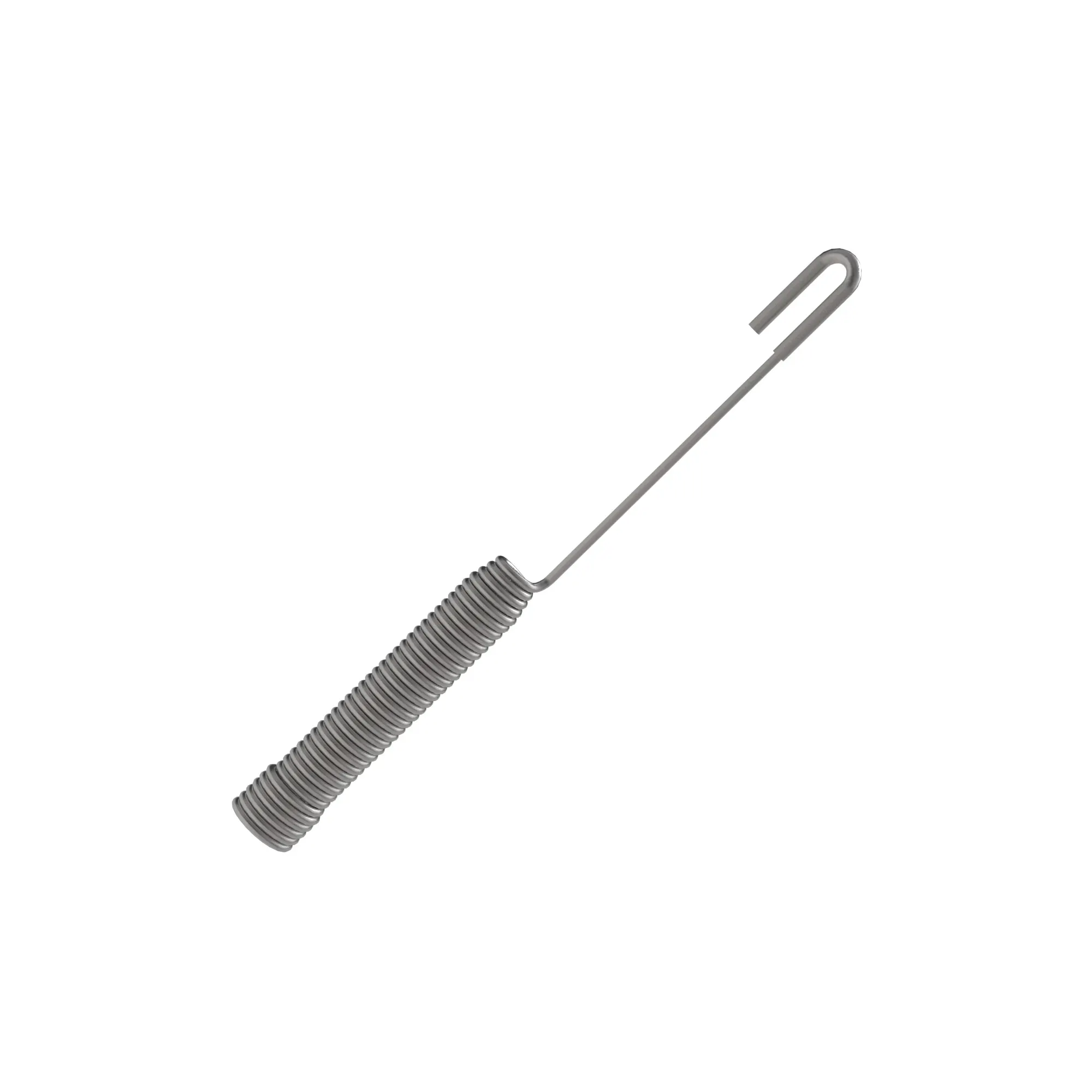

AM136200: Lift Assist Extension Spring

Part Number: AM136200

Parts Tier: Original

  • Extension Spring designed for providing tension and support in various mechanical applications
  • Features a wire diameter of 5.26 mm and an outer diameter of 41.14 mm, ideal for maintaining tension in machinery
  • Equipped with a free length of 438.44 mm and initial tension of 224.48 mm, ensuring reliable performance
  • Made from high quality alloy steel for durability and strength
  • Finished with a painted coating for enhanced protection against corrosion and wear

    Specifications

    Spring Rate
    7.8 N/mm
    End Type
    03/06
    Wire Diameter
    5.258 mm
    Total Coils
    37.75
    Spring Type
    Extension Spring
    Material
    Steel Alloy
    Outside Diameter
    41.14 mm
    Free Length
    438.44 mm
