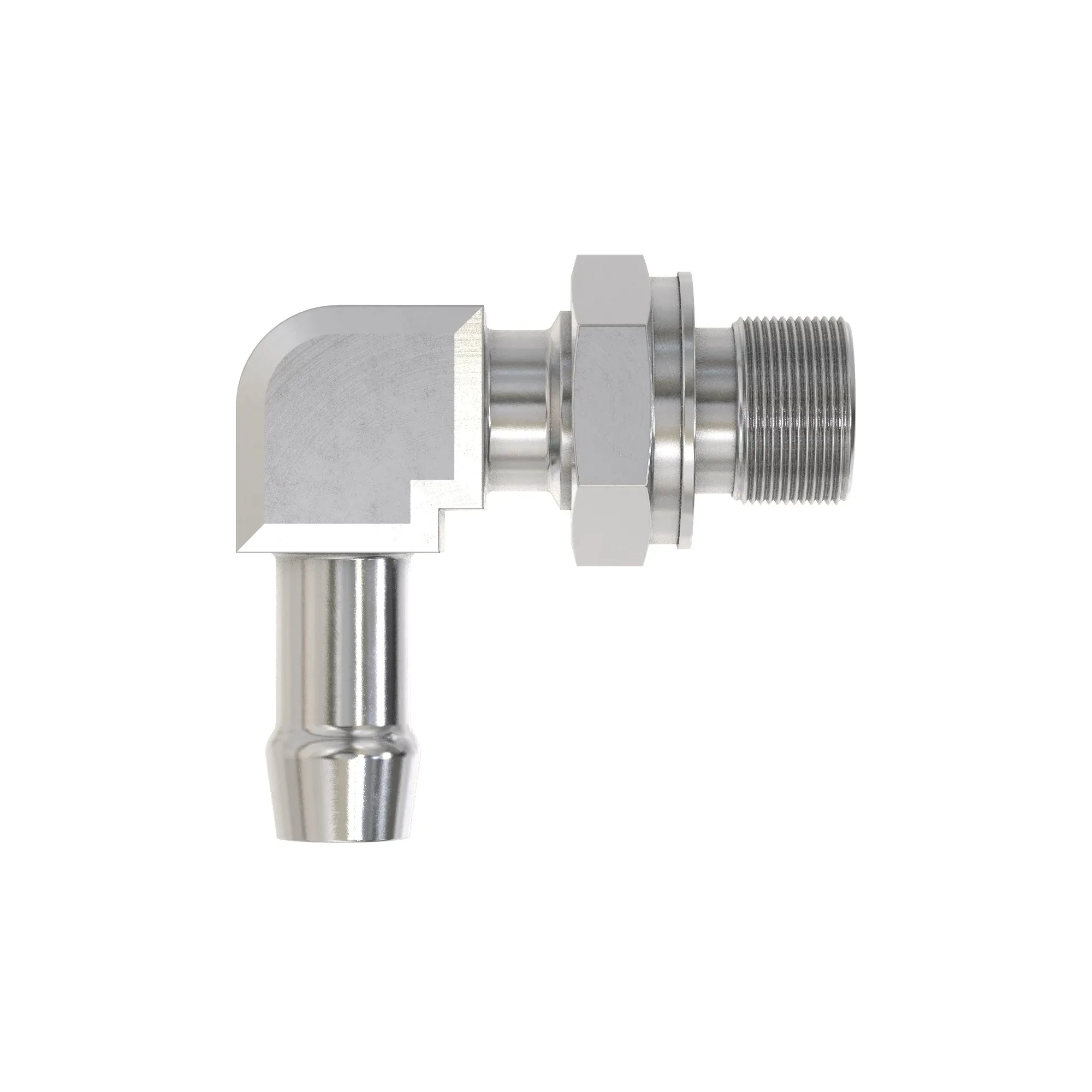

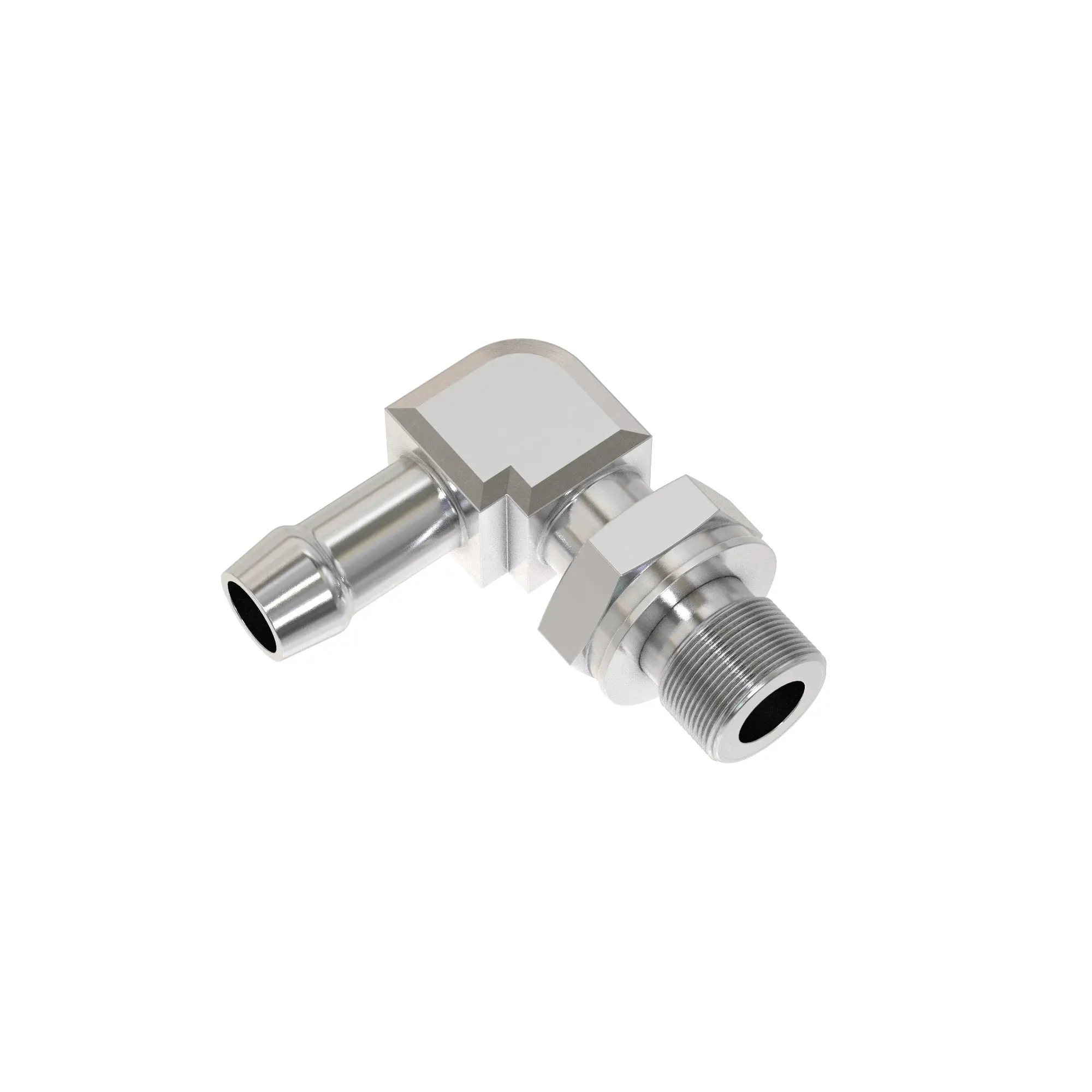

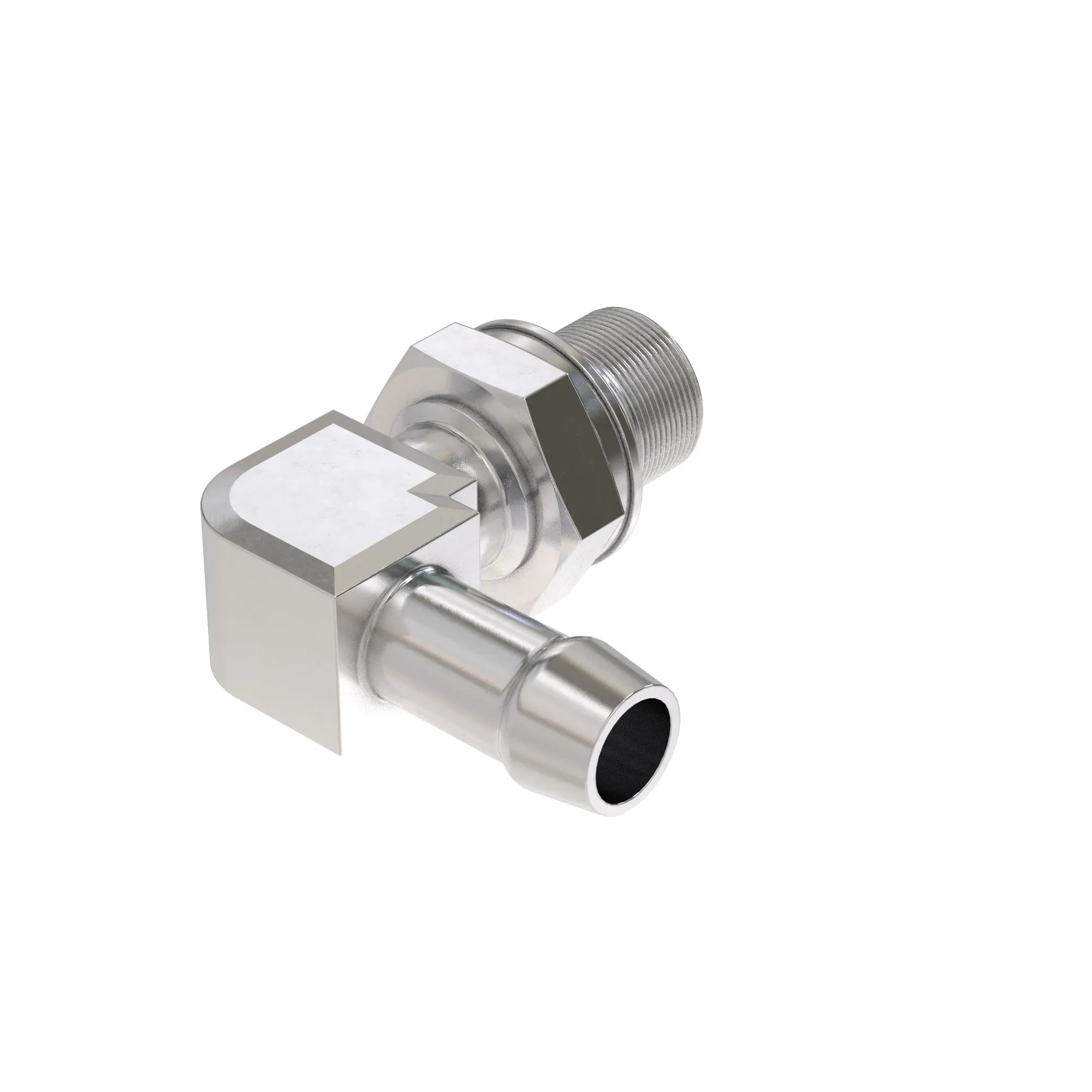

AL78652: Elbow Fitting

Part Number: AL78652

Parts Tier: Original

John Deere Elbow Fitting helps direct fluid for efficient routing within equipment systems
Provides a secure connection between compatible hoses, tubes, or components
Helps simplify routing in confined spaces by allowing directional changes without excessive hose or tube bending
Designed for proper fit and easy installation on compatible John Deere equipment

Product Dimensions

Weight

0.11 lb

Height

0.76 in

Width

1.53 in

Length

1.68 in

Specifications

Thread Size

14 mm

Tube/Hose Inner Diameter (ID)

9.5 mm

Thread Type Code

Metric Port Stud Thread
