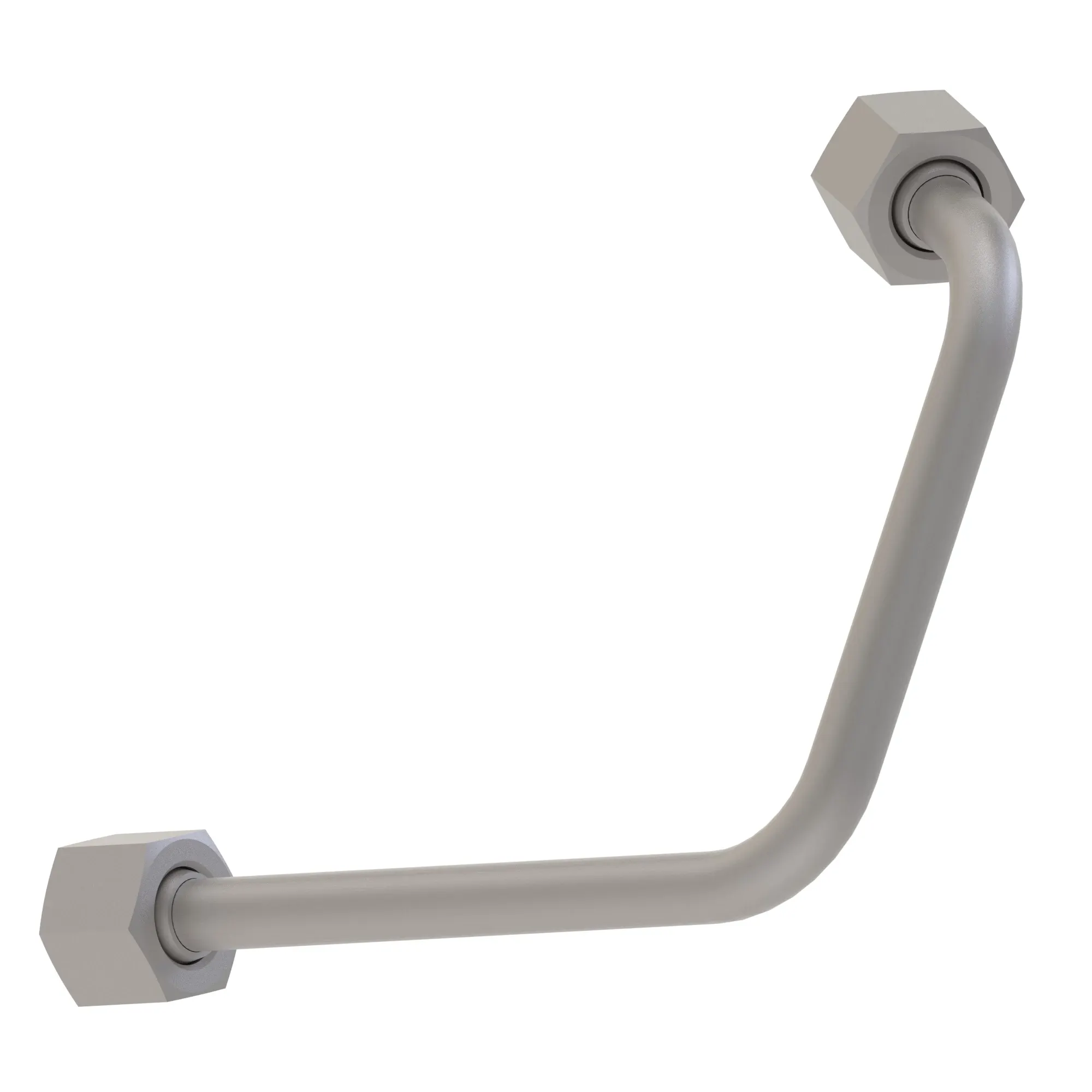

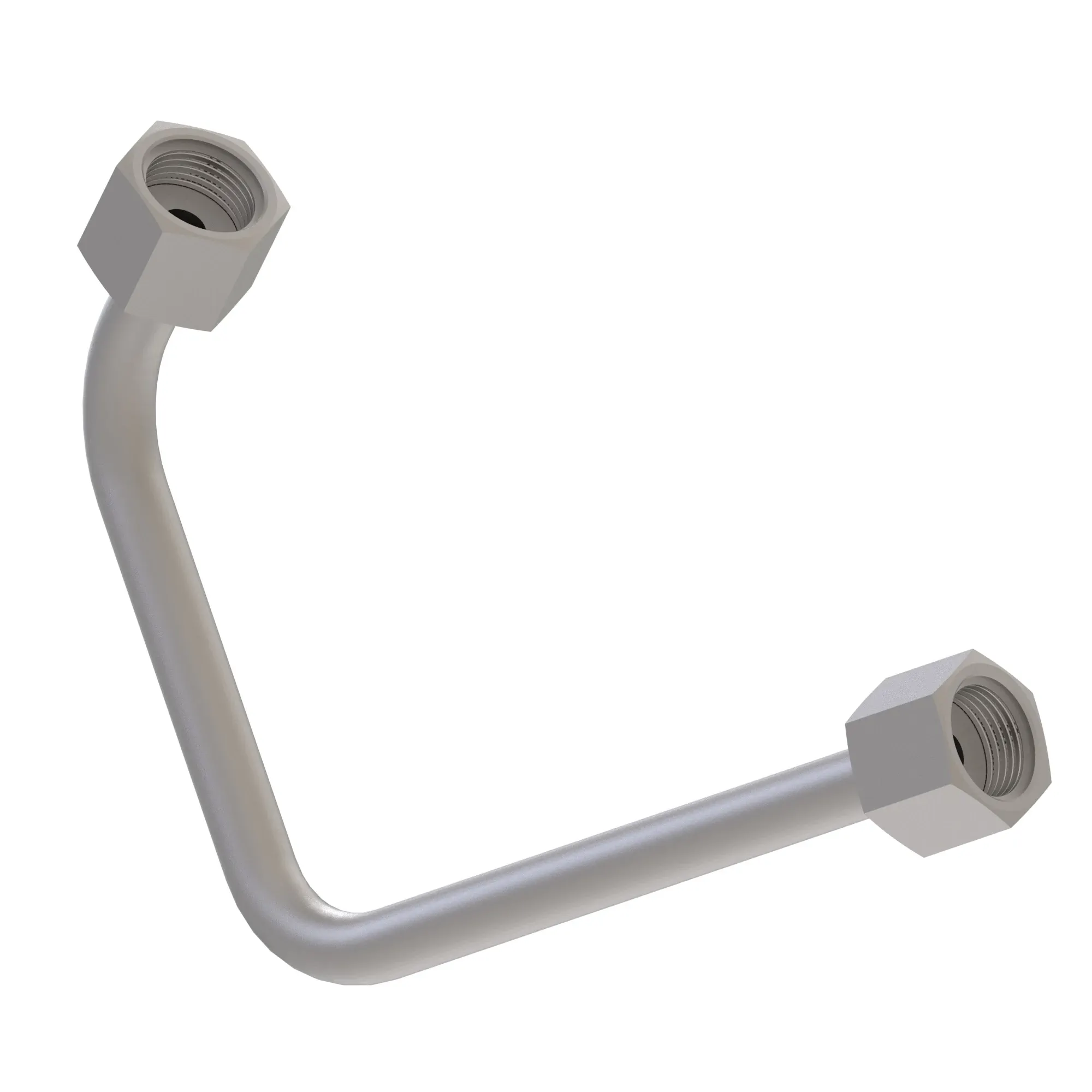

AL223696: TLS™ Oil Line

Part Number: AL223696

The right parts for your machine, every time

  • Designed to efficiently transport oil within machinery, ensuring optimal performance and reliability
  • Features a 10 mm (0.39 in) outer diameter tube with a wall thickness of 1.20 mm (0.05 in) for robust oil flow and durability
  • Includes SFZ61 type fittings on both ends and a centerline length of 231.73 mm (9.12 in) for precise installation
  • Made from high quality material for enhanced strength and longevity
  • Painted finish for added protection against corrosion and wear

    Product Dimensions

    Weight
    0.3 lb
    Height
    1 in
    Width
    7.5 in
    Length
    8.5 in

    Specifications

    Outer Diameter
    10 mm
    Application Type
    Oil Line
    Inner Diameter
    8.8 mm
    Wall Thickness
    1.2 mm
    Fittings Included
    Yes
    Overall Length (Crowflight)
    150.74 mm
