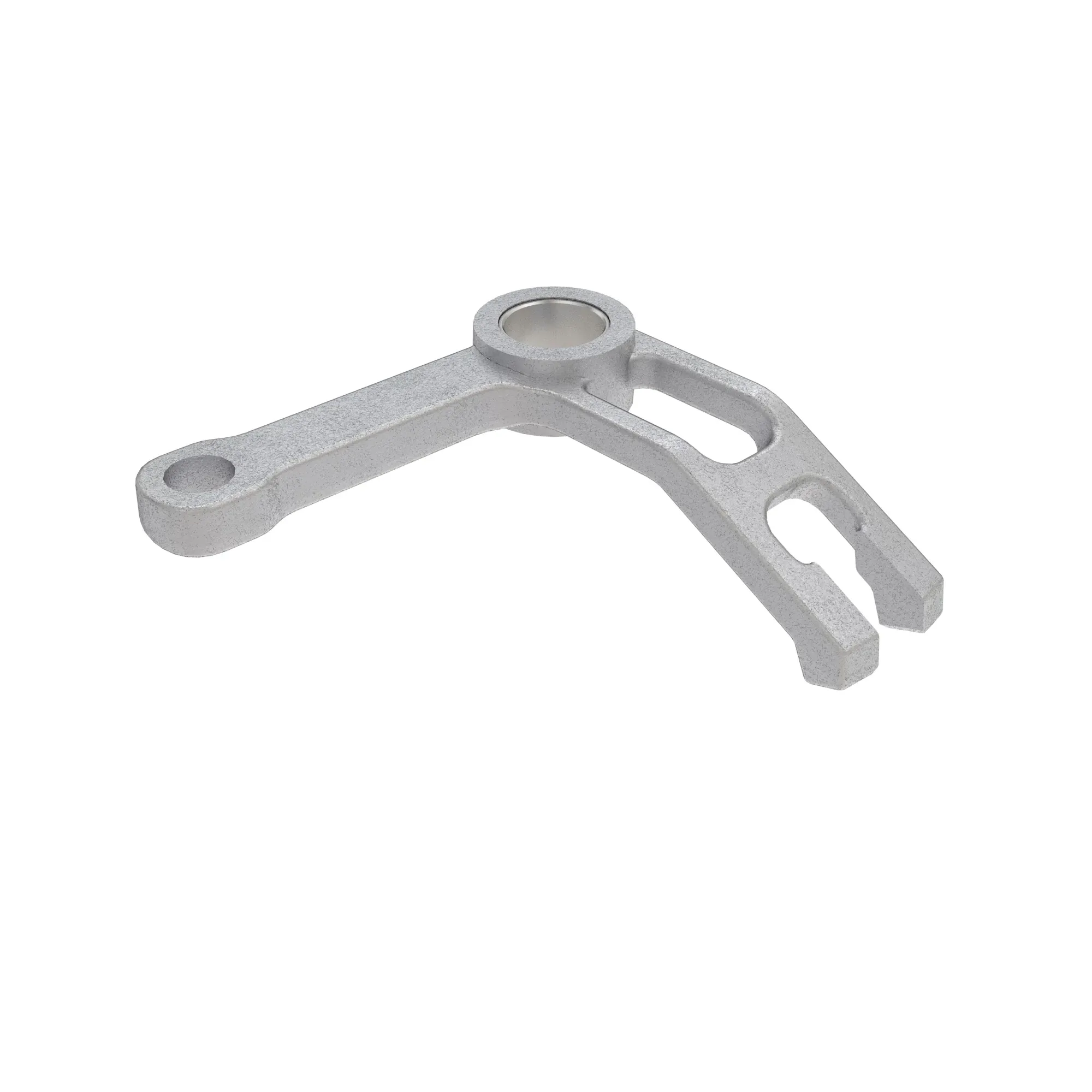

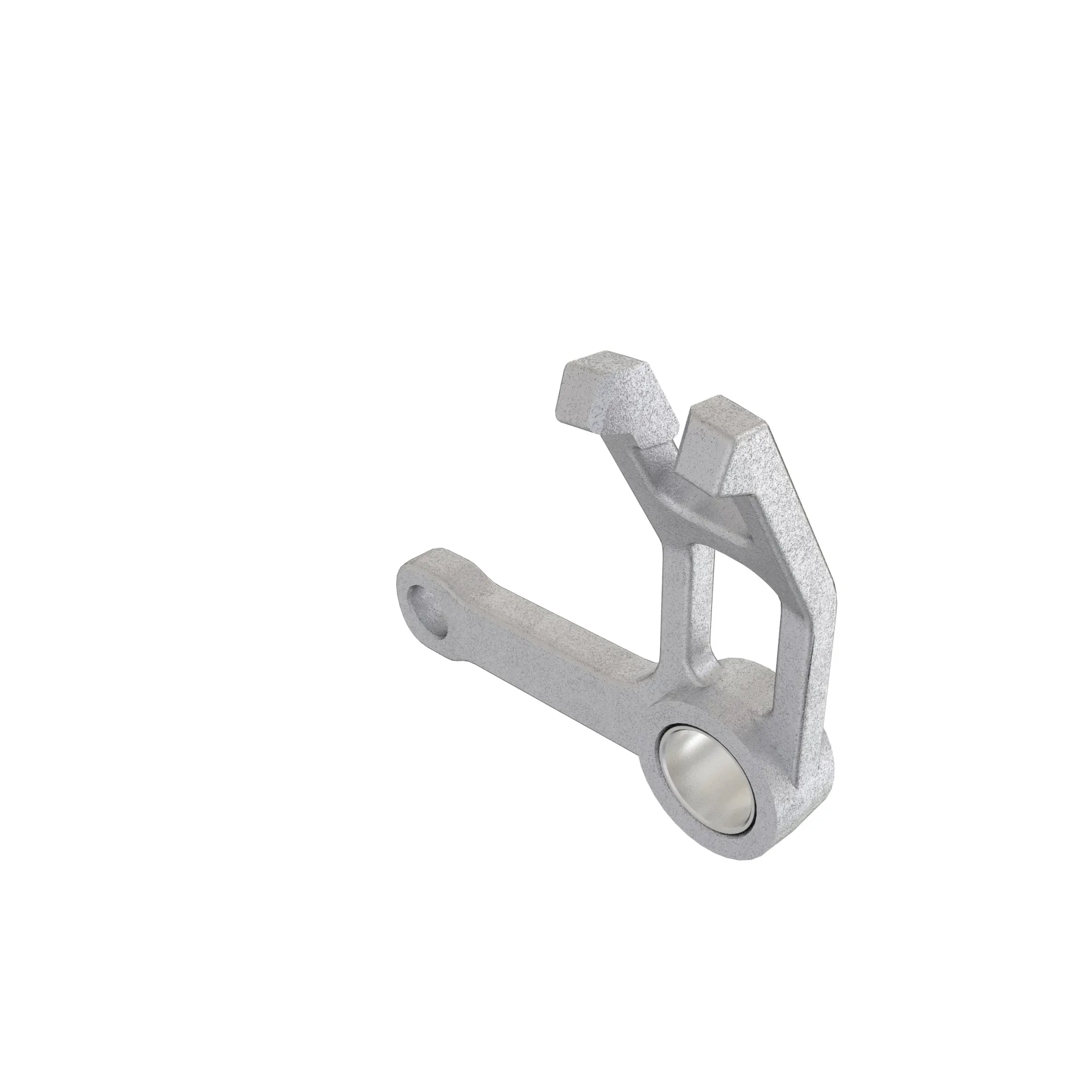

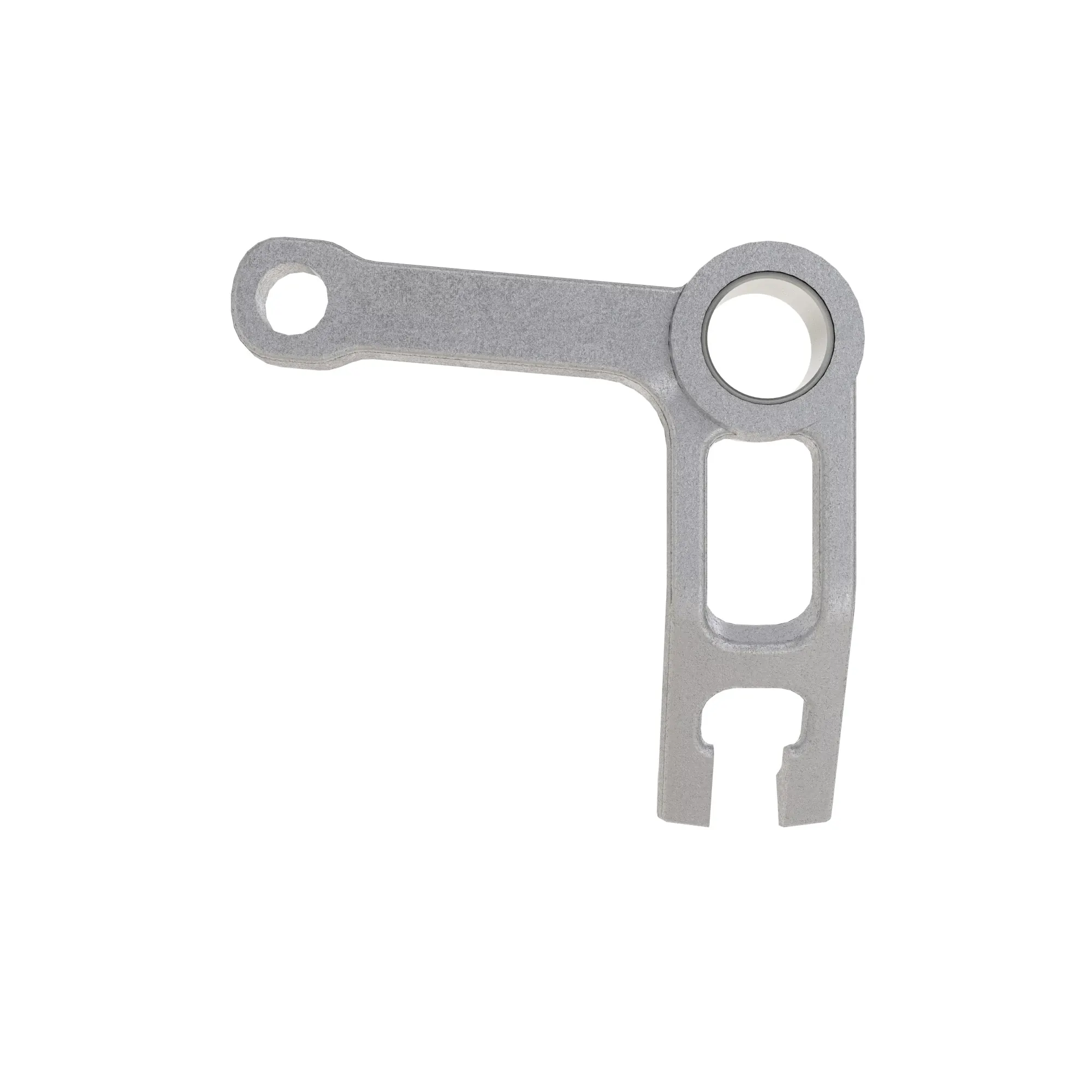

Name: AL153630: Quadrant
Brand: John Deere

Product Dimensions

Weight

1 lb

Height

1.3 in

Width

5.5 in

Length

8 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

6010
6020
6110
6120
6120L
6130
6210
6220
6220L
6230
6310
6320
6320L
6330
6410
6420
6420L
6420S
6430
6510
6520
6520L
6530
6610
6620
6630
6810
6820
6830
6910
6910S
6920
6920S
6930
7130
7220
7230
7320
7330
7420
7520
