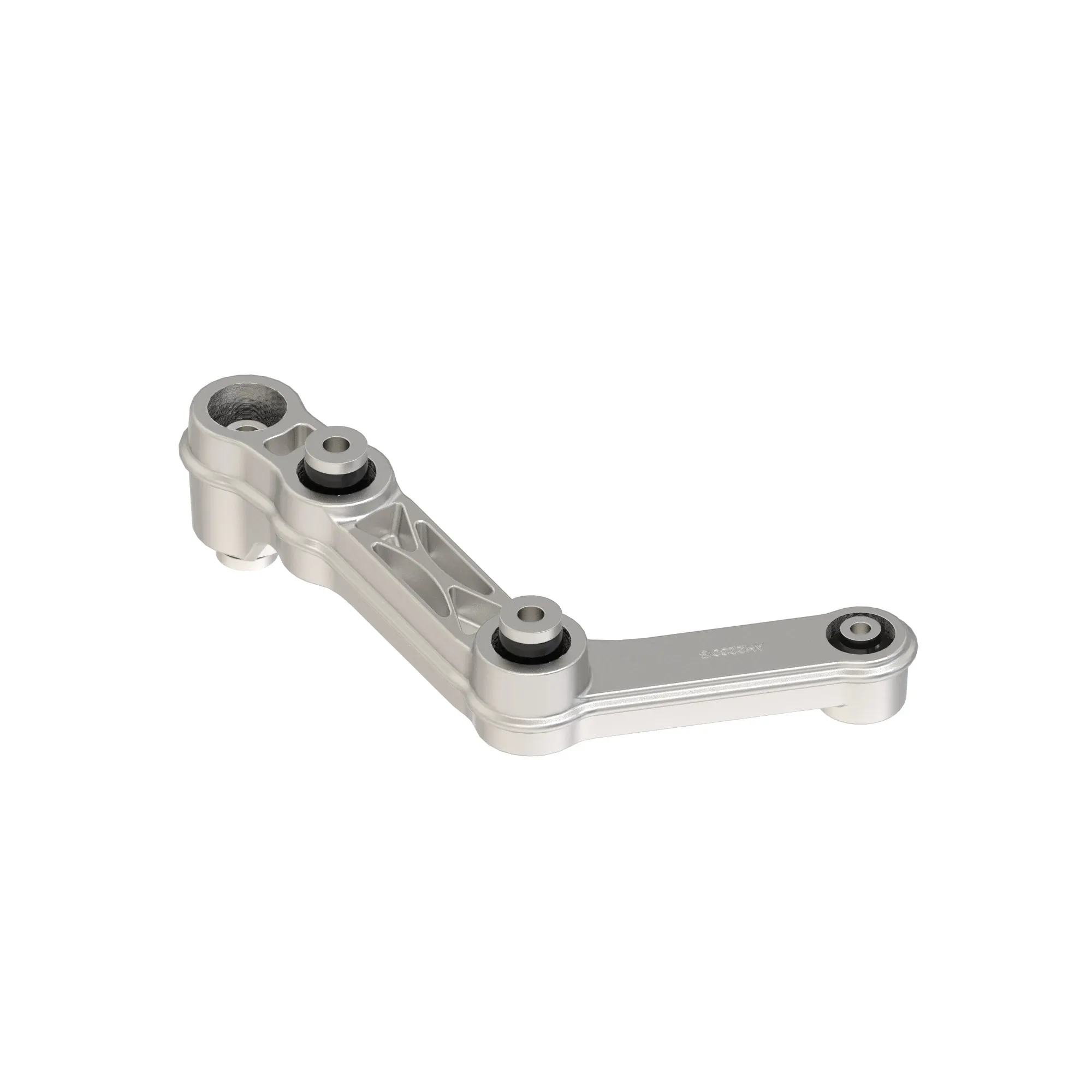

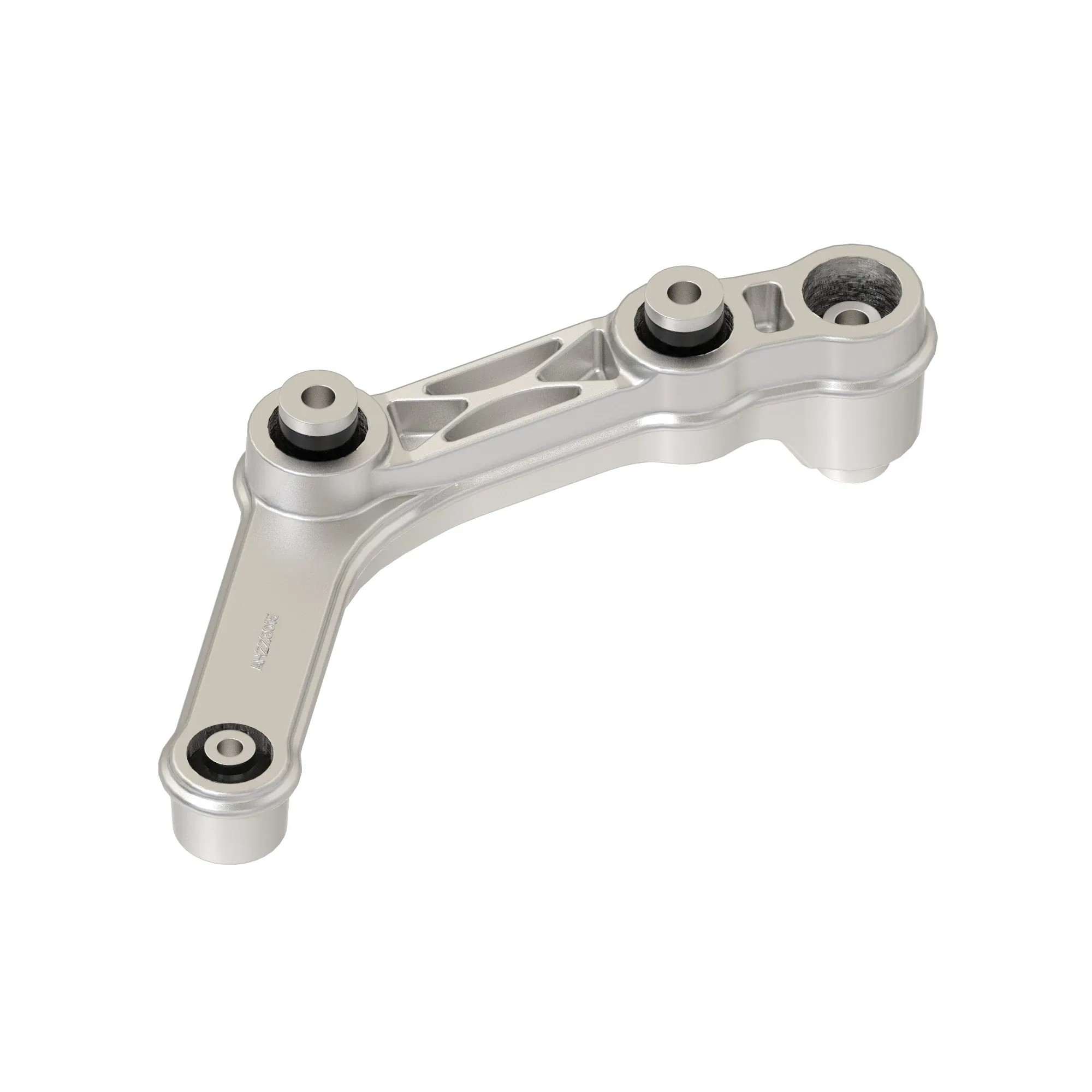

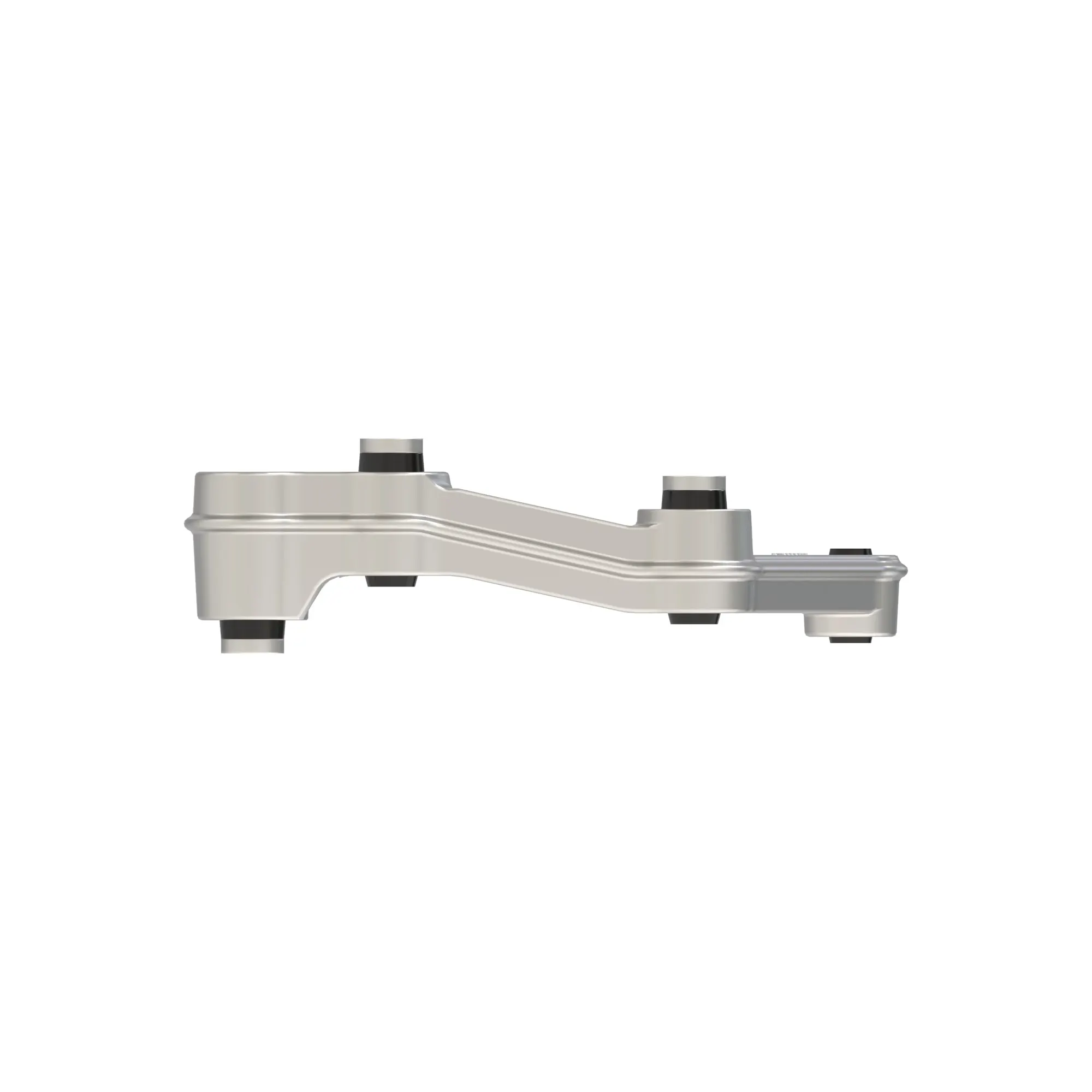

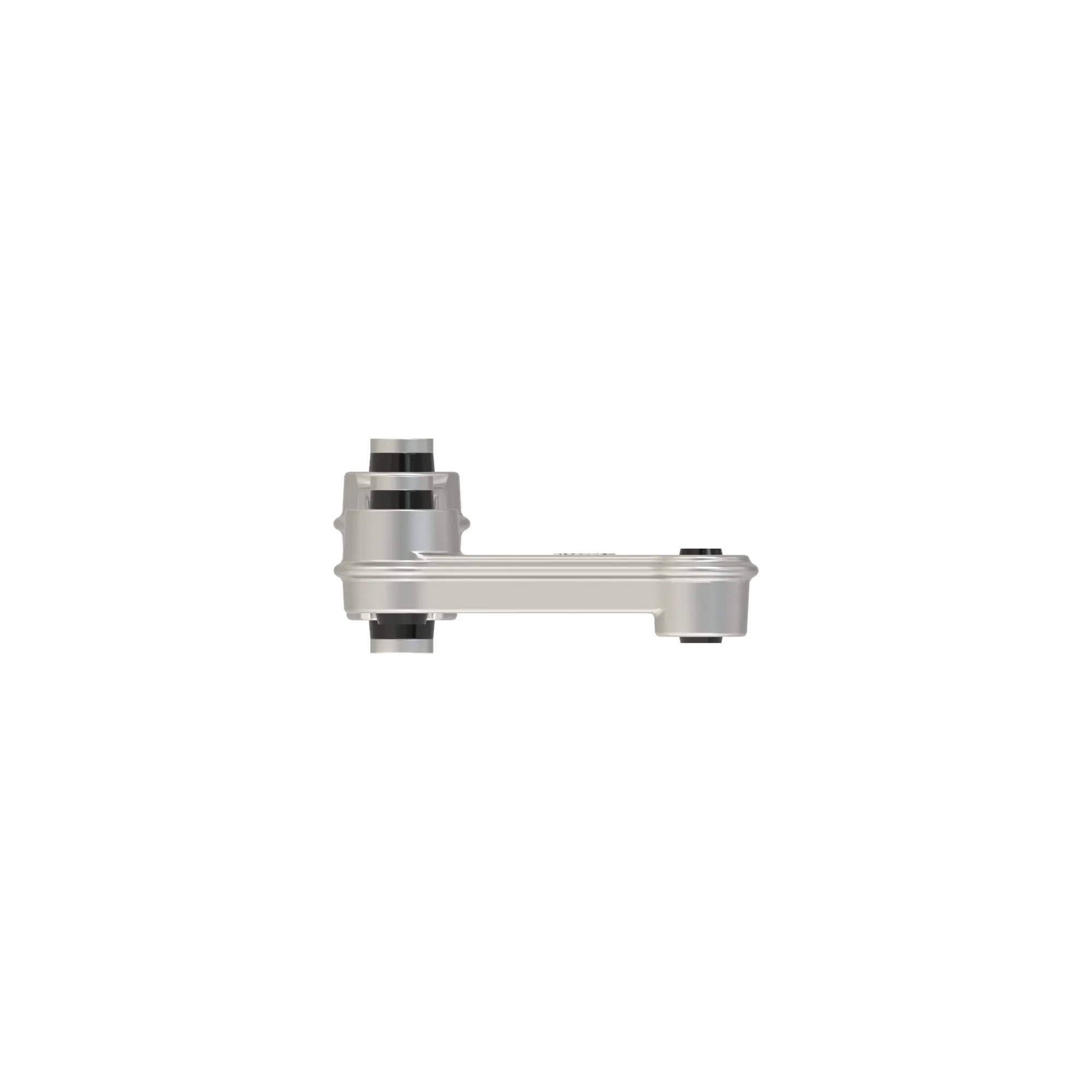

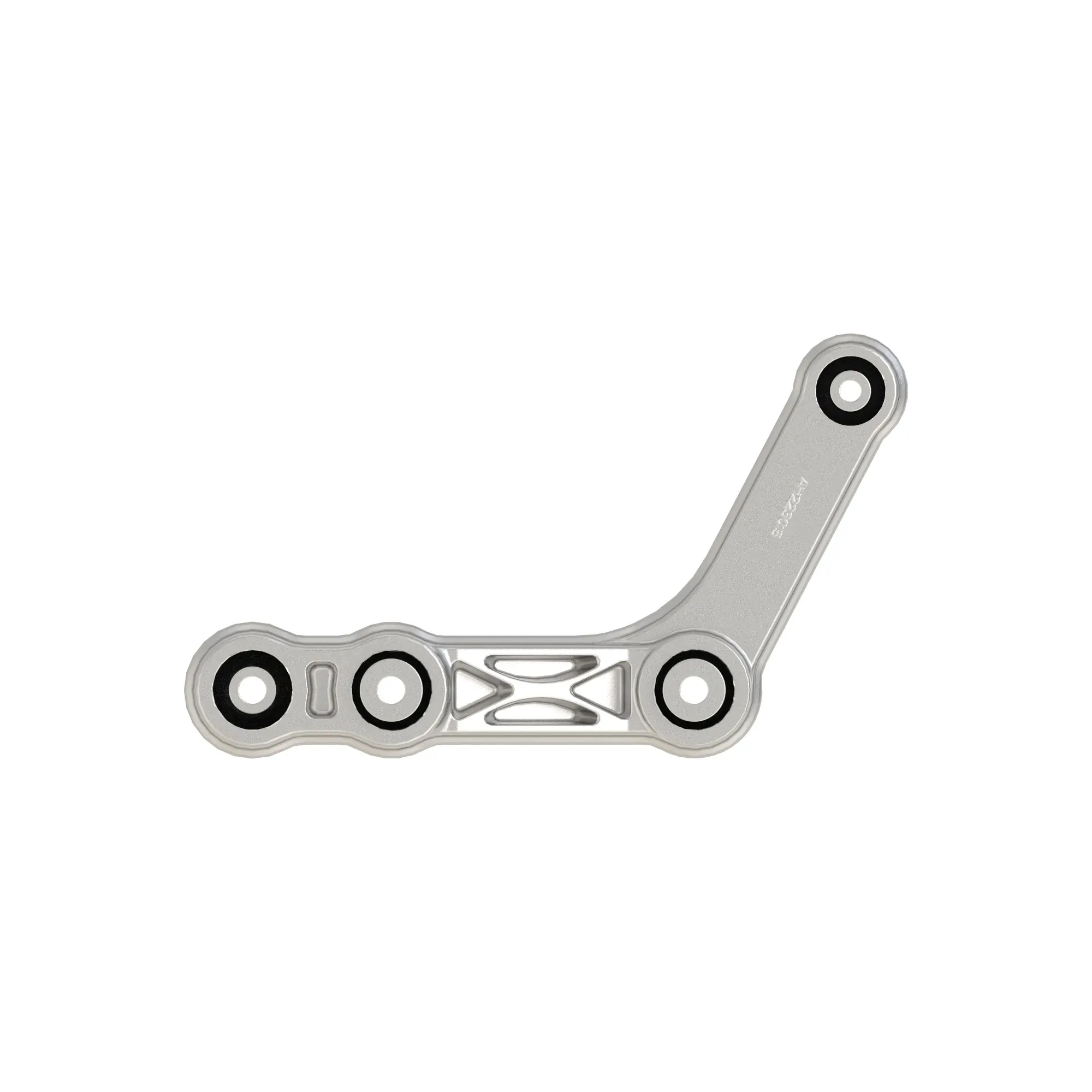

AH223015: Right Side Cleaning Shoe Chaffer Arm Assembly

Part Number: AH223015

Parts Tier: Original

The genuine John Deere arm transfers motion within the cleaning shoe chaffer, helping keep the connected components correctly positioned.
Precise geometry helps maintain accurate movement so the linked parts respond consistently to operator input.
A robust design supports smooth, repeatable motion under normal operating loads.

WARNING/ADVERTENCIA -Cancer and Reproductive Harm/Cáncer y Daño Reproductivo. www.p65warnings.ca.gov

Product Dimensions

Weight

11.11 lb

Height

5.8 in

Width

11 in

Length

16.8 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

S7 600
S7 700
S7 800
S7 850
S7 900
S650
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
