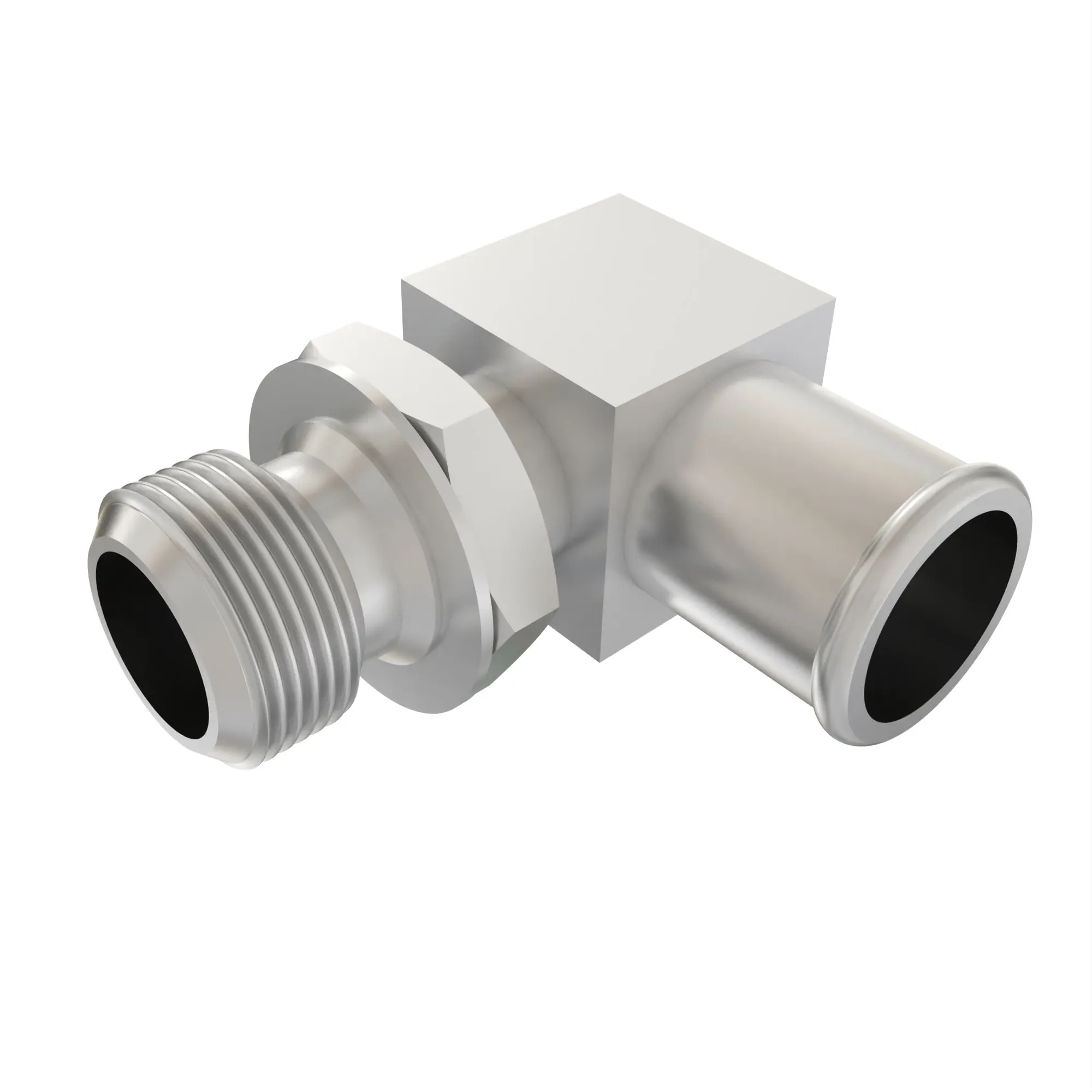

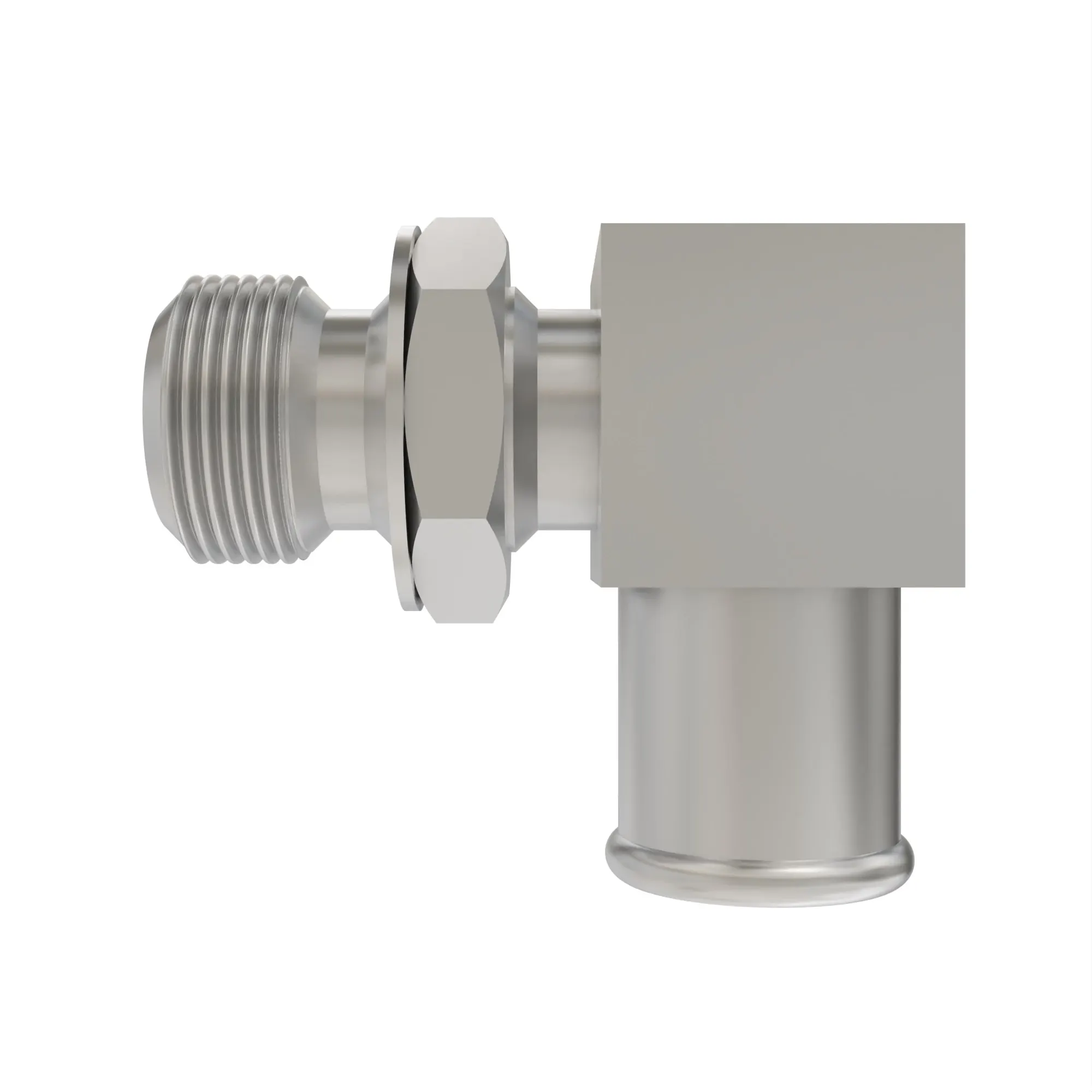

AH206095: Elbow Fitting

Part Number: AH206095

Parts Tier: Original

John Deere Elbow Fitting helps direct fluid for efficient routing within equipment systems
Provides a secure connection between compatible hoses, tubes, or components
Helps simplify routing in confined spaces by allowing directional changes without excessive hose or tube bending
Designed for proper fit and easy installation on compatible John Deere equipment

Product Dimensions

Weight

0.26 lb

Height

1.2 in

Length

1.4 in

Specifications

Thread Size

18 mm

Tube/Hose Inner Diameter (ID)

19.05 mm

Thread Type Code

Metric Port Stud Thread

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

210LJ
310SJ
310TJ
315J
325J
410J
748
4890
4895
4990
4995
6100D
6100E ROSARIO
6100E SALTILLO
6105E
6105EH
6110D
6110E ROSARIO
6110E SALTILLO
6115D
6115E
6120E
6120EH
6125D
6125E ROSARIO
6125E SALTILLO
6130D
6130E SALTILLO
6140D
6140E
6403
6403HC
6603
6803
7200R
7215R
7230R
7260R
7280R
7460
9450
9470 STS
9550
9560
9560 STS
9570 STS
A400
R450
S5 500
S540
S550
S560
S690
T550
W200M
W235
W235M
W235R
W260
W260M
W260R
W540
W550
W650
X9 1000
X9 1000 PRECISION UPGRADES
X9 1100
X9 1100 PRECISION UPGRADES
