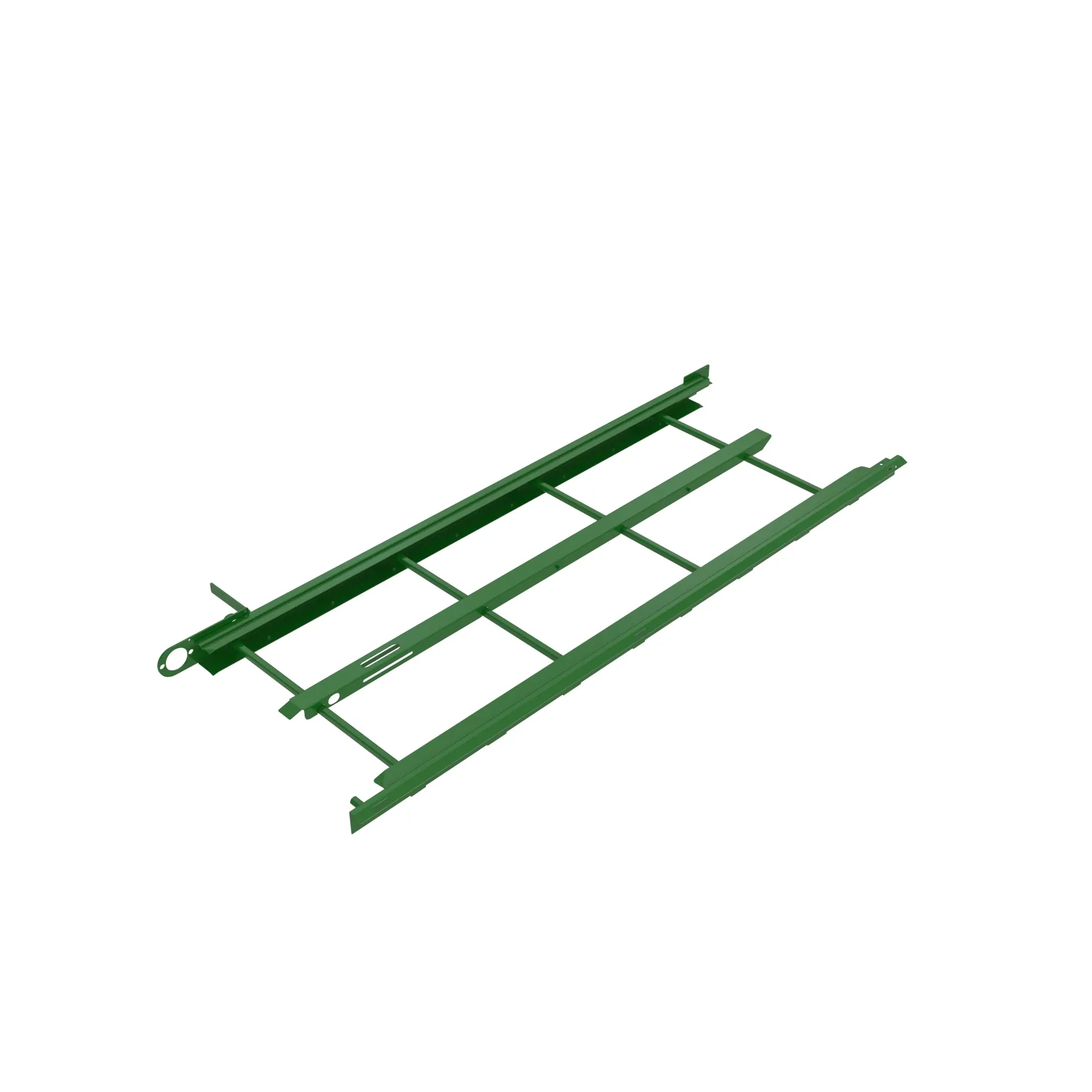

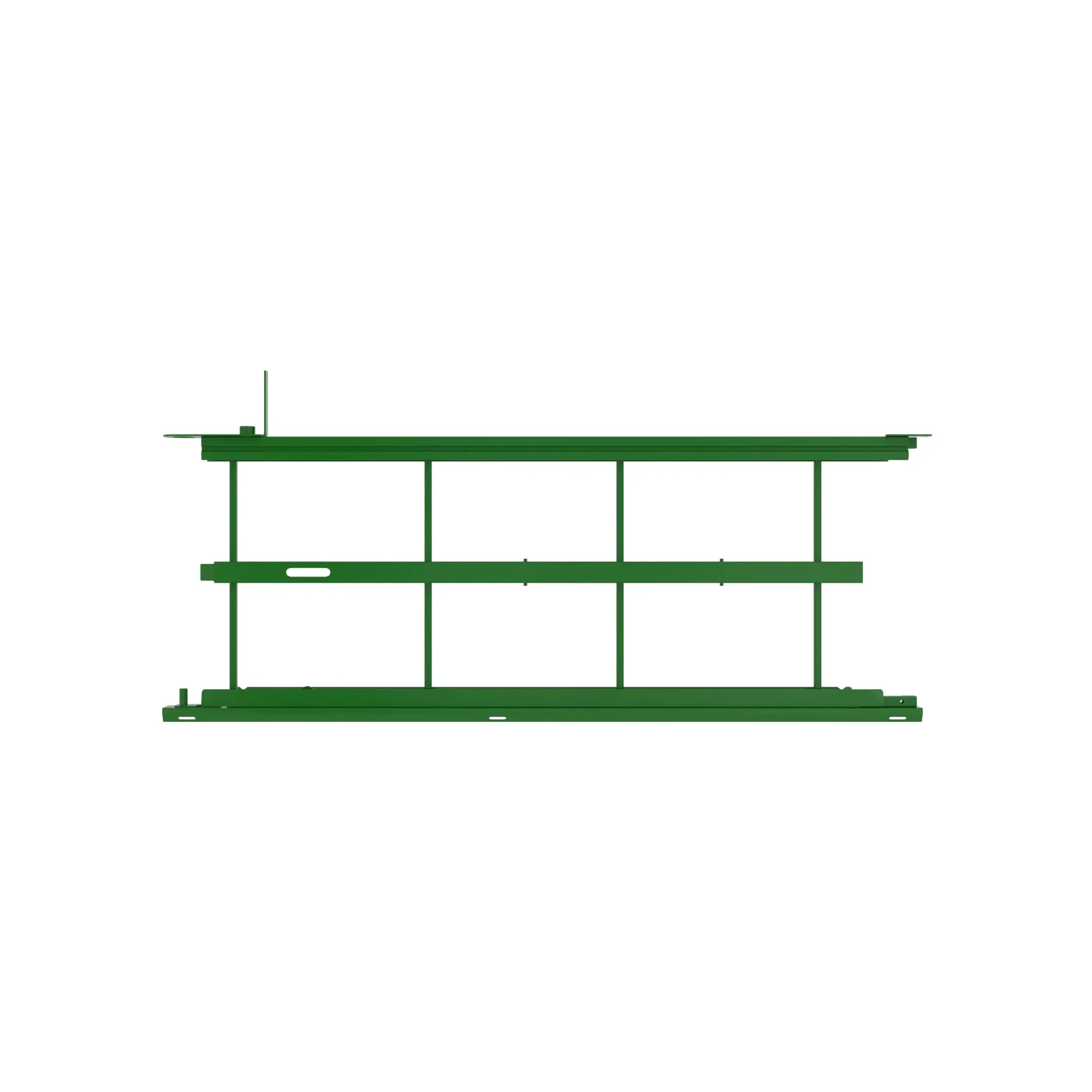

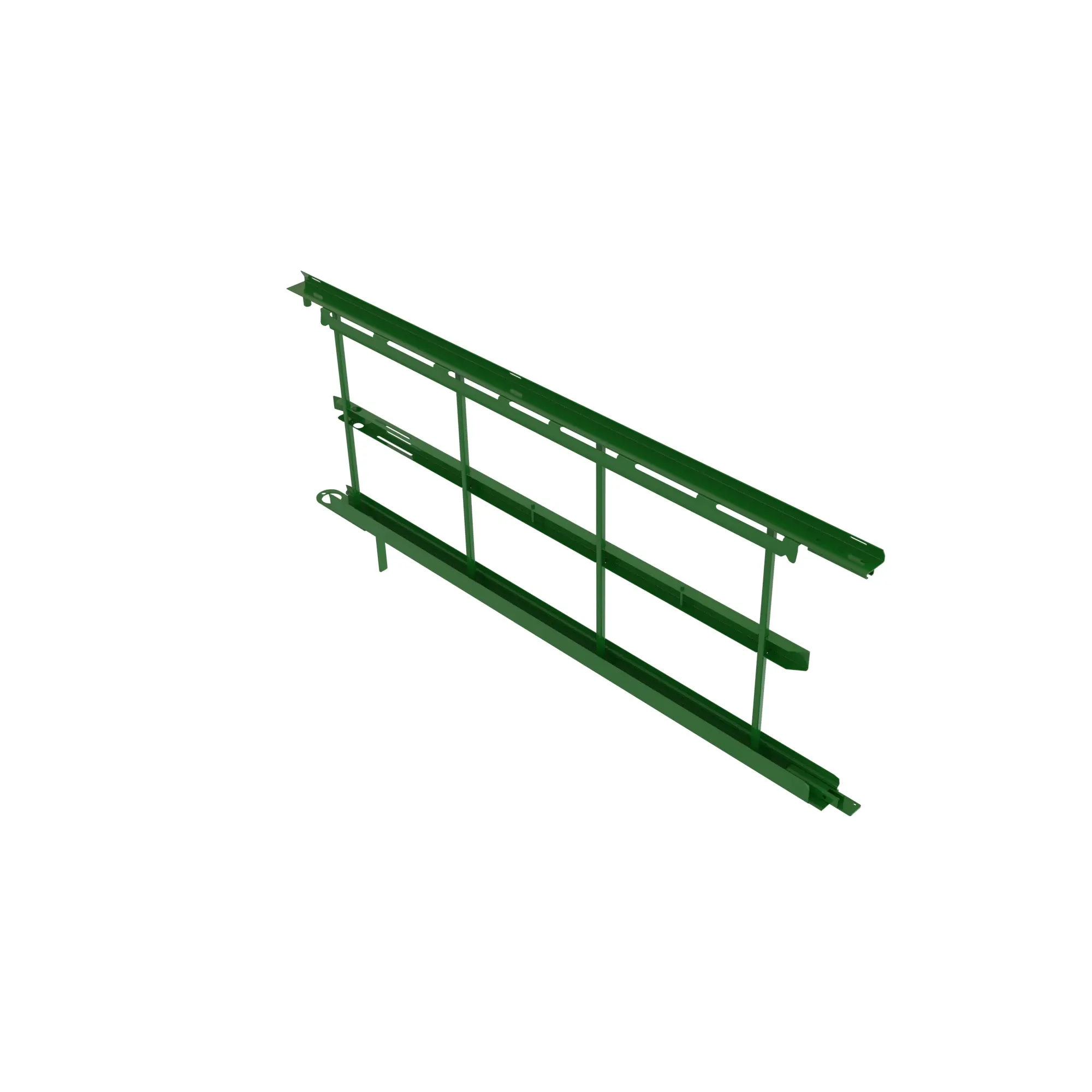

AH159560: Side Draper Frame
Part Number: AH159560
Parts Tier: Original
- John Deere Frame creates a reliable base for the Side Draper Frame, helping draper and belt components stay secure under working loads
- Maintains correct fit for draper and belt components within the belt and deck support structure to support crop feeding alignment within the related assembly location
- Constructed for demanding use, the Side Draper Frame supports draper and belt components through component stress
- Maintains equipment integrity by supporting the fit and position of draper and belt components for the intended equipment configuration
Product Dimensions
Weight
181 lb
Height
10 in
Width
56.5 in
Length
115.5 in
