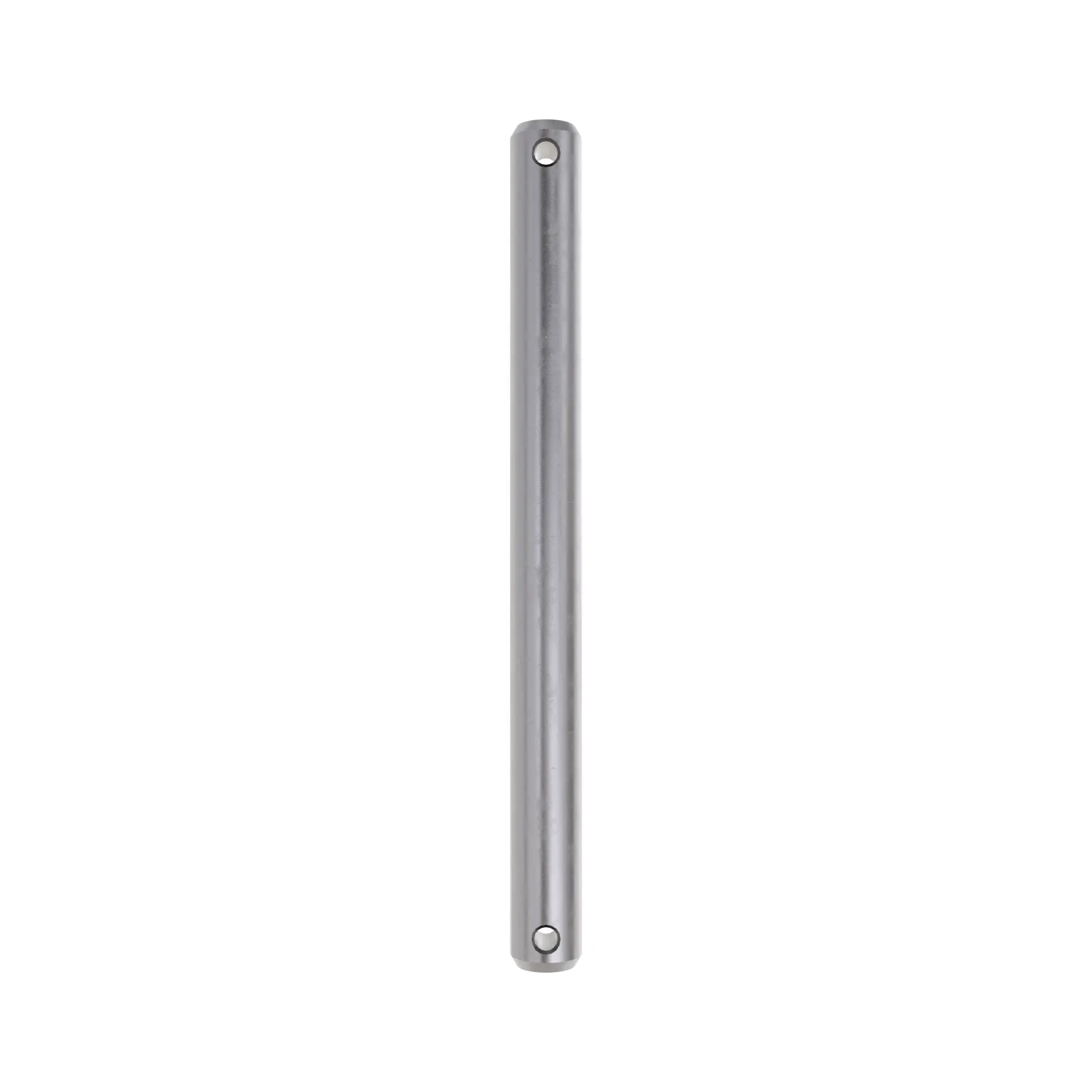

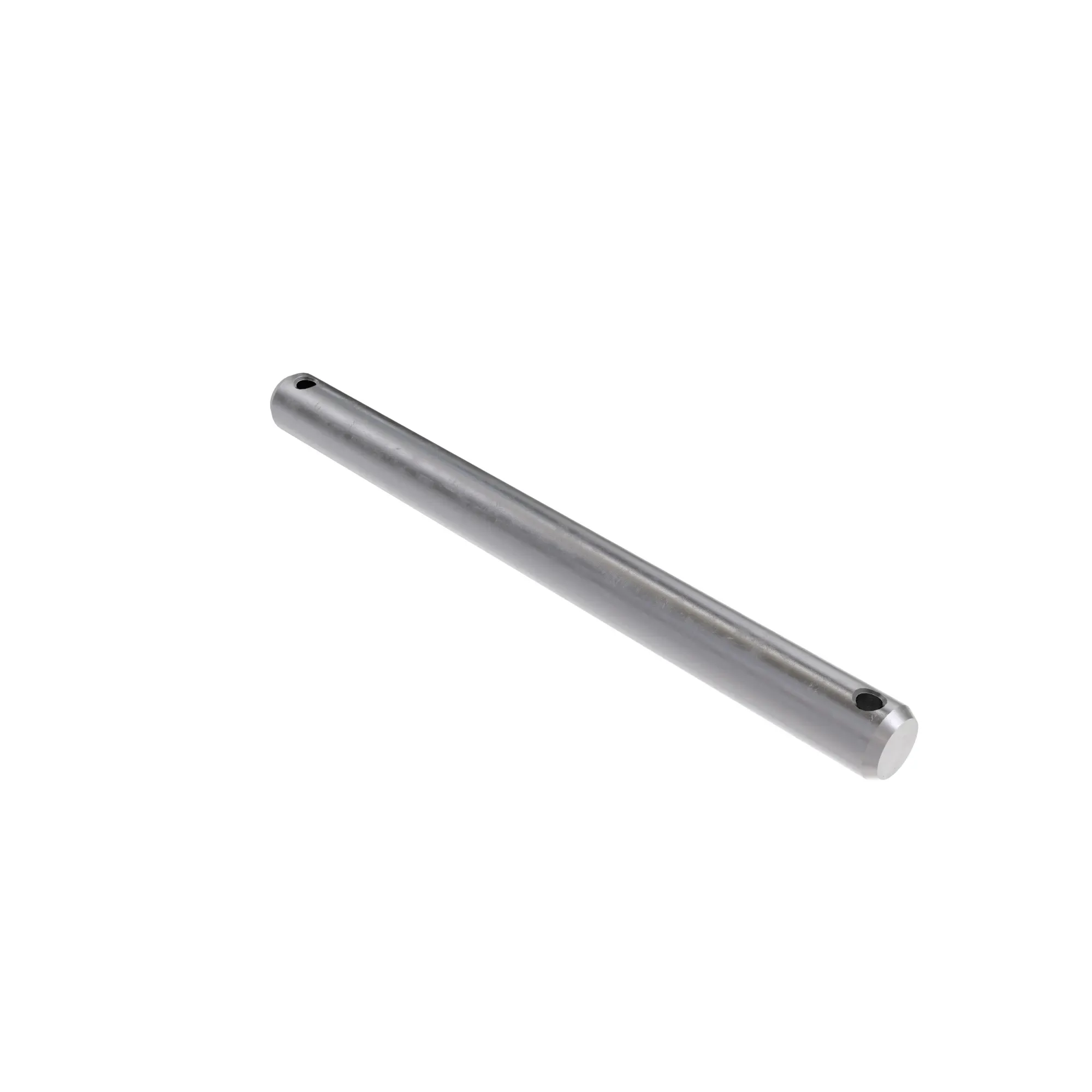

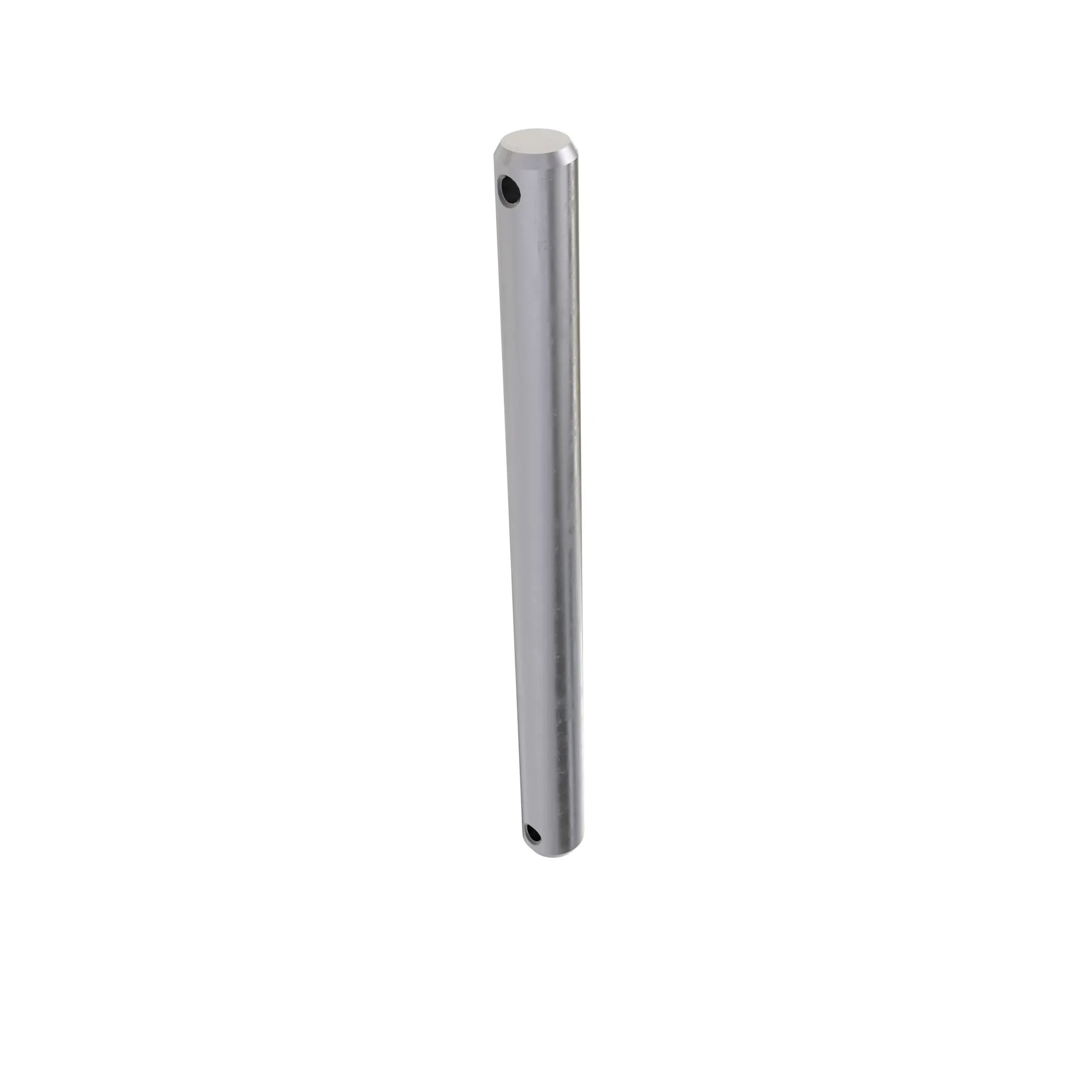

A97824: Drilled Pin

Part Number: A97824

Parts Tier: Original

Designed for secure and precise alignment, this drilled pin is ideal for various heavy-duty applications
Key specs: 31.75 mm (1 1/4 in) diameter, 370 mm (14 9/16 in) overall length, 340 mm (13.39 in) length between holes
Additional specs: 15 mm (0.59 in) length from hole to end, 10.07 mm (0.4 in) hole diameter, 1 mm (0.04 in) point/chamfer length
Made from high quality general steel for durability and strength
Features a heat treated and plated finish for enhanced resistance to wear and corrosion

Product Dimensions

Weight

4.96 lb

Height

1.25 in

Length

14.5 in

Specifications

Thread Size

1.25 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

1910
1910 250L PRECISION UPGRADES
1910 250T PRECISION UPGRADES
1910 270L PRECISION UPGRADES
1910 270T PRECISION UPGRADES
1910 340T PRECISION UPGRADES
1910 350L PRECISION UPGRADES
1910 350T PRECISION UPGRADES
1910 430L PRECISION UPGRADES
1910 430T PRECISION UPGRADES
1910 550T PRECISION UPGRADES
N530C
N540C
N542C
