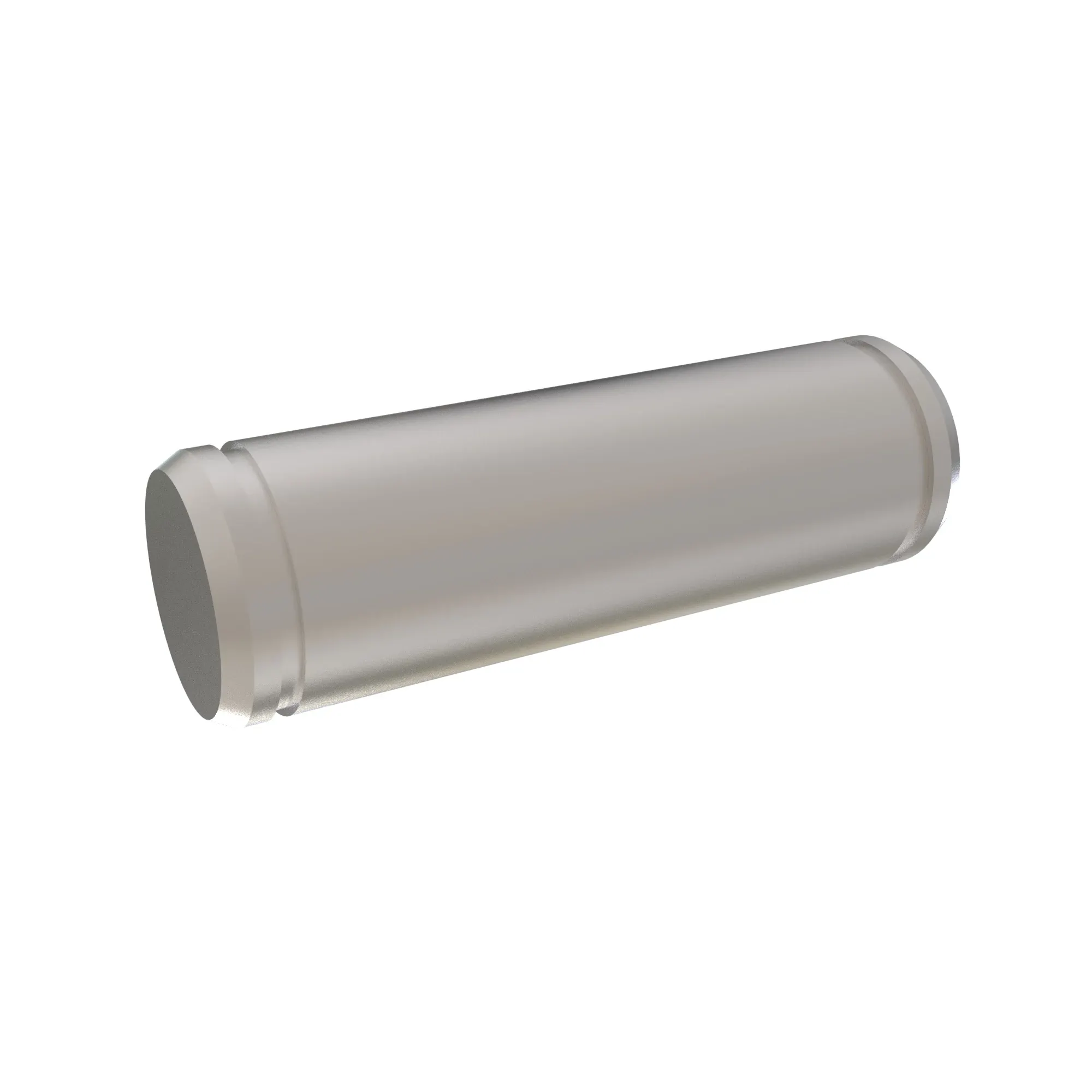

A76588: Circular Groove Pin
Part Number: A76588
Parts Tier: Original
- Circular Groove Pin designed for secure fastening and alignment in mechanical assemblies
- Key specs: 31.75 mm (1 1/4 in) diameter, 100 mm (3.94 in) length, 8.62 mm (0.34 in) groove location, 29.77 mm (1.17 in) groove diameter
- Additional specs: 2.62 mm (0.1 in) groove width, 82.76 mm (3 1/4 in) distance between grooves, 45-degree chamfer
- Made from high quality material for durability and strength
- Features a heat treated and plated finish for enhanced corrosion resistance and longevity
Product Dimensions
Weight
1.34 lb
Height
1.2 in
Length
3.9 in
Specifications
Chamfer Degree
45
Length
100 mm
Material
Carbon Steel
Body Diameter
31.75 mm
