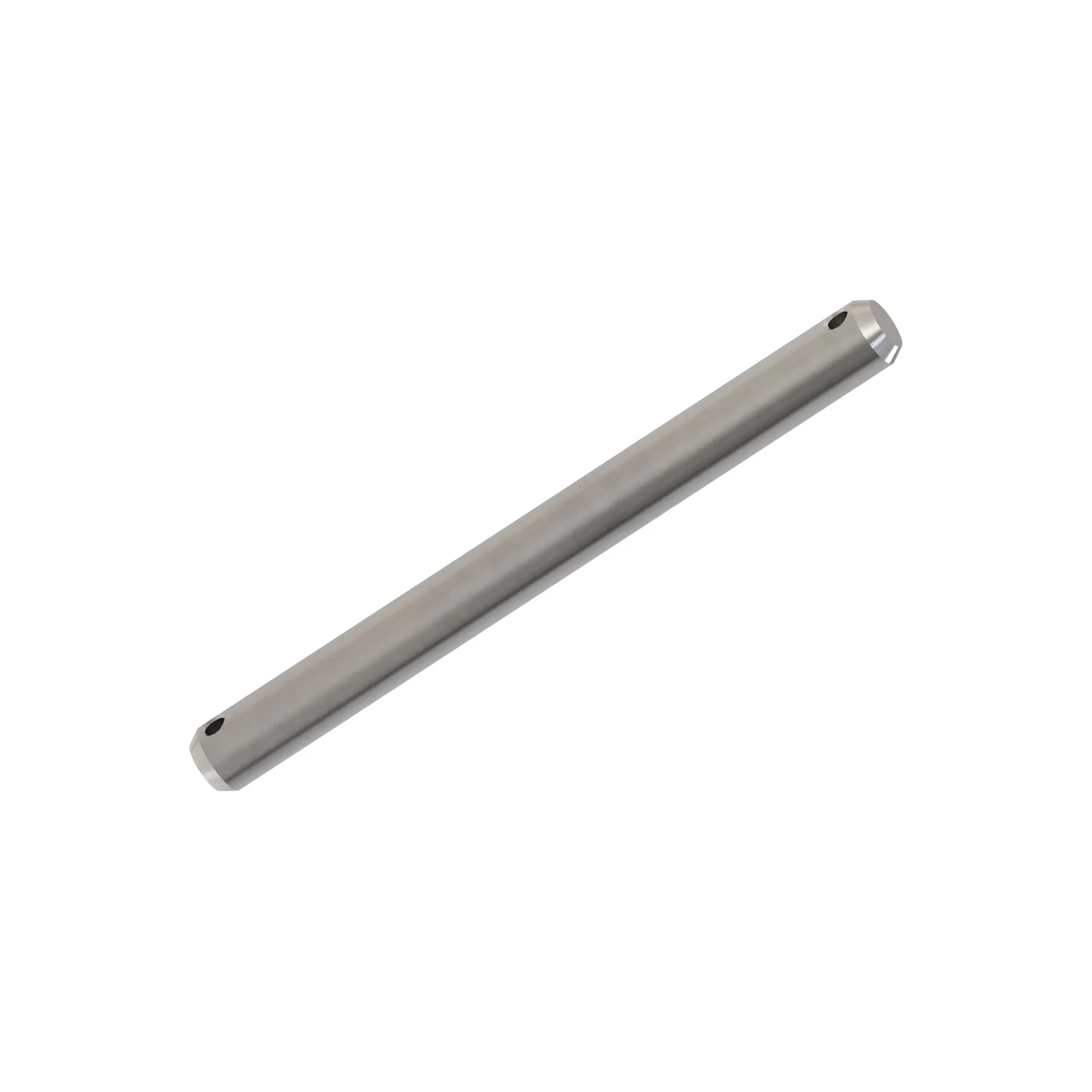

A100540: Drilled Pin

Part Number: A100540

Parts Tier: Original

Versatile drilled pin designed for securing and aligning components in various machinery applications
Key specs: 355 mm overall length, 31.75 mm diameter, 325 mm between holes, 15 mm from hole to end, 10.15 mm hole diameter
Additional specs: 2 mm point/chamfer length for precise fitting and alignment
Made from high quality general steel for durability and strength
Features a heat treated and plated finish for enhanced wear resistance and longevity

Product Dimensions

Weight

4.75 lb

Height

1.2 in

Length

14 in

Specifications

Material

Carbon Steel

Body Diameter

31.75 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

1910
1910 250L PRECISION UPGRADES
1910 250T PRECISION UPGRADES
1910 270L PRECISION UPGRADES
1910 270T PRECISION UPGRADES
1910 340T PRECISION UPGRADES
1910 350L PRECISION UPGRADES
1910 350T PRECISION UPGRADES
1910 430L PRECISION UPGRADES
1910 430T PRECISION UPGRADES
1910 550T PRECISION UPGRADES
N536C
