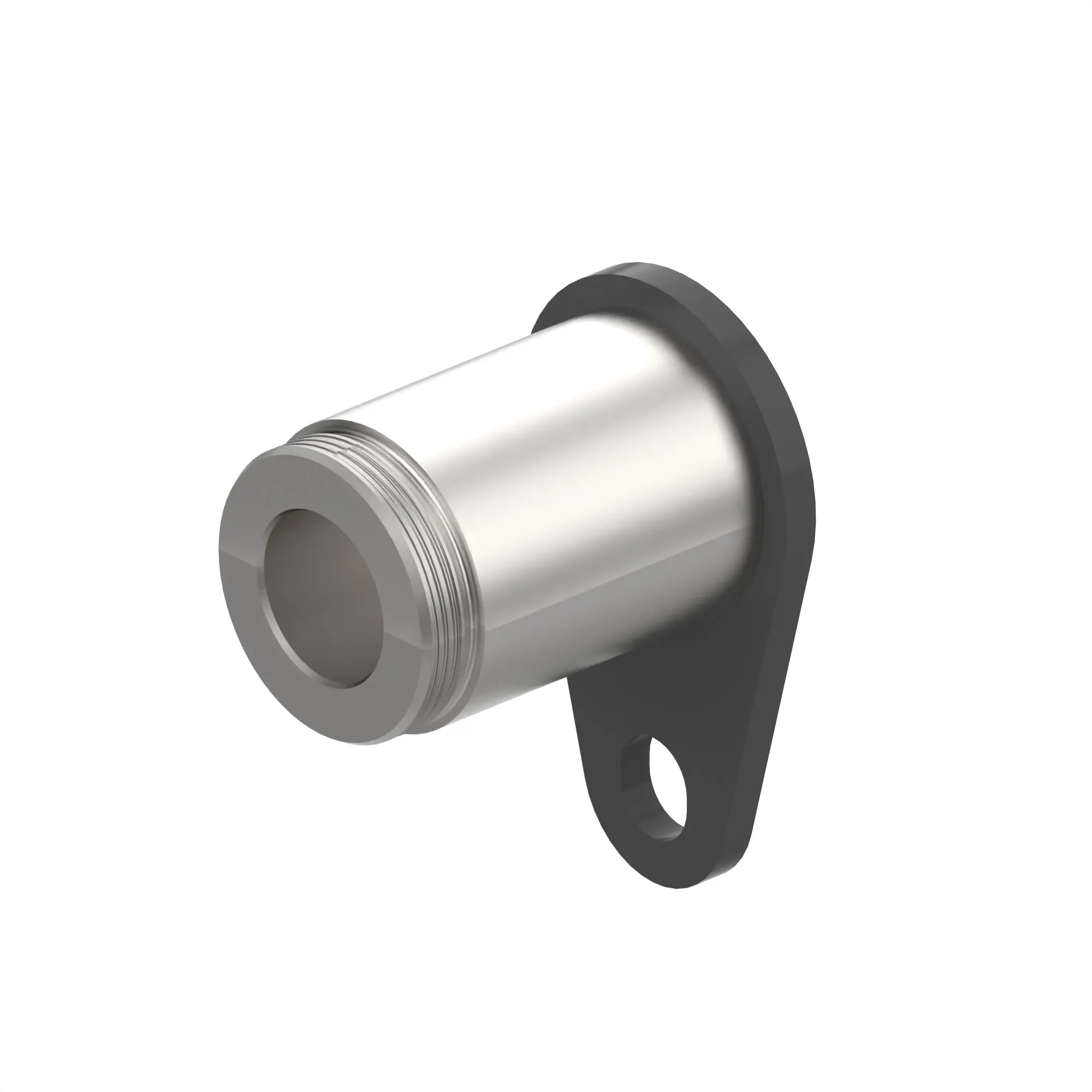

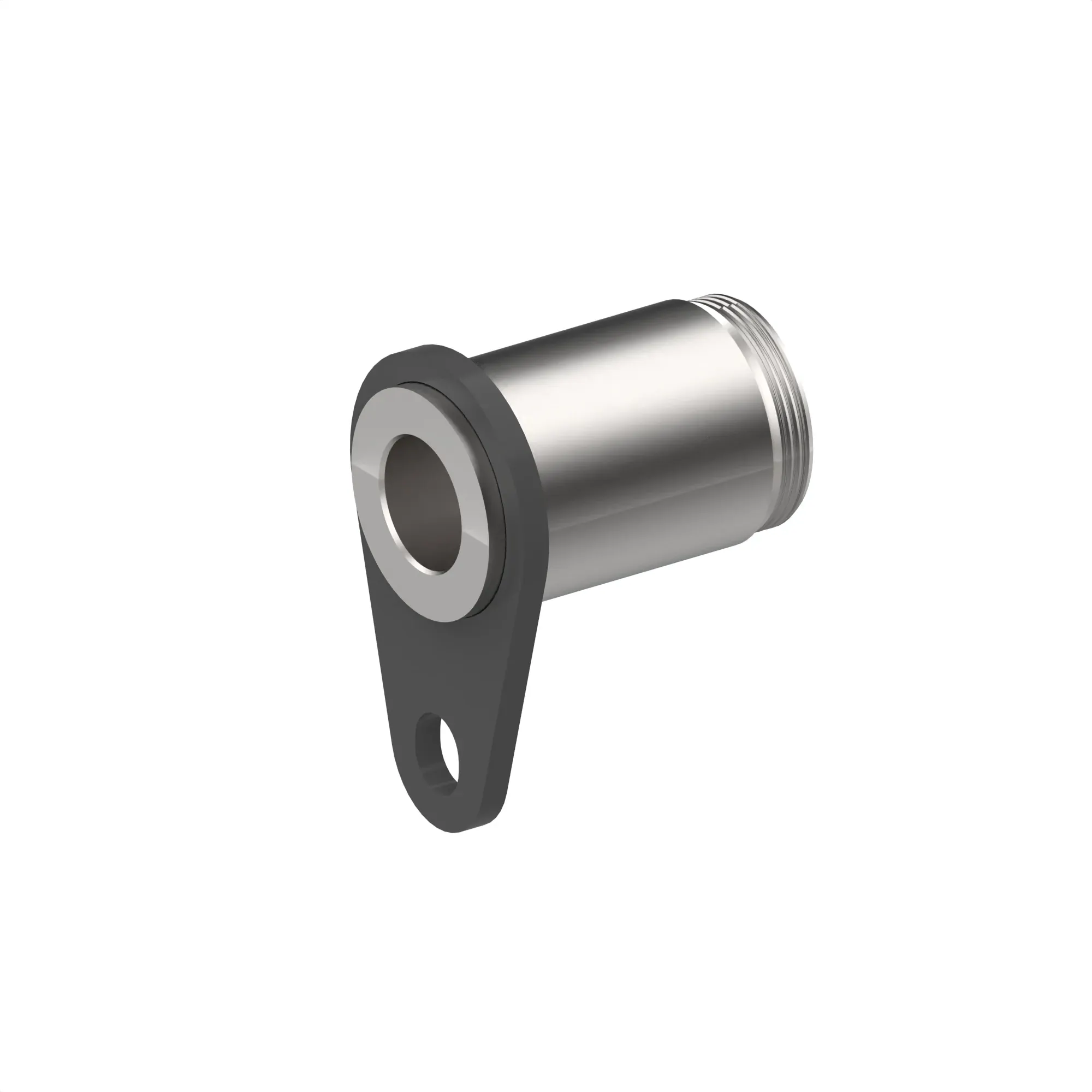

F698869: Pivot Pin

Part Number: F698869

Parts Tier: Original

Designed as a versatile pin for various machinery applications, ensuring secure and reliable connections
Features a 100 mm (3.94 in) pin diameter, 30 mm (1.18 in) size, and a 95 mm (3.74 in) thread size for robust performance
Includes a 19 mm (3/4 in) thread length and 114 mm (4 1/2 in) total length, suitable for precise installations
Made from high quality material for enhanced durability and long-lasting use
Finished with a painted coating to resist corrosion and wear

Product Details

Product Dimensions

Weight

15.933 lb

Height

4.8 in

Width

6.2 in

Length

7.9 in

Specifications

Body Diameter

100 mm

Length

114 mm

Compatible Equipment

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

1170G
CH6
