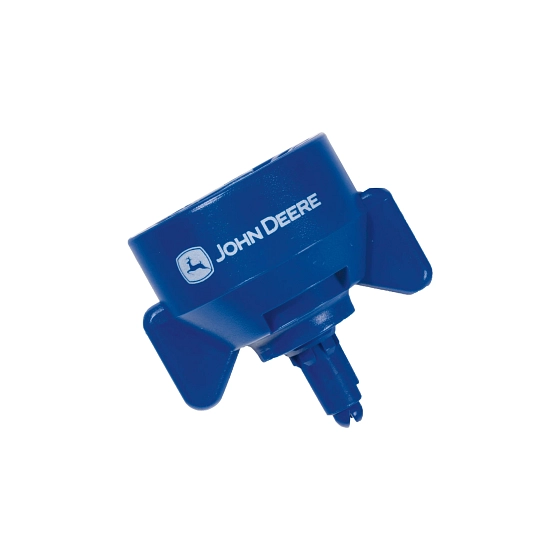

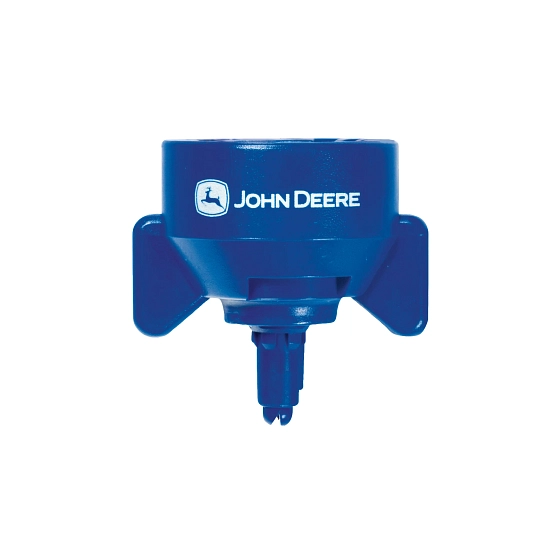

PSLDAQ1003: Low-Drift Air (LDA) Nozzle, Size 03
Part Number: PSLDAQ1003
- Online Nozzle Calculator: www.deere.com/en/sprayers/nozzle-selector
- Speed-Optimized Spray Incline: The nozzle's spray incline is optimized for speed, allowing for more uniform coverage across the sprayed area
- Quick Change Nozzle Assembly: The assembly includes a tip, cap, and gasket for easy installation and replacement
- Includes: PSLDA1003 - Tip, PS90003 - Cap, PM200040-1 - Cap Gasket (EPDM), PM200040V1 - Cap Gasket (Viton)
- Compatible with conventional spraying
- The Low-Drift Air (LDA) spray nozzle is designed to provide uniform coverage of post-emerge plant health protectants and contact herbicides while minimizing drift. It maintains a steady exchange between droplet and spray pressure, ensuring effective application.
- Droplet Sizes: Medium, coarse, very coarse, extremely coarse, and ultra coarse
- Spray Pattern: Tapered flat fan
- Flow Rates: At 2.76 bar (40 psi), size 03 provides 1.14 L/min (0.3 gpm)
Product Dimensions
Weight
0.015 kg
Height
6.477 cm
Width
10.541 cm
Length
12.827 cm
